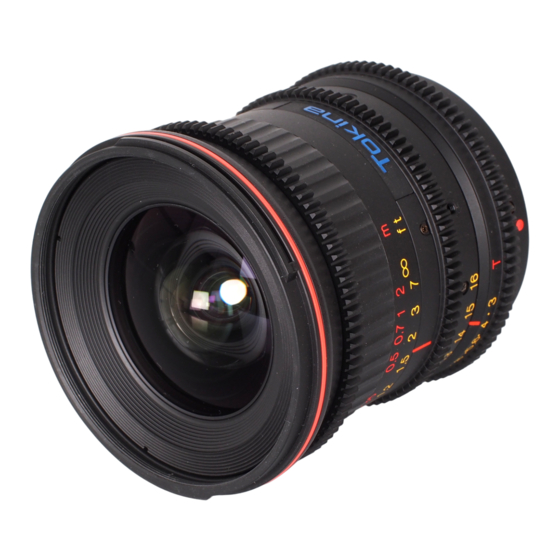

Tokina Cinema ATX 11-16mm Instruction Manual

Following symbols represent danger and are for your safety.
where there is a risk causing death or severe
injury to all those who use this equipment by
not conforming to these instructons.
Warning

For Your Safety

Warning
Do not look at the sun through the lens or
through the lens mounted on a camera.
Retinal damage and/or blindness may occur.
Keep out of the reach of children. The lens is
heavy and could cause injury if it falls on a
small child. Also, the lens strap is also a
choking hazard. If the strap becomes wrapped
around the neck suffocation may occur.
Caution
Be sure to mount the lens securely to the
camera and confirm that the lens is locked
into place before use. If not the lens could
fall off the camera causing damage or injury.
Do not leave the lens in direct sunlight where
it may condense the light and start a fire.
Do not look at the sun or other intense light
sources through the lens or through the lens
mounted on a camera. Retinal damage
and/or blindness may occur.

Description of Parts

1. 2
1.5
2
3
0. 35
0.5
0.7
1 2
2 2
1 6
11
8
5.6
4

Technical Data of Tokina 11-16 Cinema Lens

・Lens structure
・MTF GRAPH
f=11mm f=16mm
100 100
(%) (%)
50 50
0.00 5 10 (mm) 0.00
Distance from Image Center Distance from Image Center
where there is a risk causing injury or property
damage to all those who use this equipment
by not conforming to these instructons.
Caution
For safety of lens handling
Caution
・When the lens is mounted on your camera, please
be sure to set it properly and confirm it is firmly
locked in place. If not, the lens could fall off the
camera causing damage or injury.
・The lens is a precision instrument. Handle with care
and do not drop, hit against a hard object, shake
violently or apply pressure. Otherwise, it may cause
the precision parts to malfunction.
・Be sure not to apply too much weight on the lens
when mounted on your camera. The extra weight may
cause damage to both the camera and the lens mount.
・When using a large or heavy lens, be sure to properly
support the lens and camera to avoid damaging the
mounts.
・Be sure to inspect the lens and/or take test shots
with the lens in advance of any actual shooting.
This is recommended for when the lens is new and if
the lens has been in storage for a long time.
・Do not remodel or convert the lens. This may cause
malfunction for both the camera and lens . Repair
for the altered lens may void manufacturer's
warranted service. Remove all dust, dirt, sand,
water, harmful gas and saline matter from the lens.
Be sure not to use organic solvents such as paint
thinner or benzin for cleaning.
❶
Manual Focusing Ring
❷
Focus Distance Scale (ft and m)
❸
Focus Distance Index
❹
Zoom Ring
❺
Focal Length Scale
❻
7 f t
Zoom/Diaphragm Index
∞
m
❼
Diaphragm Scale
❽
Diaphragm Ring
❾
EF or Micro Four Thirds Mount
16
12 13 14 15
11
Insert Holes for Zoom Pins (6 holes)
3 T
・Performance Table
Mount
Canon EF
Focal Distance
SD Glass FK01 Zoom Ratio
SD Glass FK03 Optical Structure 11 groups/13 elements
Aspherical Lens Sensor Size
Minimum Focus Distance
Maximum Macro Magnification
Zoom Mode
S : Radiation direction
M : Concentric direction
Number of Aperture Diaphragms
Depth of Field T3 – T22 (F2.8 – F22)
Filter Size
97.9mm
Overall Length
（91.7mm）
(from mount surface)
Diameter of Front Head
84mm
Maximum Diameter 84mm
5 10 (mm)
Weight 0.69kg
The illustration of the lens shown in this manual is with Canon EF mount.
Illustration shows:
Caution
To prevent damage to your lens, injury to yourself and to others, read the following safety precautions in their entirely
before using this equipment. Keep this safety instruction available where all those who use the product will read them.
Caution
・THE LENS IS NOT WATERPROOF! Do not submerge or spray
the lens with water. Water damaged lens will be impossible to
repair.
・Wipe off water droplet by using a clean dry cloth. Use the
blower to remove dirt and sand. Clean thoroughly when used
near and around the ocean. Salt water is highly corrosive.
・Any water that seeps into the lens could cause it to
malfunction.
・Refrain from using the lens in high humidity or take extra
precautions in these types of climates. In order to keep the
damage minimal and to keep the repair cost down, follow these
precautions, when shooting in such climate. Keep the lens in a
bag or a case and remove only after moving to a place of more
mild temperature. If the lens is left at temeratures over +40C or
under -10C for an extended period of time the lens body could
become deformed or the lens may malfunction.
・When the lens is attached or detached from your camera, turn
the lens to face up for better handling.
・To prevent scratches on the front and rear elements, use the
lens caps at all time when the lens is not in use.
・Avoid touching the front or rear elements with your hand to
prevent smudges and fingerprints.
・Remove fingerprints and smudges by using a lens cleaner and
disposable lens tissues. Use gentle, circular motion from the
center of the lens toward the outer edge of the lens.

How to Attach/Detach the lens

Attach/Detach the lens to/from your camera
according to the instruction in the Manual provided
with your camera.
*When attaching/detaching the lens, be careful not to drop
the lens to avoid impact damage.

How to attach the lens hood

To securely install the hood, align the
hood with the hood attachment index dot (●) on the
lens, and then turn the hood clockwise, as viewed
from the front, until a click is heard. Then, confirm the
position of the mark on the hood aligns with the
position of the hood position indicator on the lens.
I N
mark
●
Micro
Four Thirds
11-16mm
I N
1.455
Super 35mm
0.35m (1.15ft)
1 : 11.6
Rotary Zoom
Hood attachment index (on the lens)
9
Before attaching the hood
77mm
120.7mm

Focusing

（116.5mm）
This is a manual focus lens only. Focus by turning
84mm
the focus ring until the image is in focus or set the
84mm
desired focus distance on the distance scale.
0.78kg
11-16 mm
In st ruc t io n Man u al
1. 2
1.5
2
3 7 f t
0. 35 ∞
0. 5
0.7
1 2 m
16
12 13 14 15
11
2 2
1 6
11
8
5.6
4 3
Prohibition

How to use Zoom Pins

Screw on the supplied blue zoom pin into any hole (6
in zoom ring), and you can operate focusing and
zooming easily.
1. 2
1.5
2
3
7
0. 35
0.5
0.7
1 2
IN
mark on the
●
2 2
1 6
11
8
5.6
4
Use care when screwing on the zoom pin.
The pin must be aligned straight with the
corresponding holes. If not, the threaded hole
could get stripped or damaged.
IN

Exposure Modes

After the hood is securely fixed
For the exposure mode settings, follow the instructions
in the manual provided with your camera.
*Specifications of the lens mount cannot be modified.
*The external appearance, specifications shown in this
catalog and accessories may be changed without any
advance notice.
Instructions
f t
∞
m
16
12 13 14 15
11
3 T
