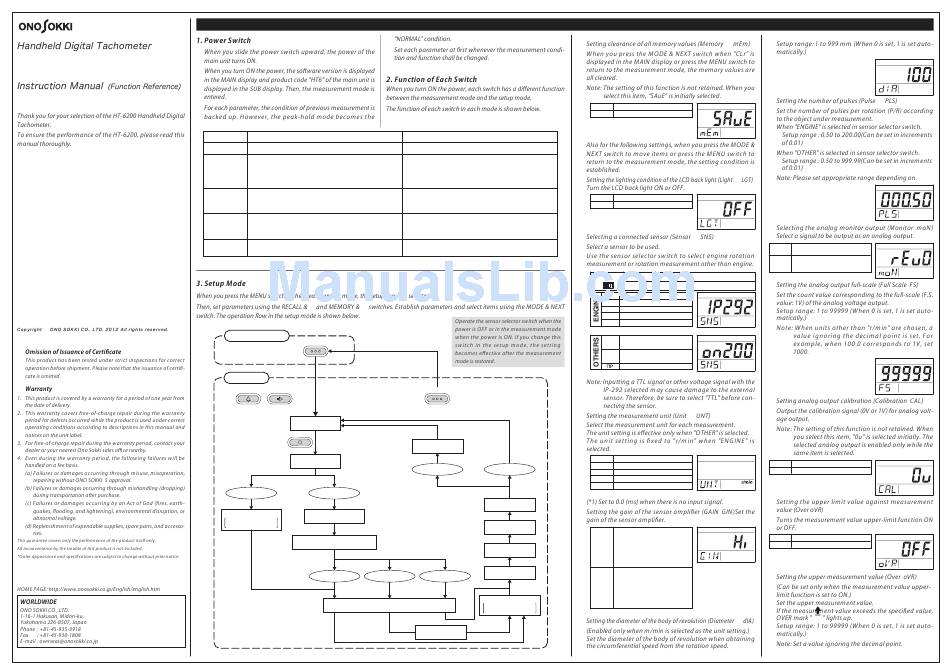

Ono Sokki HT-6200 Instruction Manual

①
HT-6200
②
③
Ⓒ
■
■
ﾕ
B00002315 / IM12060504(1.0) 12X(MS)0XX

Functions and Operations

Measurement Mode
Power switch Ends the measurement mode and then turns OFF the power.
RECALL & Recalls the memory value in sequence.
↑ switch
MENU switch Selects the setup mode.
When pressed during memory value call, returns to the
measurement mode.
Memorizes up to 20 measurement values present when
MEMORY &
pressed.
→ switch
MODE & Changes the peak-hold mode (MAX, MIN and normal) in
order.
NEXT switch
↑ →
Measurement mode
MENU
Setup mode
RECALL MEMORY
&
Set each parameter.
MEMORY (MEM)
[ SAVE : CLR ]
MODE
Establish and
move items.
NEXT
BACK-LIGHT (LGT)
[ ON : OFF ]
Sensor
When ENGINE is When OTHERS is
selected selected
selector switch
SENSOR-SEL (SNS) SENSOR-SEL (SNS)
IP-292 : IP-296 : IP-300 [ OM-200 : TTL : MP ]
OM-200 : VP
UNIT-SEL (UNT)
[ r/min : ms : r/s : m/min : COUNT ]
When r/min or When m/min
r/s is selected is selected
GAIN-SEL (GIN)
[ HI : LO ]
④
Setup Mode
Cancels the current setting and then turns OFF the power.
Changes the selection of the current setting.
During numerical parameter setting, increments the
numerical value of the relevant digit.
When 9, returns to 0.
Establishes the current setting condition and then
change to the measurement mode.
During numerical parameter setting, moves the setting
cursor to the right. When it is at the least significant digit,
returns to the most significant digit.
Establishes the current setting condition and then moves
to the next setting.
MENU
End the setup mode any time.
OVER-SET (OVR)
[ 1〜99999 ]
When ON is selected When OFF is selected
OVER-SEL (OVR)
[ ON : OFF ]
CAL-SEL (CAL)
[ 0 V : 1 V ]
ANALOG-FS-SET (FS)
[ 1〜99999 ]
MONITOR-SEL (MON)
When ms or COUNT
[ REVO : SIG ]
is selected
PULSE-SET (PLS)
ENGINE : 0.50〜200.00
OTHERS : 0.50〜999.99
DIAMETER-SET (DIA)
[ 1〜999 mm ]
① →
SAuE Saves the memory values.
CLr Clears all the memory values.
② →
OFF Back light OFF
ON Back light ON
* Set to "OFF" at the time of shipment.
③ →
OTHERS
OTHERS Measurement other than engine rotation
I ENGINE
ENGINE Engine rotation measurement
IP292 Select when the IP-292 is used.
IP296 Select when the IP-296 is used.
IP300 Select when the IP-3000A, IP-3100 is used.
on200 Select when the OM-1200, OM-200 is used.
UP Select when theVP-1220, VP-202 is used.
* Set to "IP296" at the time of shipment.
Select when the OM-1200,
on200
OM-200 is used.
Select when a sensor with TTL
ttL
signal output is used.
Select when the MP-9000 series is used.
* Set to "on200" at the time of shipment.
④ →
r/min Rotation speed
ms （ *1） Average period time (Decimal point position 0.0)
r/s Rotation speed (Decimal point position 0.00)
m/min Circumferential speed (Decimal point position 0.0)
COUNT Integration value (No decimal point)
* Set to "r/min" at the time of shipment.
⑤
Set the gain of the sensor amplifier to the Hi
Hi
level.Measurement is normally performed with
the Hi level setting. However, if the rotation
speed is not stable (or becomes higher than the
normal value) when, for example, disturbance
noise or a signal from other cylinders is
detected, set the gain to the Lo level.
Lo Set the gain of the sensor amplifier to
the Lo level.If the rotation speed is
not stable (or becomes lower than the
normal value) when the Lo level is
selected, the amplitude of the sensor
signal may possibly be small and
therefore set the gain to the Hi level.
* Set to "Hi" at the time of shipment.
⑥ →
* Set to "100" at the time of shipment.
⑦ →
* Set to "000.5" at the time of shipment.
⑧
Voltage output proportional to
rEuO
the rotation speed
Output for monitoring the sensor
Sig signalSignal after waveform
shaping (before pulse conversion)
* Set to "rEuO" at the time of shipment.
⑨
* Set to "99999" at the time of shipment.
⑩
0 V 0V output
1 V 1V output
⑪
OFF Measurement value upper-limit function OFF
ON Measurement value upper-limit function ON
* Set to "OFF" at the time of shipment.
⑫
