Summary of Contents for Sono Swiss SW60MOD

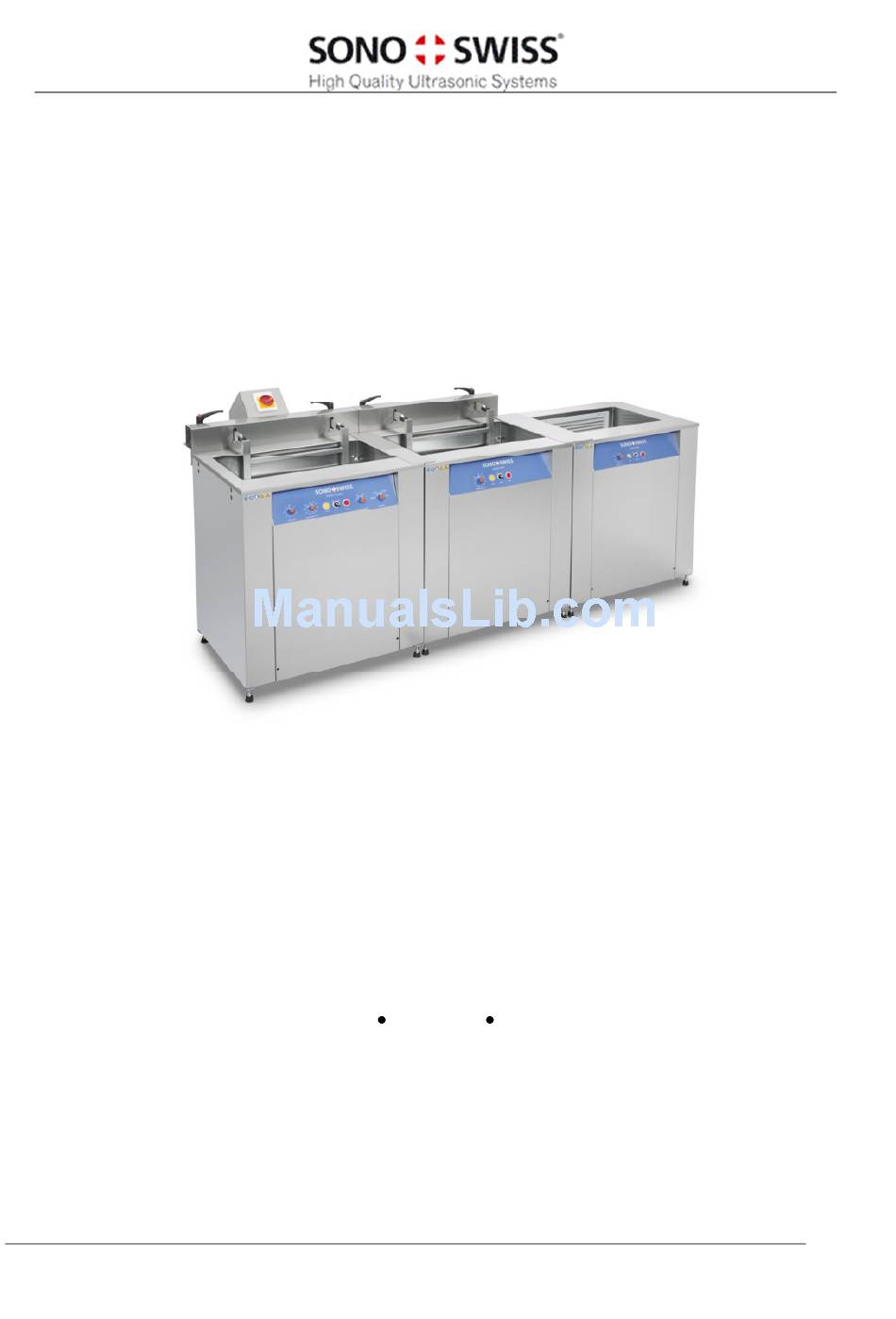

- Page 1 Operating Instructions Modular Cleaning System SW60 / 150 / 240 MOD english © Sonoswiss AG BA_Modulrange_SW60/150/240_Sonoswiss_E_08.2012...
-
Page 2: Table Of Contents
Contents Contents ..................General ................Important safety warnings............ Instructions for the use of the present manual .... Safety instructions for the use of the unit ....Interesting facts about ultrasonic cleaning ......Functioning ..............Product description .............. SW 60 / 150 / 240 Modulare Cleaning System - product features CE-conformity ............ -
Page 3: General
General General The present Operating Instruction is part of the delivered equipment. It must be ready for use at any time and remain with the unit in case of resale. This Operation Instructions is subject to technical modifications on the unit due to advanced development. -
Page 4: Safety Instructions For The Use Of The Unit
Facts of interests about Ultrasonic Cleaning Safety instructions for the use of the unit This ultrasonic cleaning system has been designed for the ultrasonic treatment of items and liquids only. It is not intended for the use in areas with potentially explosive atmosphere. Operation of the unit by authorized and instructed staff only. -
Page 5: Functioning
Facts of interests about Ultrasonic Cleaning Facts of interests about Ultrasonic Cleaning Functioning Today, cleaning by ultrasound is the most modern fine cleaning method. The electric high-frequency energy created by an ultrasonic generator is transformed into mechanical energy by piezo-electrical transducer systems and is then transmitted into the bath. This process creates millions of tiny vacuum bubbles which implode due to the variations of pressure caused by the ultrasonic activity. -
Page 6: Product Description
Product description Product description SW 60/150/240 Modular Cleaning System – Product features ultrasonic tank made of extremely cavitation-proof stainless steel (V4A) • inclined tank floor to facilitate the draining of the cleaning liquid • skimming ledge for the optional surface skimming, e.g. of oil •... -
Page 7: Ce-Conformity
Product description CE conformity The present ultrasonic cleaning unit complies with the CE marking criteria with regard to the EMC directive 2004/108/EG, and to the low voltage directive 2006/95/EG. The declaration of conformity is available from the manufacturer. RFI Statement (European Union) This is a Class A product. -
Page 8: Technical Data
Product description Technical Data SW60MOD SW150MOD SW240MOD Ultrasonic-cleaner Ultrasonic-cleaner Ultrasonic-cleaner Tank service capacity (L) Tank internal dimensions W/D/H 510 x 350 x 350 620 x 545 x 450 820 x 545 x 550 (ca. mm) Basket (accessory) internal 460 x 275 x 190... -
Page 9: Description Ultrasonic Cleaning System
Product description Description of Ultrasonic Cleaning System Image 4.7.1 Frontview of Cleaning Line (here SW60MOD) Ultrasonic cleaning unit SW 60 Cleaner B. Rinsing unit SW 60 Rinser H (optional) Dryer SW 60 (optional) Oscillation (optional) © Sonoswiss AG © Sonoswiss AG... - Page 10 Product description Description of Ultrasonic Cleaning Unit SW60 / 150 / 240 MOD Image 4.8.1 Frontview Ultrasonic Cleaner (here SW60MOD) A Operating panel to control all unit functions Descriptions see Section 4.13. B Height-adjustable feet © Sonoswiss AG © Sonoswiss AG...
-
Page 11: Description Of Ultrasonic Cleaning Tank Sw60 / 150 / 240 Mod
Product description Description Ultrasonic Cleaning Tank SW 60 / 150 / 240 MOD Fig. 4.9.1 View Ultrasonic cleaning tank SW 60 A Ultrasonic tank made of cavitation-proof stainless steel (V4A).The transducers are mounted underneath the tank bottom or as an option additionally at one side. -
Page 12: Description Of Ultrasonic Cleaning And Rinsing Tank
Product description 4.10 Description Ultrasonic Cleaning and Rinsing Tank SW 60 (optional) Fig. 4.10.1 View Rinsing tank SW 60 Rinsing tank made of cavitation-proof stainless steel (V4A). Mesh (optional) Overflow basin Heating element © Sonoswiss AG © Sonoswiss AG BA_Modulrange_SW60/100/200_Sonoswiss_E_06.2012... -
Page 13: Description Of Hot Air Dryer (Optional)
Product description 4.11 Description Hot Air Dryer (optional) Fig. 4.11.1 View Hot Air Dryer SW 60 Abb. 4.11.2 View Hot Air Dryer SW 60 Hot Air Dryer Stainless steel (V2A). Lamella for Hot Air feeding Fan motor for air intake ©... -
Page 14: Description Of Loading Basket (Optional Accessory)
Product description 4.12 Description of loading basket (optional accessory) The especially designed basket can be hold in 2 positions. Position for cleaning The basket will be hanged into the two hooks. (see fig. 4.12.1). Fig. 4.12.1 Loading basket in position for cleaning Draining position The loading basket will be hanged into the 2 hooks. -
Page 15: Operating Panel Ultrasonic Cleaner
Product description 4.13 Operation panel Ultrasonic Cleaner Fig. 4.13.1 Operation panel ultrasonic cleaner Turning knob “time” for preselecting the duration of cleaning Possible Adjustments: 1 - 15 min (in steps of 1 minute; automatic shutdown). Continuous operation ∞ for infinite operation. Shutdown has to be done manually. - Page 16 Product description 4.14 Operation panel Rinsing Unit with heating (optional) Fig. 4.14.1 Operation panel rinsing unit Turning knob for switching on the heating and selecting the temperature. Temperature range from 30° C to 80° C LED “heat” flashes yellow when heater is being activated by the turning knob „temperature“.
-
Page 17: Operating Panel Hot Air Dryer
4.15 Operation panel Hot Air Dryer Fig. 4.15.1 Operation panel Turning knob „temperature“ to adjust the heating temperature in a range of 30° C - 130° C LED “heat” flashes yellow when heater is being activated by the turning knob „temperature“. Switch “on/off“... -
Page 18: Ultrasonic Cleaning Process
Ultrasonic cleaning process Ultrasonic cleaning process Please observe the following instructions before starting the ultrasonic cleaning process. Risk of scalding by hot surfaces and cleaning liquid! Ultrasonic energy is physically transformed into heat. CAUTION The unit and the cleaning liquid in the tank heat up during ultrasonic operation even with the heating switched off. - Page 19 Ultrasonic cleaning process Cleaning process SW 60 / 150 / 240 Ultrasonic cleaner Today, cleaning by ultrasound is the most modern fine cleaning method. The electric high-frequency energy created by an ultrasonic generator is transformed into mechanical energy by piezo-electrical transducer systems and is then transmitted into the bath.
-
Page 20: Rinsing Process Sw60 / 150 / 240 Rinser
Ultrasonic cleaning process Rinsing process SW 60 / 150 / 240 Rinser By inserting the parts into the rinsing tank, the chemical residues will be rinsed. Thus, an optimal cleaning result is guaranteed. The duration of the rinsing operation depends on the amount and the mass of chemical residues on or in the parts and on the temperature of the water medium. - Page 21 Ultrasonic cleaning process Ultrasonic cleaning process Set the switch “on/off” on all devices at “on”. The LED of the Switch on the unit(s) switch flashes blue and each devices is ready to work. Ultrasonic operation To activate the ultrasound, set the desired cleaning time at the turning knob „time“.
-
Page 22: Cleaning Media
Cleaning media Cleaning media When selecting the cleaning medium please ensure that the selected medium is suitable for use in an ultrasonic cleaning bath; unsuitable media may cause damage to the ultrasonic tank, or may even lead to injuries to the operating staff. Limitations of use of cleaners containing solvents Never use flammable liquids or solvents directly in an ultrasonic cleaning tank. - Page 23 Cleaning media Limitations on aqueous cleaners Do not use aqueous cleaning media with pH values in the acid range (pH < 7) directly in the ultrasonic tank if fluoride (F¯), chloride (Cl¯) or bromide (Br¯) ions can be taken in by the removed dirt or through the cleaning chemical.
-
Page 24: Maintenance
Maintenance Maintenance Maintenance and care Pull out the mains plug before carrying out any maintenance works! ATTENTION The present unit is maintenance-free. Electrical security Check the casing and the mains cable for damage regularly in order to prevent electrical accidents. Check the ultrasonic tank for leaks: Immediately separate the unit from the mains in case of visible Check the ultrasonic... -
Page 25: Life Cycle Of The Ultrasoic Cleaner
Maintenance Life cycle of the ultrasonic cleaner The ultrasonic tank and particularly the ultrasound transmitting surfaces are wear parts. The changes on the surfaces that occur after a certain operating period are visible first as grey areas and later on as material abrasions, the so-called cavitational erosion. In order to slow down the wear and tear as far as possible we make the tanks of a special highly cavitation-proof stainless steel. -
Page 26: Putting Out Of Action And Waste Disposal
Putting out of action and waste disposal Putting out of action and waste disposal The unit can be taken to metal and electronics recycling stations or returned to the manufacturer. Manufacturer’s contact address Sonoswiss® AG Sonnenstrasse 417 CH-8262 Ramsen Telefon: +41(0)52 / 742 80 10 eMail: info@sonoswiss.ch...
