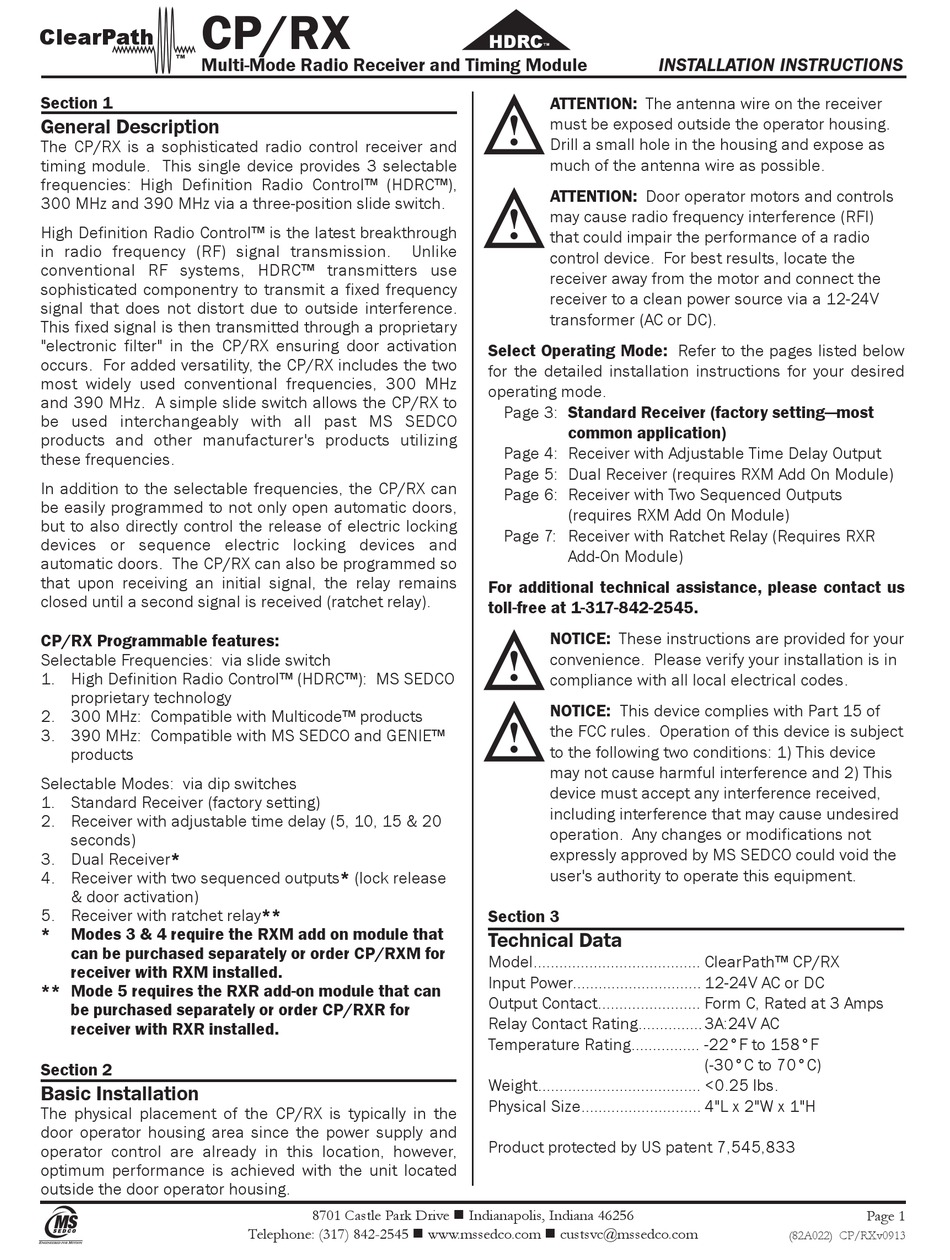

MS Sedco ClearPath HDRC CP/RX Installation Instructions Manual

CP/RX
ClearPat h
™
Multi-Mode Radio Receiver and Timing Module
Section 1

General Description

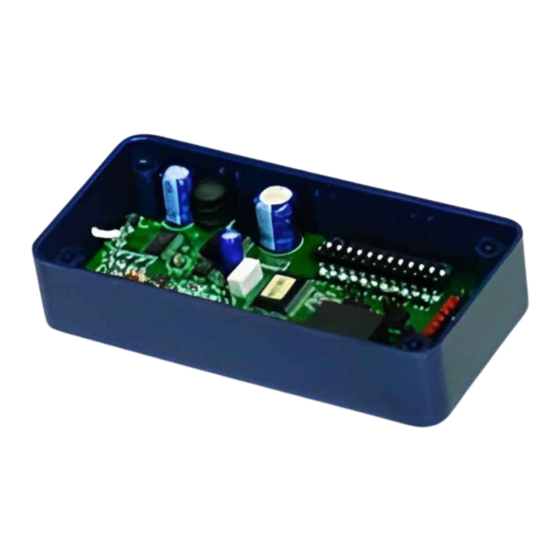

The CP/RX is a sophisticated radio control receiver and
timing module. This single device provides 3 selectable
frequencies: High Definition Radio Control™ (HDRC™),
300 MHz and 390 MHz via a three-position slide switch.
High Definition Radio Control™ is the latest breakthrough
in radio frequency (RF) signal transmission.
conventional RF systems, HDRC™ transmitters use
sophisticated componentry to transmit a fixed frequency
signal that does not distort due to outside interference.
This fixed signal is then transmitted through a proprietary
"electronic filter" in the CP/RX ensuring door activation
occurs. For added versatility, the CP/RX includes the two
most widely used conventional frequencies, 300 MHz
and 390 MHz. A simple slide switch allows the CP/RX to
be used interchangeably with all past MS SEDCO
products and other manufacturer's products utilizing
these frequencies.
In addition to the selectable frequencies, the CP/RX can
be easily programmed to not only open automatic doors,
but to also directly control the release of electric locking
devices or sequence electric locking devices and
automatic doors. The CP/RX can also be programmed so
that upon receiving an initial signal, the relay remains
closed until a second signal is received (ratchet relay).
CP/RX Programmable features:
Selectable Frequencies: via slide switch
1. High Definition Radio Control™ (HDRC™): MS SEDCO
proprietary technology
2. 300 MHz: Compatible with Multicode™ products
3. 390 MHz: Compatible with MS SEDCO and GENIE™
products
Selectable Modes: via dip switches
1. Standard Receiver (factory setting)
2. Receiver with adjustable time delay (5, 10, 15 & 20
seconds)
3. Dual Receiver*
4. Receiver with two sequenced outputs* (lock release
& door activation)
5. Receiver with ratchet relay**
* Modes 3 & 4 require the RXM add on module that
can be purchased separately or order CP/RXM for
receiver with RXM installed.
** Mode 5 requires the RXR add-on module that can
be purchased separately or order CP/RXR for
receiver with RXR installed.
Section 2
Basic Installation
The physical placement of the CP/RX is typically in the
door operator housing area since the power supply and
operator control are already in this location, however,
optimum performance is achieved with the unit located
outside the door operator housing.
Unlike
8701 Castle Park Drive  Indianapolis, Indiana 46256
Telephone: (317) 842-2545  www.mssedco.com  custsvc@mssedco.com
HDRC
™
INSTALLATION INSTRUCTIONS
ATTENTION: The antenna wire on the receiver
!
must be exposed outside the operator housing.
Drill a small hole in the housing and expose as
much of the antenna wire as possible.
ATTENTION: Door operator motors and controls
!
may cause radio frequency interference (RFI)
that could impair the performance of a radio
control device. For best results, locate the
receiver away from the motor and connect the
receiver to a clean power source via a 12-24V
transformer (AC or DC).
Select Operating Mode: Refer to the pages listed below
for the detailed installation instructions for your desired
operating mode.
Page 3: Standard Receiver (factory setting—most
common application)
Page 4: Receiver with Adjustable Time Delay Output
Page 5: Dual Receiver (requires RXM Add On Module)
Page 6: Receiver with Two Sequenced Outputs
(requires RXM Add On Module)
Page 7: Receiver with Ratchet Relay (Requires RXR
Add-On Module)
For additional technical assistance, please contact us
toll-free at 1-317-842-2545.
NOTICE: These instructions are provided for your
!
convenience. Please verify your installation is in
compliance with all local electrical codes.
NOTICE: This device complies with Part 15 of
!
the FCC rules. Operation of this device is subject
to the following two conditions: 1) This device
may not cause harmful interference and 2) This
device must accept any interference received,
including interference that may cause undesired
operation. Any changes or modifications not
expressly approved by MS SEDCO could void the
user's authority to operate this equipment.
Section 3
Technical Data
Model....................................... ClearPath™ CP/RX
Input Power.............................. 12-24V AC or DC
Output Contact........................ Form C, Rated at 3 Amps
Relay Contact Rating............... 3A:24V AC
Temperature Rating................ -22°F to 158°F
Weight...................................... <0.25 lbs.
Physical Size............................ 4"L x 2"W x 1"H
Product protected by US patent 7,545,833
(-30°C to 70°C)
Page 1
(82A022) CP/RXv0913
