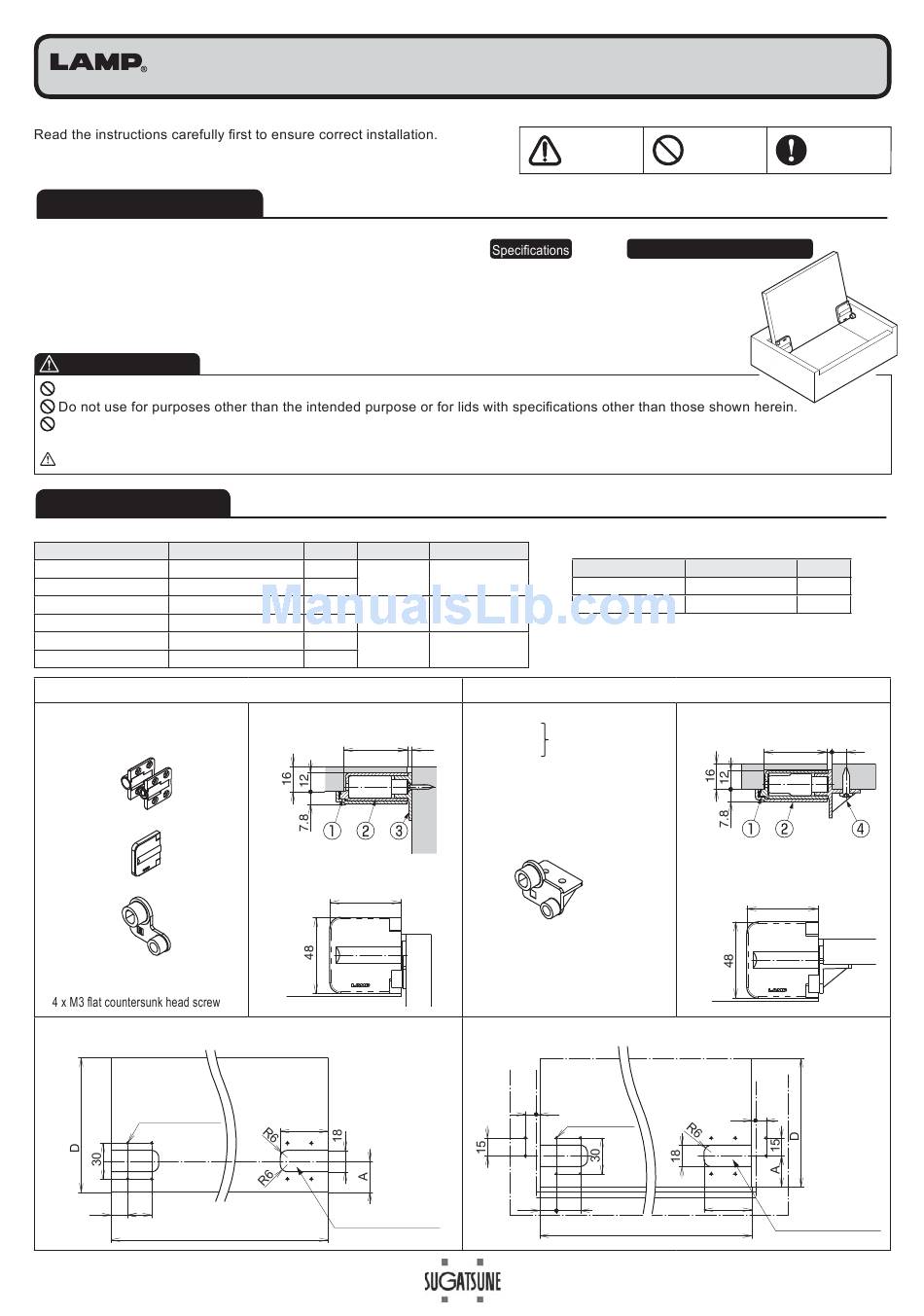

HG-JHM14 DAMPER HINGE INSTALLATION INSTRUCTIONS
Thank you for purchasing Sugatsune products.
After reading the instructions and installing the product, keep this guide
at hand for easy reference at any time.

ABOUT THE PRODUCT

●Use: dresser lids, conference table lids (for cable grommet), etc.
●Range of use: Lids of a size and weight less than the damper torque (See the
●Operating temperature range: 0-40ﾟC
●Merits:・Damper hinge equipped with Lapcon: UDH-14, Appearance of butt hinge
・Soft downward movement when released, Smooth movement when opening
・Simple appearance thanks to the cover which hides screws
・Mount hole can be drilled easily by router.
Precautions for Use
This product is for indoor use only. Do not use outside or anywhere where it will be exposed to water.
Do not use excessive force to the damper as this may result in damage.
●
If the operating temperature increases, the door movement becomes quicker. If the temperature decreases, movement becomes slower. This is not a mechanical problem.
If the released angle is less than 60 degree, damper may not work properly.

SPECIFICATIONS

○ Parts set of Side-mounted type
Order code
170-031-930 HG-JHM14-S-8BL
170-031-931 HG-JHM14-S-8WT
170-031-932 HG-JHM14-S-15BL
170-031-933 HG-JHM14-S-15WT
170-031-934 HG-JHM14-S-20BL
170-031-935 HG-JHM14-S-20WT
Side-mounted type

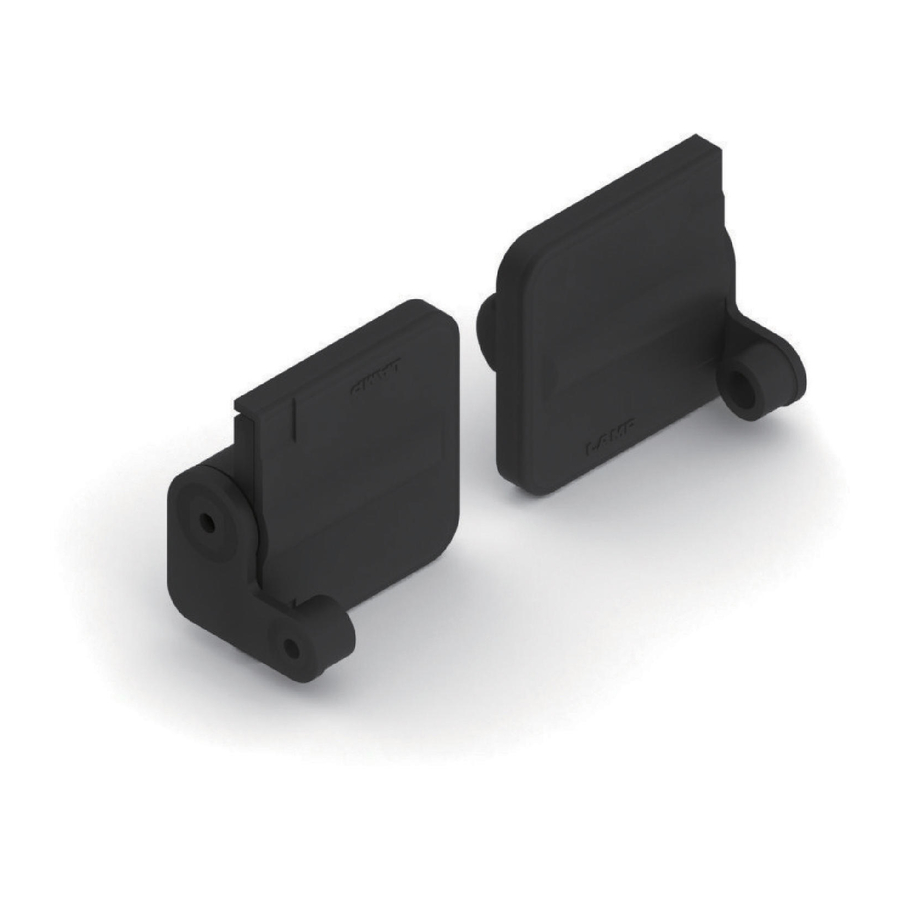

■Component Parts
①Bracket with damper ・ ・ ・ 1 pc
Bracket ・ ・ ・ 1 pc
②Cover ・ ・ ・ 2 pcs
③Side bracket ・ ・ ・ L/R 1 each
・Screws (to be supplied by the user)
8 x M4 binding head screw
Hole location of lid (Seen from rear)
Hole for screw
20
14
W = Cabinet inner width measurement – 6 mm
The possibility of injury or property damage only is assumed.
In this guide, "left" refers to the left side when looking at the cabinet from the front.
Part No. Colour Torque N·m
Black
0.5 – 0.8
White
Black
0.8 – 1.5
White
Black
1.5 – 2.0
White
Closed position (elevation view)
40
Opened position (90ﾟ)
45
40
Routing depth : 12
Meaning of symbols
Warning
Caution
table and
○ Side bracket for Rear-mounted type
(sold separately)
Colour of shaft hole
Purple
170-031-936
170-031-937
Blue
※ When making Rear-mounted type, order above parts
additionally.
Green
■Component Parts
①Bracket
3
②Cover
Use the parts for Side-mounted
type
④Side bracket ・ ・ ・ L/R 1 each
(Sold separately)
・Screws (to be supplied by the user)
12 x M4 binding head screw
Hole location of lid (Seen from rear)
9 3
Hole for screw
14 20
W = Cabinet inner width measurement – 6 mm
Prohibited
Maximum Lid Torque Calculation
Order code Part No.
UKZ14-BL
UKZ14-WT
Rear-mounted Type
Closed position (elevation view)
Opened position (90ﾟ)
45
3 9
40
Required
)
Colour
Black
White
3
40 9
Routing depth : 12
