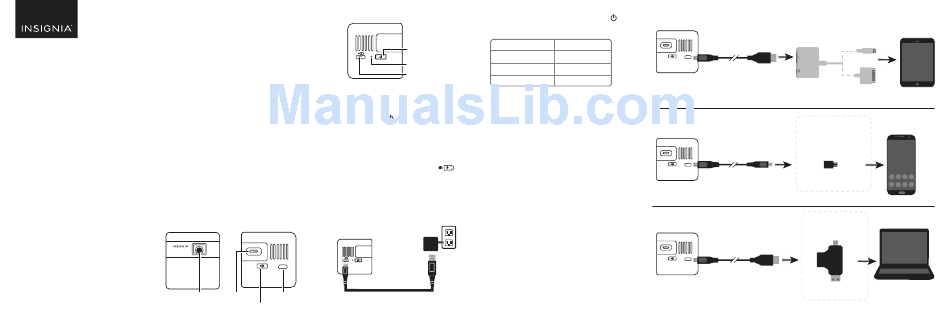

Insignia Portable Pico Projector Cube Quick Setup Manual

PACKAGE CONTENTS
• 5- to 11-pin adapter
• Micro USB to Micro HDMI cable
• HDMI to Micro HDMI cable
QUICK SETUP GUIDE
• Mini/Micro HDMI adapter
Portable Pico
• AC power adapter
• USB charging cable
Projector Cube
• Tripod adapter
• Soft carrying pouch
• Quick Setup Guide
NS-PR116 / NS-PR116-C
COMPATIBILITY
Works with MHL-compatible Android
devices and devices with micro, mini, or
standard HDMI outputs (up to 1080p).
An Apple digital AV adapter is needed
for Apple iOS devices (sold separately).
FEATURES
Front
Before using your new product, please read
Lens
these instructions to prevent any damage.
Left
CHARGING YOUR PROJECTOR
Note: Use only the included AC power adapter.
1 Press and hold
(power) to turn off
your projector.
Note: Your projector will not charge while it is
turned on.
2 Connect the USB charging cable from
the projector's charging port
the AC power adapter.
3 Plug the AC power adapter into a
power outlet. The charging indicator
lights up red while charging, then
Right
turns green when finished.
FOCUS
MHL/HDMI
Focus dial MHL/HDMI port
Volume
• To check your battery level, press
(power) briefly:
CHARGING INDICATOR BATTERY STATUS
Power
Green 80-100%
Charging indicator
Yellow 31-79%
Charging port
Red 0-30%
CONNECTING YOUR PROJECTOR
1 Select the cable (and adapter, if
needed) that is compatible with your
device's output port.
2 Connect the cable end labeled BEAM
to your projector's MHL/HDMI port.
to
3 If needed, connect an adapter to the
cable.
4 Connect the other end of the cable or
adapter to the device from which you
want to play video.
Apple® iOS Devices
Lightning® digital AV adapter
FOCUS
MHL/HDMI
BEAM
HDMI to Micro HDMI cable
30-pin digital AV adapter
Micro USB
OPTIONAL
Connect if your device has an
11-pin micro USB port.
Caution: Do not force the adapter
to fit into your device's port.
FOCUS
MHL/HDMI
PHONE
BEAM
Micro USB to
5- to 11-pin adapter
Micro HDMI cable
HDMI
OPTIONAL
Connect if your device has a
mini or micro HDMI port.
FOCUS
MHL/HDMI
BEAM
HDMI to Micro HDMI cable
Mini/Micro HDMI
adapter
(not included)
OR
(not included)
