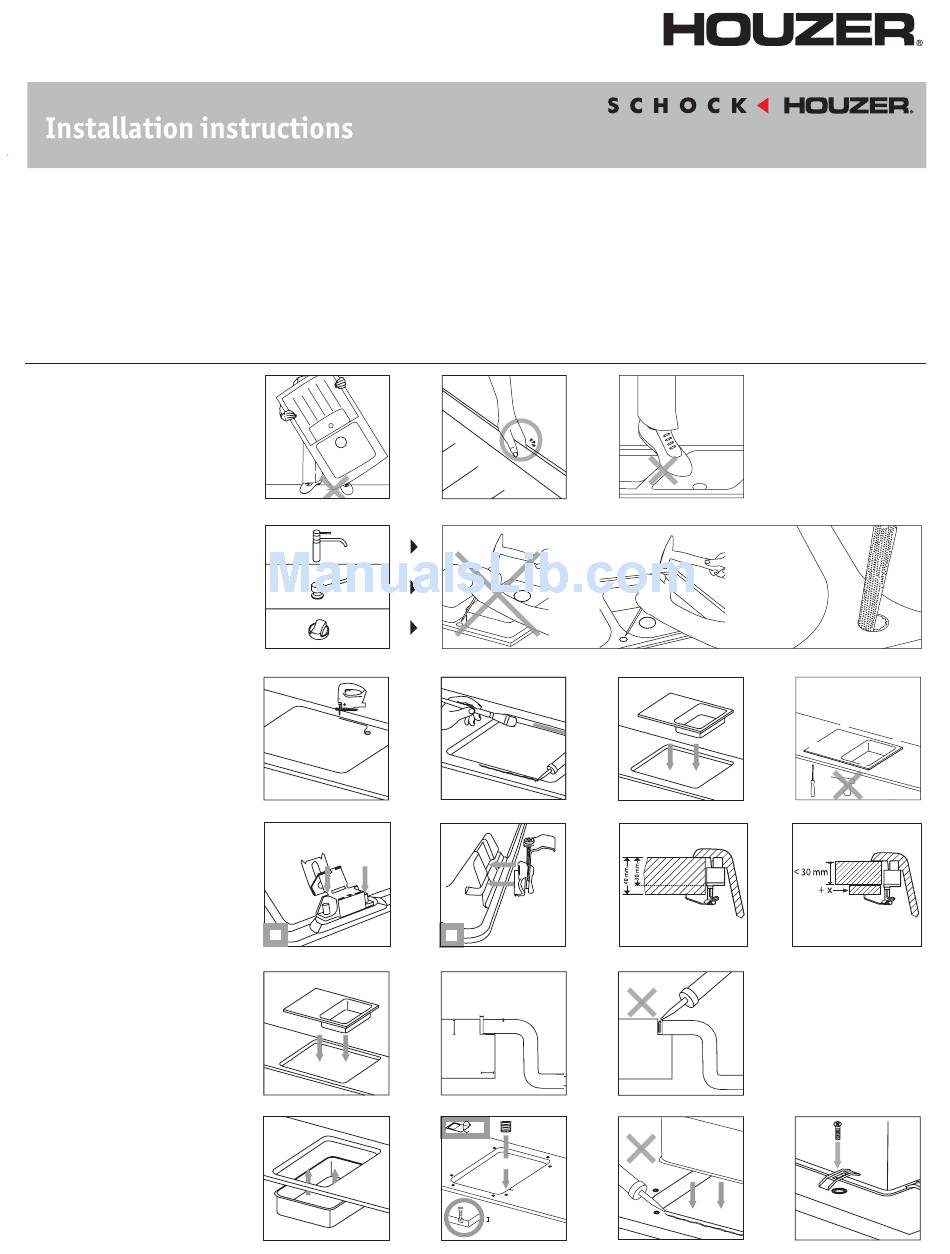

Installation Instructions

Please carefully review complete instructions before beginning installation. These instructions are for installation
with solid surface and composite material countertops. Houzer recommends a professional installer and is not
responsible for damages to the sink or countertop during installation. Warranty void for improper installation
and handling. Note: When punching out hole(s), ensure sink is supported on outer edge either by placing
in countertop cutout or securely supporting outer edge before punching out hole. Do NOT punch hole while
sink is free-standing.

Handling

Be sure to wear personal
safety devices such as
safety goggles at all
times.

Hole additions

Faucet holes are pre-
drilled from the bottom
and marked yellow on
top ledge. Tap the yellow
marker only from the top.
Topmount/Drop-in
installation
Topmount/Drop-in
installation
Mounting and fastening
clips
Flush mount
installation
Undermount
installation
*
A
A
B
*
Silicon
Silicon
B
Silicon
Epoxy
1mm
≥ 2mm
10mm
7mm
180°
Silicon
Epoxy
Epoxy
30mm
12mm
Ø12mm
www.HouzerSink.com
Granite Sinks
Ø35mm
4
6
2
1
3
5
