Merlin Instrument Company Merlin MicroShot Instruction Manual

Merlin MicroShot
InstructIon Manual
The Merlin MicroShot Injector delivers quick and reproducible
manual syringe injections for gas chromatography.
Key coMPonents

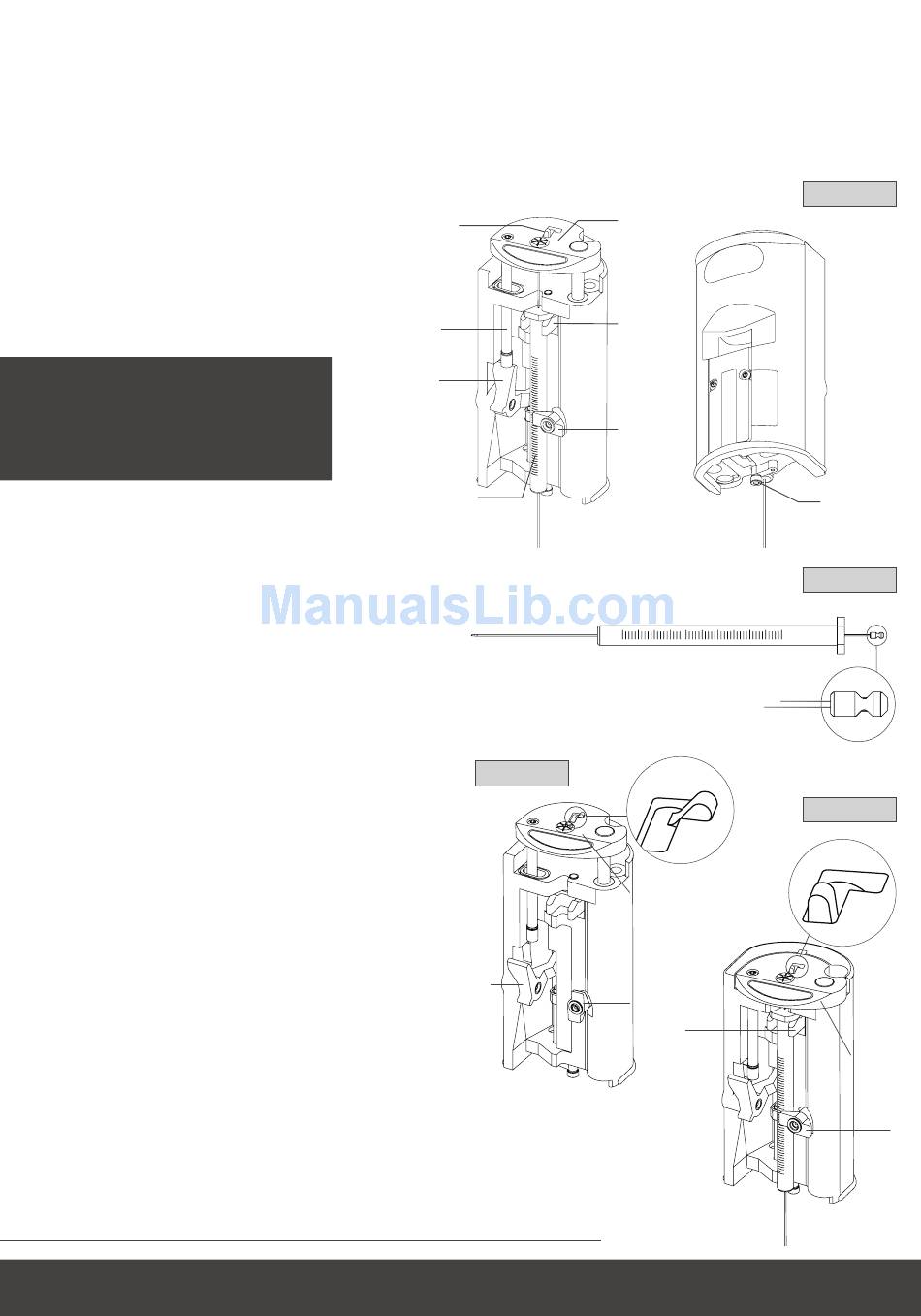

Figure 1 shows the components of the
Merlin MicroShot Injector and will be
referred to throughout this instruction manual.
CauTIon: Pumping a dry syringe can
reduce the syringe life and compromise
injector performance. Always supply
solvent to the needle tip when moving
the syringe plunger.
selectIng a syrInge
The MicroShot Injector does not come with a
syringe installed. These can be purchased from your
distribution partner.
Figure 2 shows the syringe compatibility requirements
including plunger end detail, which is important for proper
function. A 10 µL syringe will give the nominal injected volume
indicated for that MicroShot Injector and a 5 µL syringe will
give half that volume. Removable or fixed needles, 23 or 26
gauge needles can all be used with the MicroShot Injector.
InstallIng the syrInge
1. To lubricate the Syringe Plunger, load approximately
1 µL of solvent into the syringe.
2. Move the Plunger Stop to the released position.
3. Open Plunger Bolt.
4. Open Syringe Latch.
5. Raise the Plunger Slide about half way.
6. Slide the Syringe Flange under the Syringe Flange Clamp.
7. Close the Syringe Latch to secure the syringe.
8. Lower Plunger Slide until it stops.
9. Close the Plunger Bolt to secure the Syringe Plunger.
10. Rinse with solvent to check for free plunger motion.
reMovIng the syrInge
1. Open the Plunger Bolt.
2. Raise the Plunger Slide half way.
3. Open the Syringe Latch.
4. Remove the syringe.
Injector
TM
Plunger Bolt
(closed)
Volume
Rod
Plunger
Stop
(armed)
Syringe
Step 2
MERlIn InSTRuMEnT CoMpany
Half Moon Bay, Ca | newark, DE
Plunger
Slide
Syringe
Flange
Clamp
Syringe
Latch
(closed)
FRonT
5 or 10 µL Syringe
Figure 3
open
Step 3
Step 5
Step 4
Figure 1
Trigger
BaCK
Figure 2
Plunger End Detail
Figure 4
closed
Step 9
Step 6
Step 8
Step 7
