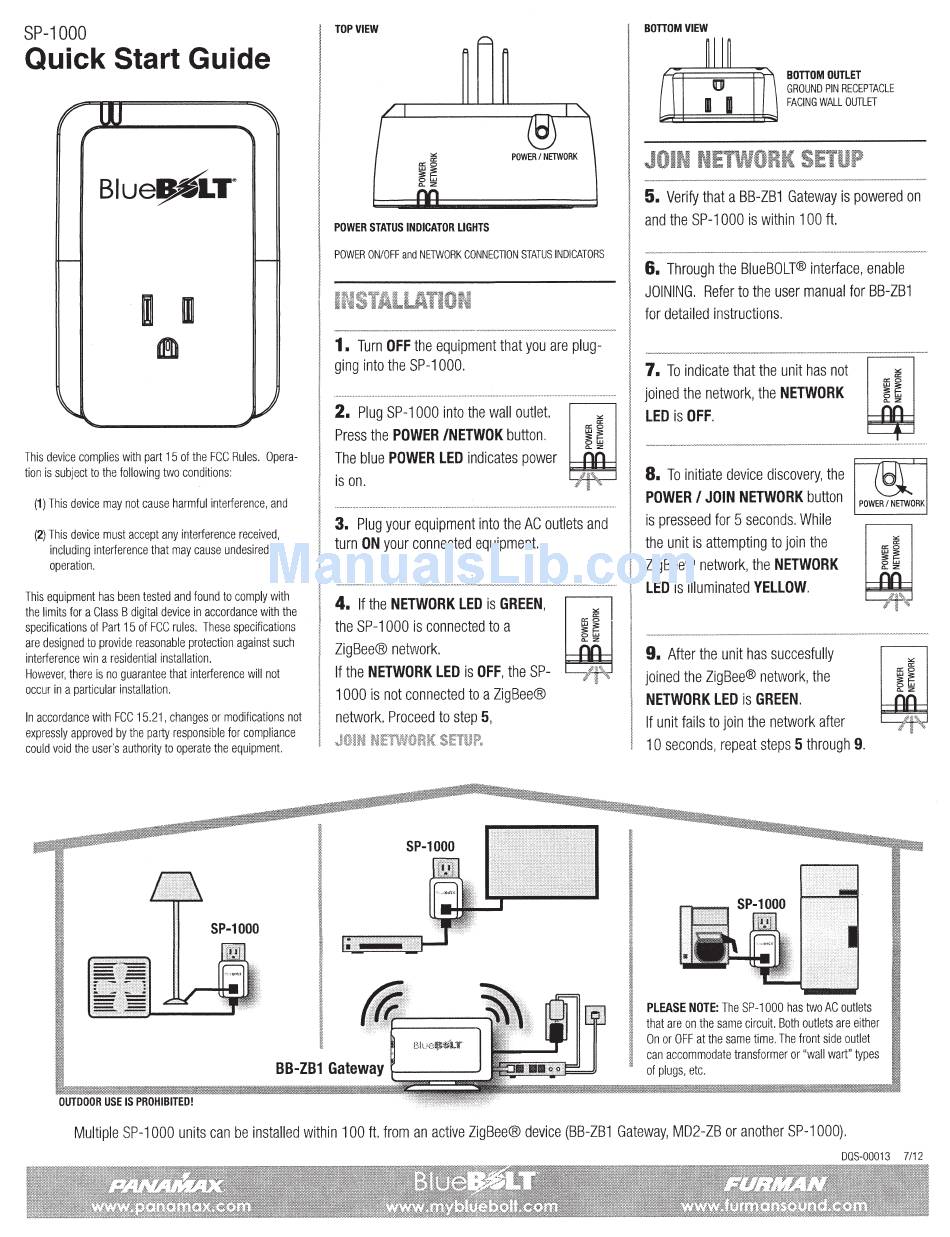

BlueBOLT SP-1000 Quick Start Manual

SP-1 000
Quick Start Guide
r w
r
Blue~T·
-
''"
)/
~---------------'
This device complies with part 15 of the FC C Rules. Opera-
tion is subject to the following two conditions:
(1)
This device m ay not cause harmful interference, and
(2)
This device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device in accordance with the
specifications of P art 15 of FCC rules. These specifications
are designed to provide reasonable protection against such
interference win a residential installation.
H owever, there is no guarantee that interference will not
occur in a particular installation.
In accordance with FCC 15.21, changes or modifications not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
OUTDOOR USE IS PROHIBITED!
TOP VIEW
POWER I NETWO RK
POWER STATUS INDICATOR LIGHTS
POWER ON/OFF and NETWORK CONNECTION STATU S IN DICATORS
I
1.
Tur~-OFF th-;;~~~~~ntth;t-~~~-~~~~~- ~ ~-- - -
1 ging into the SP
~
1 000.
1
2.
Plug SP-1 000 into the wall outlet.
Press the POWER /NETWOK button.
The blue POWER LED indicates power
is on.
3.
Plug your equipment into the AC outlets and
turn ON your connected equipment.
4.
If the NETWORK LED is GREEN,
the SP-1 000 is connected to a
ZigBee® network.
If the NETWORK LED is OFF, the SP-
1 000 is not connected to a Zig Bee®
network. Proceed to step 5,
JC!il\!
IETI!1fO~K
SEliJt',
I
I
I
I
I
BOTIOMVIEW
BOTIOM OUTLET
GRO U ND PIN RECEPTACLE
F AC ING W ALL OUTLET
JOIN NETWORK SETUP
5.
Verify that a BB-ZB1 Gateway is powered on
and the SP-1 000 is within 1 00 ft.
6.
Through the BlueBOL T® interface, enable
JOINING. Refer to the user manual for BB-ZB1
for detailed instructions.
7.
To indicate that the unit has not
joined the network, the NETWORK
LED is OFF.
8.
T o initiate device discovery, the
POWER I JOIN NETWORK button
is presseed for 5 seconds. While
the unit is attempting to join the
ZigBee® network, the NETWORK
LED is illuminated YELLOW.
9.
After the unit has succesfully
joined the ZigBee® network, the
NETWORK LED is GREEN.
If unit fails to join the network after
POWER I NETWO R K
1 0 seconds, repeat steps 5 through 9.
I
~
PLEASE NOTE: The SP-1 000 has two AC outlets
I
l~
I
that are on t11e same circuit. Both outlets are either
On or
OFF
at the same time. The front side outlet
can accommodate transformer or "wall wart" types
of plugs, etc.
Multiple SP-1 000 units can be installed within 100 ft. from an active ZigBee® device (BB-ZB1 Gateway, MD2-ZB or another SP-1 000).
DQS-00013 7/ 12
