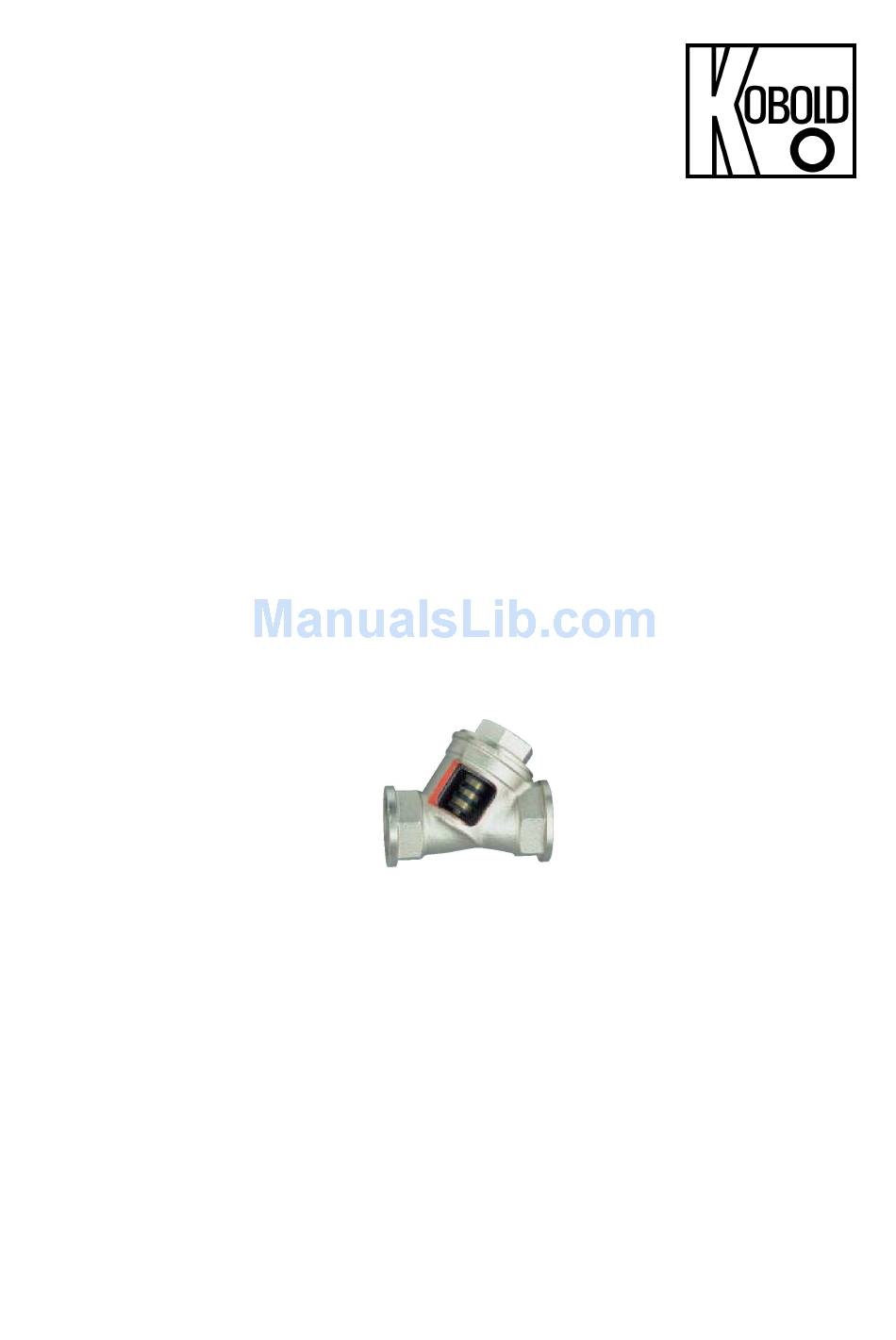

- Page 1 Operating Instructions Magnetic Filter Model: MFR-00...
-
Page 2: Table Of Contents
7. Maintenance ....................7 Cleaning of the mesh ................7 8. Technical Information ..................8 9. Order Codes ....................8 10. Dimensions ....................9 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com... -
Page 3: Note
Any use of the Magnetic Filter, model: MFR, which exceeds the manufacturer’s specification may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. MFR-00 K01/0913 page 3... -
Page 4: Operating Principle
MFR-00 5. Operating Principle KOBOLD magnetic filters are used in many applications, including central system filters, where it is necessary to protect devices from dirt and contamination. They are used to catch and remove contaminants from industrial cooling and lubrication circuits, especially where residue and sediment from assembly (such as chips from thread-cutting) and normal operation (such as scale and residue from frictional wear) can be carried along in the medium being filtered. -
Page 5: Mounting With Threaded Connection
Screw the pipes into the connection ends of valve. Strike up the pipes with pressure after that time the manufacturer of the sealing compounds pretends for harden it. Check the tightness of all connections. Y-strainer, mounting with threaded connection MFR-00 K01/0913 page 5... - Page 6 MFR-00 Y-strainer, disassemble of the bonnet page 6 MFR-00 K01/0913...
-
Page 7: Maintenance
Screw the bonnet into the body. Observe the correct placement of the seals in the bonnet and take care that there will be no pollution on the seals or the seat. Tighten the bonnet with a fit spanner. Check the tightness of all connections. Y-strainer, cleaning of the mesh MFR-00 K01/0913 page 7... -
Page 8: Technical Information
MFR-00 8. Technical Information MFR-00 (brass version) Thread connection: Female thread G ½…G 3 Nominal pressures Screw-on magnetic filter: PN 16 Max. temperature Screw-on magnetic filter: 200 °C Filter size: see table Mounting position: Cover toward bottom, note specified direction of flow... -
Page 9: 10. Dimensions
MFR-00 10. Dimensions Magnetic filter, female thread, MFR- MFR-00 K01/0913 page 9...
