USER MANUAL

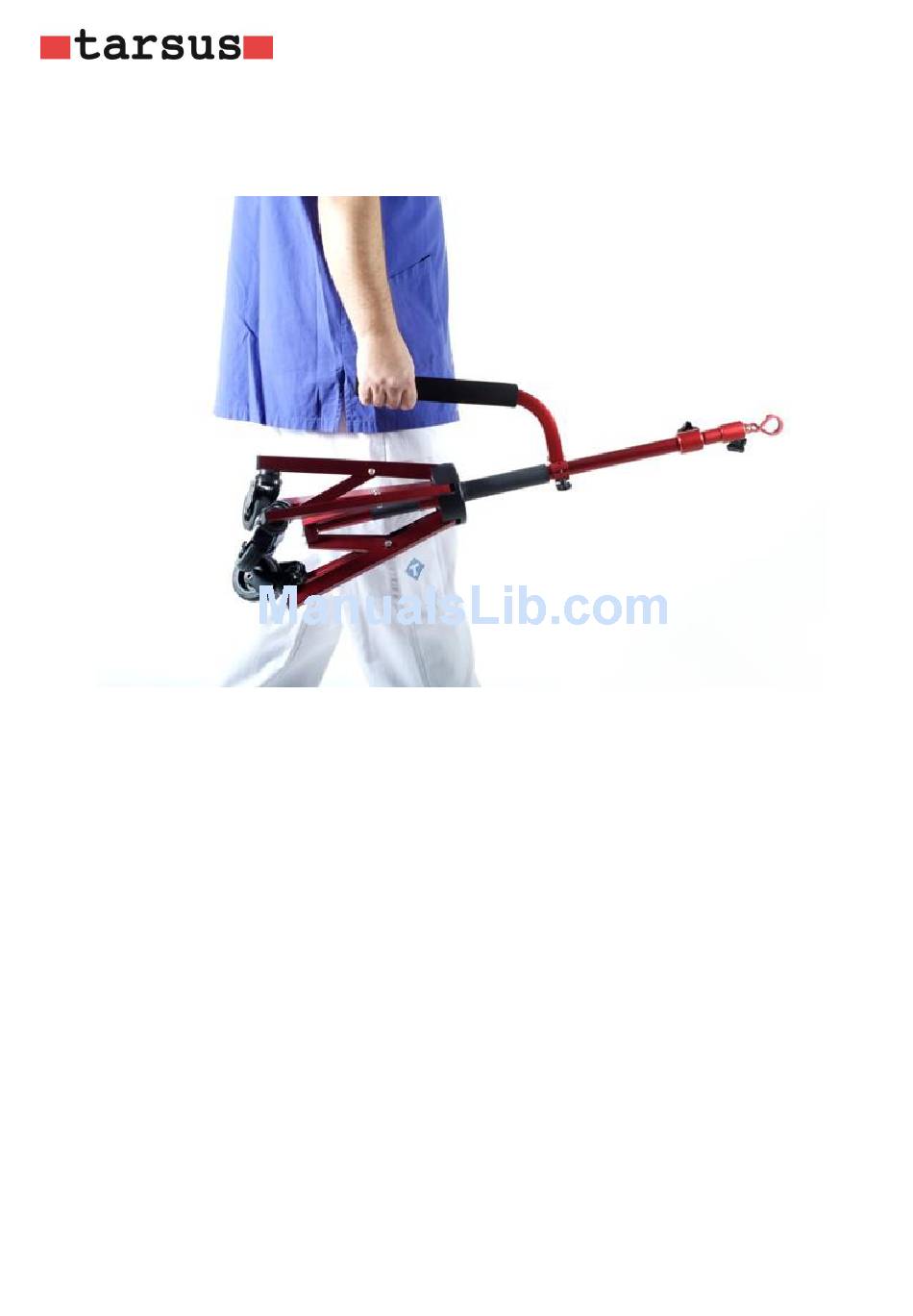

IV stand collapsible, VIOLETTA
For models
N1-080-3500
N1-080-3500-2
NOTE!
The operator must read the user manual
carefully BEFORE the product is used,
to avoid unnecessary risks to the patient and operator.
Ver 160524

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Violetta and is the answer not in the manual?

Questions and answers

Summary of Contents for Tarsus Violetta

  • Page 1 USER MANUAL IV stand collapsible, VIOLETTA For models N1-080-3500 N1-080-3500-2 NOTE! The operator must read the user manual carefully BEFORE the product is used, to avoid unnecessary risks to the patient and operator. Ver 160524...

  • Page 2: Table Of Contents

    IV stand collapsible, VIOLETTA Table of contents TABLE OF CONTENTS Foreword Warranty Important information 1. Function Description General description 2. Operation Set-up The handle Extra hooks Height adjustments To walk with the IV stand 3. Maintenance & Cleaning Routine checks...

  • Page 3: Foreword

    IV stand collapsible, VIOLETTA Foreword, warranty, information FOREWORD Welcome as the owner of a product manufactured for Tarsus by Sjöbloms Sjukvårdsutrustning AB. We hope that you will be pleased and satisfied with our quality product. If a problem should arise with this or any of our products, you are always welcome to contact us, and our service department will assist you with the expertise needed to solve the problem.

  • Page 4: Function Description

    IV stand collapsible, VIOLETTA Functional description FUNCTIONAL DESCRIPTION This product is meant for professional use in health care. It is designed to be a functional and user-friendly tool for the operator and patient. Note that the product must only be used by competent health professionals who read the user manual, for correct handling.

  • Page 5: Operation

    IV stand collapsible, VIOLETTA Operation Set-up 2. OPERATION 2.1 Set-up The IV stand is mounted at arrival, with the exception of handle or extra hooks (optional). To set up the stand, do as follows: Hold the red tube with one hand and the black section at the foot with the other.

  • Page 6: The Handle

    IV stand collapsible, VIOLETTA Operation The handle 2.2 The handle Open the knob. Place the lock as shown. Place the screw as shown. Tighten. TARSUS +46 660 842 51 info@tarsus.se...

  • Page 7: Extra Hooks

    IV stand collapsible, VIOLETTA Maintenance & Cleaning Routine check-ups 2.3 Extra hooks Remove the nuts and lift off one half of the attachment as shown. Mount the attachment as shown. Choose height of the extra hooks. TARSUS +46 660 842 51...

  • Page 8: Height Adjustments

    IV stand collapsible, VIOLETTA Operation Height adjustment 2.4 Height adjustment The IV stand is height-adjusted manually by releasing and tightening one of the black knobs. Adjust the stand to proper height and tighten the knob. NOTE! When tightening the knob, remember to not tighten the knob too hard.

  • Page 9: Maintenance & Cleaning

    IV stand collapsible, VIOLETTA Maintenance & Cleaning Routine check-ups 3. MAINTENANCE & CLEANING 3.1 Routine check-ups Routine check-ups should be made to ensure proper functionality. Important! Failure to perform the following routine can cause the patient and/or operator to be exposed to unnecessary risks and the couch may have a reduced life expectancy.

  • Page 10: Technical Specification

    IV stand collapsible, VIOLETTA Technical specifications Dimensions 4. TECHNICAL SPECIFICATIONS 4.1 Dimensions Minimum height 85 cm Maximum height 215 cm Weight The stand: 3,5 kg. Handle: 245 g. Max working load VIOLETTA 3-sectioned 5 kg drip bags + 5 kg pump. Since the pump only may be mounted onto the thickest part of the middle tube (where the handle otherwise is mounted), only one pump may be mounted onto a 3-sectioned stand today.

  • Page 11: Labels On The Product

    IV stand collapsible, VIOLETTA Technical specifications Labels on the product 4.5 Labels on the product The CE label contains the date, order number, serial number and our contact information. TARSUS +46 660 842 51 info@tarsus.se...

  • Page 12: Eu-Declaration Of Conformity

    IV stand collapsible, VIOLETTA EU-Declaration of Conformity 5. EU-DECLARATION OF CONFORMITY according to MDD 2007/42/EC including Appendix and according to CE-marking Directive 93/68/EEC Type of equipment: IV stand Manufacturer: Sjöbloms Sjukvårdsutrustning AB Trademark: Tarsus Model: N1-080-3500 Product reg nr. 79225...
  • Page 13 IV stand collapsible, VIOLETTA Contact Information 6. CONTACT INFORMATION TARSUS Myrängsvägen 8 891 50 Örnsköldsvik Sweden Tel: +46 660 105 80 Fax: +46 660 180 00 E-mail: info@tarsus.se Web page: www.tarsus.eu TARSUS +46 660 842 51 info@tarsus.se...
