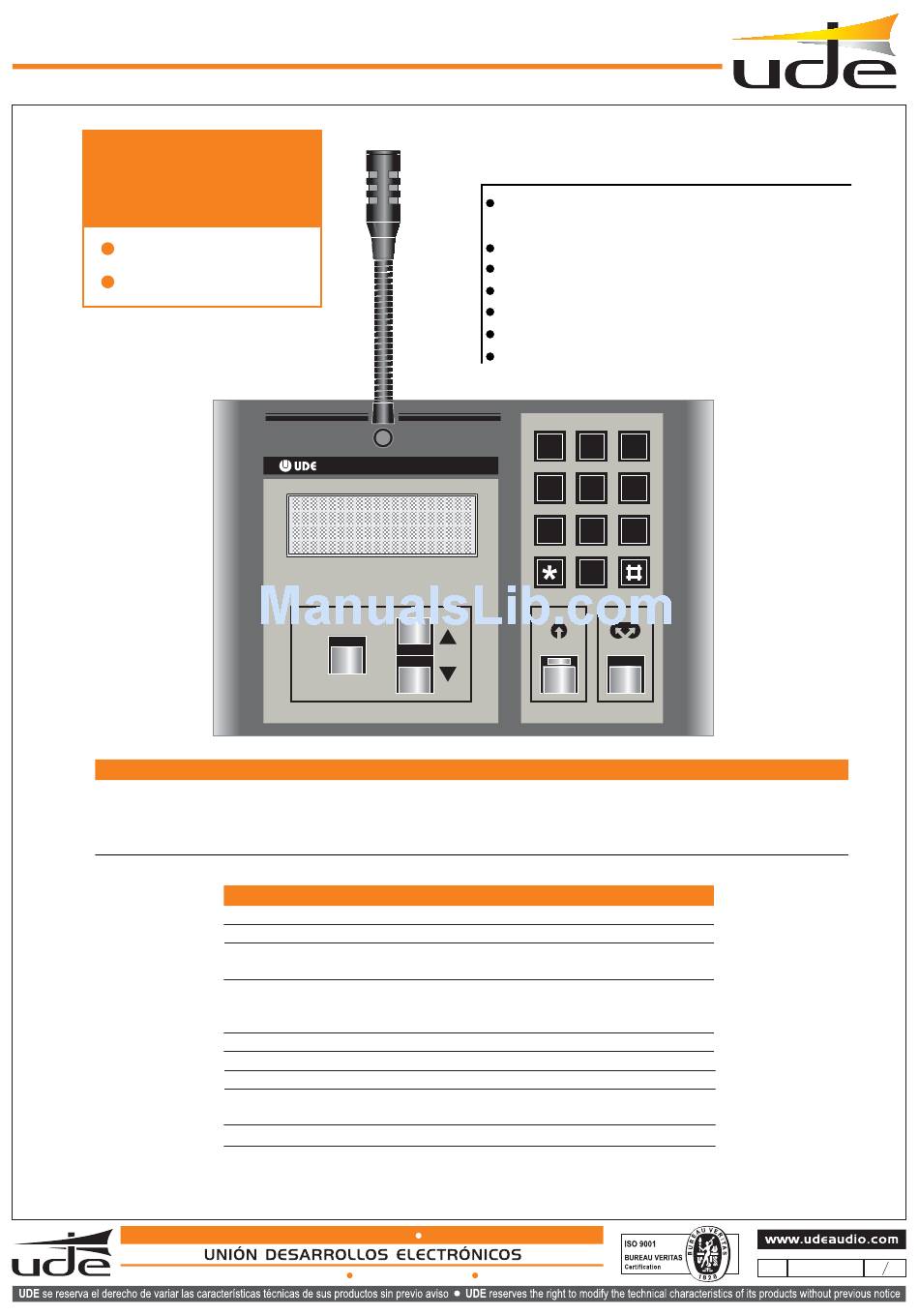

MX-101B
DIGITAL CONSOLE
QUICK USER
MANUAL
INSTALLATION
USE
MX-101B digital console is equipped with a digital keyboard, LCD display and
unidirectional paging microphone with chime pre-announcement. MX-101B digital console
was built to be connected to MX-100B matrix and BUS CAN UDE modular system.
EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM
Tel.: +34 934 772 854 / +34 609 914 787
F
TECHNICAL FEATURES
- Microphone:
- Output signal:
- Chime:
- Power source:
- Bandwidth:
- Material:
- Colour:
- Wiring:
1- MX-100B - 5 meters cable, Rj45 conector provided.
2- BUS CAN - SubD-9 conector, cable not provided.
- Weight:
ude@udeaudio.com
MAIN FUNCTIONS
Broadcasting of spoken messages with or without
chime preannouncement
Selection of zones
Selection of group zones
All call
Turn ON-OFF logical remote control
Turn ON-OFF music sources
Disable of zones
1
MX-101B
4
7
DESCRIPTION
Electrect unidirectional with compressor-limiter.
Symimetrical 0dBu / 600 ohms.
(normal our double mode)
3-External power supply
PUBLIC ADDRESS SYSTEMS
BARCELONA - SPAIN
2
3
5
6
8
9
0
2 tunes avalaible
1- MX-100B
2- BUS CAN
150 Hz to 18 kHz.
Metal casing.
Anthracite grey.
1415 g.
0
610.320A
1
4
rev.
Advertisement
Table of Contents
Related Manuals for Ude MX-101B
Summary of Contents for Ude MX-101B
-
Page 1: Main Functions
DESCRIPTION MX-101B digital console is equipped with a digital keyboard, LCD display and unidirectional paging microphone with chime pre-announcement. MX-101B digital console was built to be connected to MX-100B matrix and BUS CAN UDE modular system. TECHNICAL FEATURES - Microphone: Electrect unidirectional with compressor-limiter. - Page 2 (www.ude-audio.com) Note 3: Using the keyboard of the MX-101B console is possible to assign music inputs and routing them to outputs, on programming mode. Usually it is made using SF-101 software or matrix MX-100. Number of console is not used with matrix.
- Page 3 Press any key to exit from screen saver. 8.- Others sub-menus: (9, 10, 11, 13). They are not used for console installation directly. They are used to check some information of MX-101B console or set up menu. Read user manual. Note 6: Indicates use mode 2 “sliding zones”...
- Page 4 MX-101B MICROPHONE ALPHANUMERIC DISPLAY ALPHANUMERIC KEYBOARD CANCELATION KEY MX-101B VALIDATION KEY KEY “TALK” KEY “ALL CALL” UP-DOWN KEYS MULTIFUCTION KEY CONTRAST MICROPHONE CHIME CONNECTION MX-100B S8 ON= SET CHIME CHIME DOBLE NORMAL PASSWORD: 1, 2, 3, 4 REPEAT 610.320A rev.
