- Page 1 User Manual Manual del usuario 6-IN-1 PROGRAMMABLE ELECTRIC PRESSURE COOKER OLLA DE PRESIÓN ELÉCTRICA Y PROGRAMABLE 6 EN 1 English ..06 Español ..29 ID: #07177...
-
Page 2: Table Of Contents
Contents Overview ................3 Use ..................4 Package contents/device parts ..........6 General information ............7 Reading and storing the user manual ........7 Explanation of symbols ............7 Safety ...................8 Proper use ................. 8 Safety instructions ..............8 First use ................16 Checking the pressure cooker and package contents ..16 Basic cleaning................ -
Page 3: Overview
Tenderize Rice /Beans Oatmeal Soup Meat Fish Chicken Steam Slow Sauté Cooking... -
Page 6: Package Contents/Device Parts
Package contents/device parts Cooking mode buttons* Safety valve (with indicator lights) Pressure regulator Pressure symbol Silicone sealing ring Steam release symbol Steel plate Pressure regulator cover Metal peg Safety valve sealing ring Center post Base unit Silicone washer Control panel *Cooking mode buttons include: Heating plate (inside) Rice... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 6-in-1 programmable electric pressure cooker (hereafter referred to as the “pressure cooker”), and contains important information on setup and handling. Before using the pressure cooker, read the user manual carefully. This particularly applies to the safety instructions. -
Page 8: Safety
Safety Safety Proper use The pressure cooker is exclusively designed for quick and slow cooking. It is only intended for private use and not suitable for commercial purposes. The pressure cooker is not a toy for children. Only use the pressure cooker as described in this user manual. Any other use is considered improper and may result in personal injury or damage to property. - Page 9 Safety − Only connect the pressure cooker if the line voltage of the outlet corresponds to the data on the rating plate. − Only connect the pressure cooker to an easily accessible outlet so that you can quickly disconnect it from the power supply in the event of a problem.
- Page 10 Safety − Never move, pull, or carry the pressure cooker by its power cord. − Keep the pressure cooker and power cord away from open flames and hot surfaces. − Lay the power cord so that it does not pose a tripping hazard. −...
- Page 11 Safety − Longer detachable power-supply cords are available and may be used if care is exercised in their use. − If a longer detachable power-supply cord is used: (1) The marked electrical rating of the cord set should be at least as great as the electrical rating of the appliance;...
- Page 12 Safety − Make sure that children do not play with the plastic wrapping. They may get caught in it when playing and suffocate. WARNING! Risk of injury! If you do not use the pressure cooker properly, there is an increased risk of injury. −...
- Page 13 Safety − NEVER ATTEMPT TO OPEN THE LID WHEN THE PRESSURE COOKER IS UNDER PRESSURE. Never use force to open the pressure cooker. Do not open it until you have made sure that the pressure inside has been reduced completely. Read the instructions in the user manual.
- Page 14 Safety − Replace parts showing signs of wear regularly. Parts that are clearly discolored, have split or show other signs of damage or do not fit correctly must be replaced with original spare parts. − Use only original spare parts. It is important to use only pots and lids of the same model.
- Page 15 Safety NOTICE! Risk of damage! Improper handling of the pressure cooker may result in damage. − Do not use metal utensils as they will scratch the premium non-stick coating on the pot. Use the heat resistant plastic utensil provided or use a wooden spoon. −...
-
Page 16: First Use
First use First use Checking the pressure cooker and package contents NOTICE! Risk of damage! If you are not cautious when opening the packaging with a sharp knife or other pointed object, you may quickly damage the pressure cooker. − For this reason, be very careful when opening it. 1. -
Page 17: Safety Devices
Safety devices Safety devices The pressure cooker is equipped with the following safety devices for safe cooking. Safety valve The safety valve checks the inside pressure of the pressure cooker. While pressure is building up, the safety valve pops up and locks the lid . -
Page 18: Sautéing And Searing
Cooking with the pressure cooker − Cooking under pressure raises the temperature of the liquid and steam inside the pressure cooker well above boiling point. This method of cooking is saving you both time (foods cook up to 70 % faster) and money (less energy is used). Besides, more vitamins and minerals in the food are retained and natural flavors are enhanced. -
Page 19: Using The Cooking Modes
Cooking with the pressure cooker 4. When the oil is heated up, add food to be sautéed or seared into the pot. Take care when food is added as hot oil may splatter. If cooking a large amount of meat, this should be done in small batches. 5. -
Page 20: Cooking Process
Cooking with the pressure cooker Cooking mode Default cooking time (min) Adjustable range (min) Slow Cooking** 30–600 Steam 1–45 Fish 5–15 Soup 5–45 Tenderize/ 20–60 Beans *Cooking under “Sauté” mode will raise the cooking temperature to 212–266 °F (100–130 °C). Make sure the lid is removed when using this mode. **The “Slow cooking”... -
Page 21: Removing The Lid
Cooking with the pressure cooker To stop the keep warm function, press the CANCEL button . The indicator light will turn off and the pressure cooker will return to the standby mode. 2. If you want to activate the keep warm function again, press the KEEP WARM button. -
Page 22: Preset Function (Timer)
Cooking with the pressure cooker Quick release WARNING! Burn hazard! Bursts of steam will be given off vertically from the center of the pressure regulator. − Use a tool (e.g., a long wooden spoon) or protect your hands with oven mitts to turn the pressure regulator. 1. -
Page 23: Using The Steamer
Using as a slow cooker Using the steamer (see Fig. H). 1. Put the steaming rack into the base of the pot 2. Fill the pot with water. The water surface should not touch the steaming rack. 3. Place the food to be steamed on top of the steaming rack. 4. -
Page 24: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance DANGER! Risk of electric shock! Improper handling of the pressure cooker may result in electric shock. − Always switch the pressure cooker off and unplug the power cord before cleaning. − Never immerse the base unit and power cord in water or other fluids. -
Page 25: Cleaning The Base Unit
Cleaning and maintenance − Do not put the pressure cooker in the dishwasher, as this will destroy it. Cleaning the base unit − Use a soft damp cloth to clean the outer surface of the base unit control panel , heating plate and handles . -
Page 26: Replacing The Sealing Rings
Storage Replacing the sealing rings − The silicone sealing ring , safety valve sealing ring and silicone washer are wearable parts and must be replaced if damage is found. − Contact the manufacturer for replacement using the service address specified on the warranty card. Storage −... - Page 27 Troubleshooting Problem Possible cause Solution The lid cannot be The pressure has not Allow the pressure to release opened. been fully released. naturally, or turn the pressure regulator to the “steam release” position. Use a cocktail stick to push it The safety valve down, jiggle the lid and allow has not dropped...
-
Page 28: Technical Data
Technical data Technical data Model: KY-318A Supply voltage: 120 V / 60 Hz Power: 1,000 W Capacity: Approx. 6 quart (5.65 L) Working pressure: 8.7 psi (60 kPa) Maximum allowable pressure: 200 kPa Product code: 96775 Disposal Disposing of the packaging −... - Page 29 DISTRIBUTED BY • DISTRIBUIDO POR: ALDI INC., BATAVIA, IL 60510 WWW.ALDI.US AFTER SALES SUPPORT • SERVICIO POSVENTA 96775 866-235-5029 info@customercareusa.com YEAR WARRANTY MODEL/NO DEL MODELO: AÑOS DE GARANTÍA KY–318A 08/2018...
Need help?
Do you have a question about the KY–318A and is the answer not in the manual?
Questions and answers

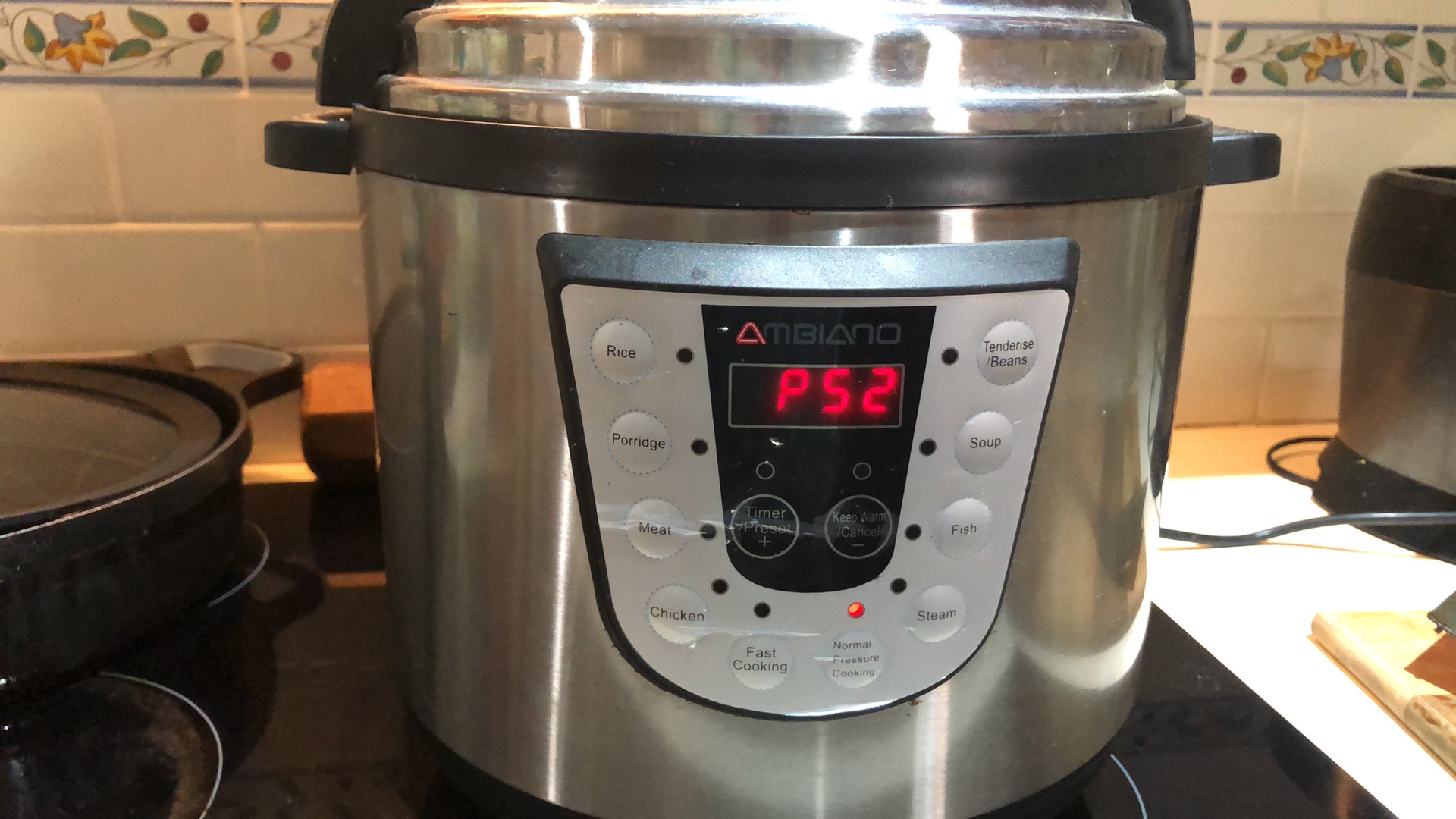

My Zambians pressure cooker model KY-318A does not have slow cooker mode as is described in this manual so I’ve cooked a lamb curry in normal pressure cooking for an hour . I read you can use steam mode for slow cooking for hours is this correct
