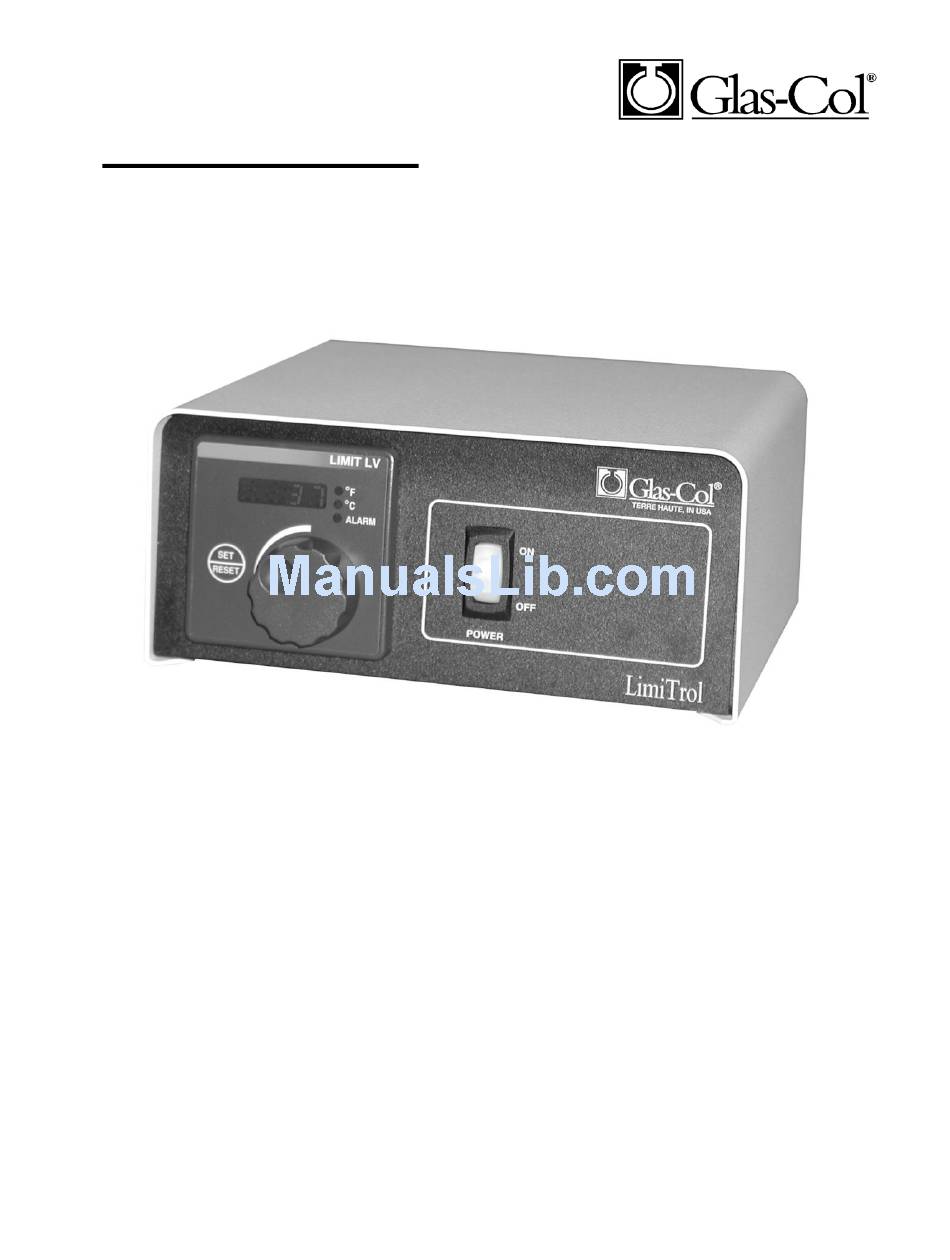

user instructions
General Description
The LimiTrol is an analog high-limit overtemperature control with digital display of
setpoint. Operation is stable in ambient temperature from 32 to 130 degrees Fahrenheit.
Control Features
1. On/Off switch
2. 7.5 amp electromechanical relay output
3. Calibration in C.
4. Temperature range of -210 to 1038 degrees C.
5. Isolation of sensor and circuitry from line and load.
J:\Std User Instructions\104A PC512, 104A PC524_LIMITROL II.doc
Instruction Notes for LimiTrol
104A PC512 & 104A PC524
711 HULMAN STREET
PO BOX 2128
TERRE HAUTE, IN 47802
812-235-6167
FAX 812-234-6975
11/13
1
Advertisement
Table of Contents
Related Manuals for Glas-Col LimiTrol 104A PC512
Summary of Contents for Glas-Col LimiTrol 104A PC512
- Page 1 user instructions 711 HULMAN STREET PO BOX 2128 TERRE HAUTE, IN 47802 812-235-6167 FAX 812-234-6975 Instruction Notes for LimiTrol 104A PC512 & 104A PC524 General Description The LimiTrol is an analog high-limit overtemperature control with digital display of setpoint. Operation is stable in ambient temperature from 32 to 130 degrees Fahrenheit. Control Features 1.
- Page 2 How to Setup and Operate First connect the heater load (7.5 amps or less) and the thermocouple plug to the load and thermocouple receptacles on the rear of the control. Next, plug the control line cord into the appropriate 3-wire grounded power receptacle. Push the power switch to the “ON”...
- Page 3 Specifications Control Mode Single input, single output Range -210 to 1038 degrees C Operator Interface Control knob Digital setpoint display ON/OFF switch Type J thermocouple receptacle 3-wire load receptacle Input -Type J thermocouple input; grounded or ungrounded Automatic cold junction compensation and break protection for sensor. Output -7.5 amp, 120 Volt (Fused);...
-
Page 4: Troubleshooting
Troubleshooting J:\Std User Instructions\104A PC512, 104A PC524_LIMITROL II.doc 11/13... - Page 5 Limited Warranty Glas-Col warrants products of its manufacture to be free from defects in material and workmanship for one year and agrees to repair or replace without charge any products found defective upon examination at the factory. With proper care and operation, Glas- Col products will give long and efficient service.
