Merlin VR Controller Instructions

VR Controller

Introduction:

Thank you for purchasing this Merlin Product. Please read the
instruction manual carefully before using the product.
The documentation provided will allow you to fully enjoy all
the features this unit has to o er.
Please save this manual for future reference
Instructions:
This product is a portable Bluetooth remote controller
and used for Mobile Phones, MID, TV box, Pc, Gamepad
and wireless mouse etc. It supports iOS, Android OS
and Windows etc. The Information is subject to change
without prior notice.

Note:

1. Because of individual mobile phones Bluetooth and
WiFi signal interference problems it is recommend the
client switch o WIFI before pairing with the device.
After pairing is complete WiFi can be enabled again.
2. If for some unforeseen circumstance the unit needs
to be reset please press the reset button at the back
with ne needle.

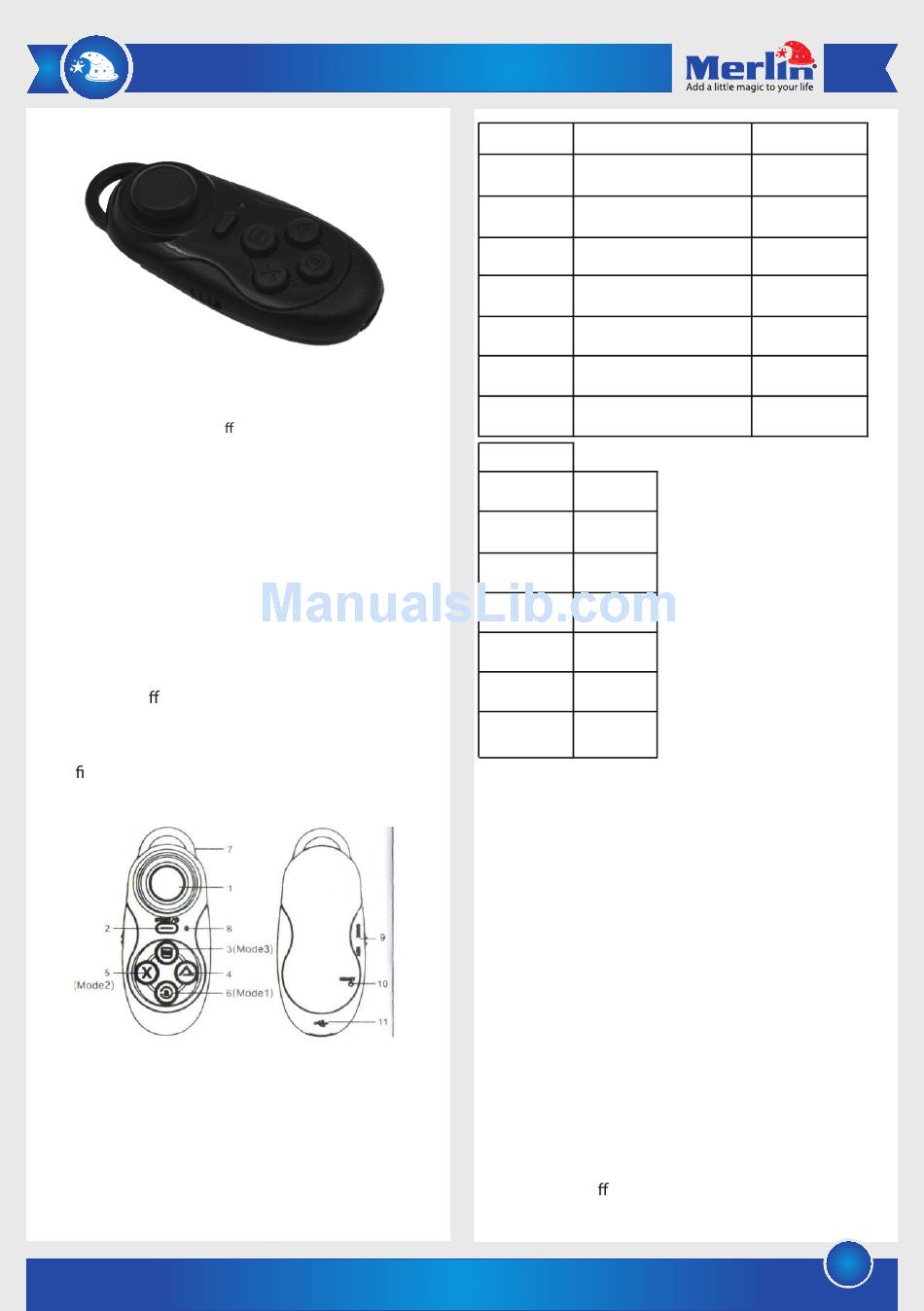

Controller layout

NOTE:
1. Joystick
2. (Start ) Power
3.) IOS Mode 3
4.) ESC
5.) MOuse M2
6.) Mouse M1
7.) Ring
8.) LED
9.) [ GAME-KEY ] Switch
10.) Reset
11.) USB Charger port
Android:
Key Mode 1 KEY MODE 2
Mouse Volume+/-, Pre/Next
Mouse left Play/Pause
VOL+/-,Prev Fast-forward
ESC
VOL-/Next Rewind
Shutter
IOS Mode 3
KEY GAME
\ Direction
\ UF
Shutter YT
HOME IM
VOL- HR
Mute JN
1.) Power on: Press the "Start" button until the blue light
comes on (about 2 seconds). The blue light indicates
power on, whilst the red light indicates low battery and
needs to be charged. The device will then be searchable
and is by default in the Android mode.
2.) To use the device with an iOS device press "start" and
"iOS" keys together. The red light will indicate the
product is on and the blue light will light if the device is
low on power. The device will now be visible in the
Bluetooth menu.
3.) After the connection is successfully made the system
will remember the last mode it was in and remain in that
mode the next it is being used.
4.) To use the device in and Android system press the
"start" and "@" keys at the same time. In this mode the
blue light will be the indicator and the red will be the low
power indicator. To change the mode at any time switch
the controller o and switch is back on in the method
describe above for your Operating System.
GAME
Direction
Start
X
Y
A
B
1
