Summary of Contents for ACTOR-MATE Rock Star

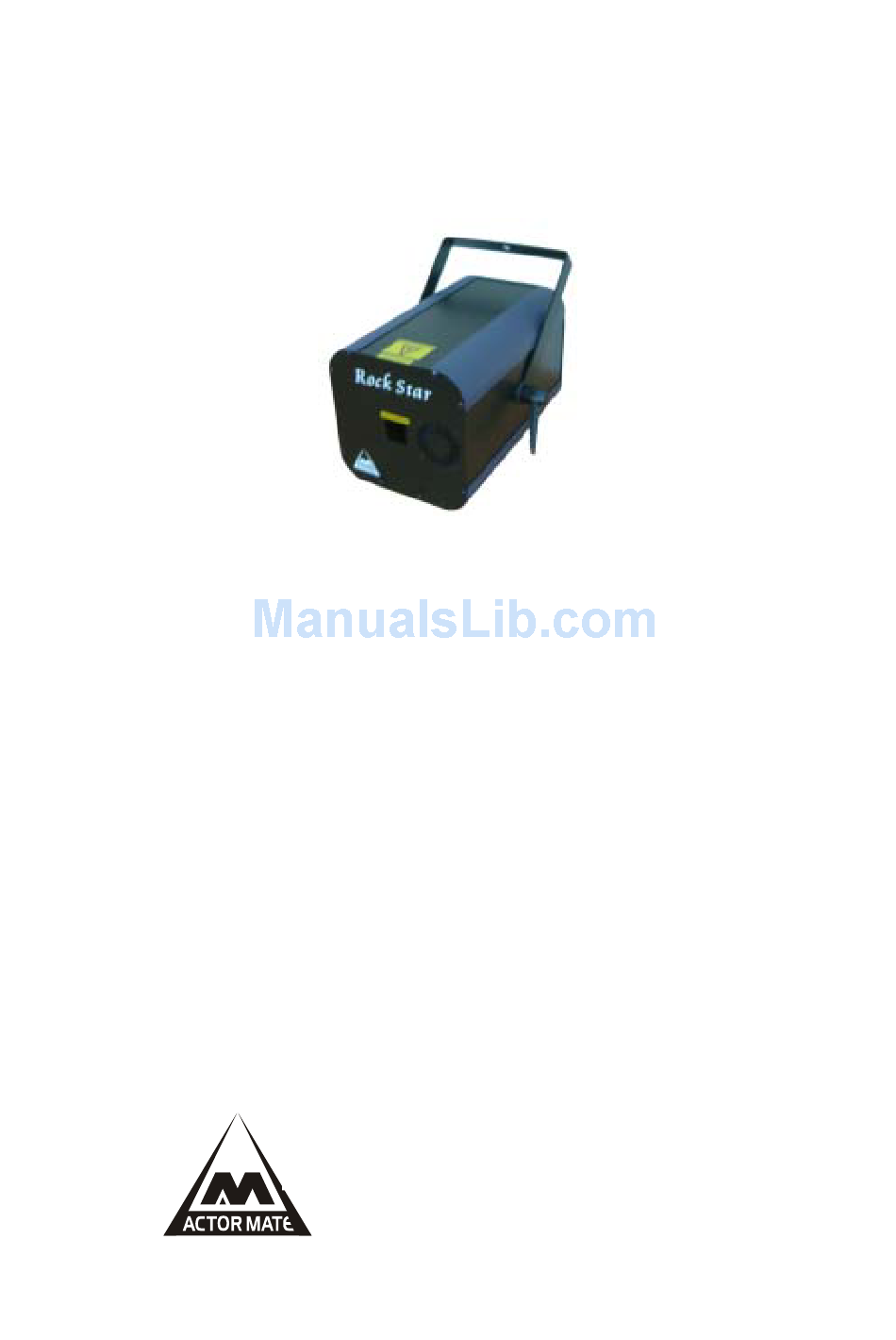

- Page 1 Rock Star AL12 Series Your Best Mate in Laser Lighting!
-
Page 2: Safety Precautions
Introduction Thank you for selecting Rock Star. Rock Star is a three-channel DMX laser which can be controlled via a standard DMX controller. It is a lightweight, mini intelligent fixture and is an ideal product for discos, clubs, exhibitions and any place that need visionary effect. Rock Star provides 100 effects include text effects. -
Page 3: Operating Modes
Operating Modes 1.Stand-Alone Operation (Sound Active Mode) Sound Active mode This unit has built-in program that will react to sound and music under Sound Active mode. Set all DIP switch pins to OFF to run Sound Active mode 2.DMX Operation DMX operation gives the user freedom to create his/her own programs tailored to their own individual needs. -
Page 4: Specifications
Specifications Model NO. AL12-05R/30R AL12-05G/10G/20G/30G/50G/100G Laser Power Red 4.9/30mW Green 4.9/10/20/30/50/100mW Weight 3.25Kgs Power AC 120V~60Hz or 230V~50Hz 280mm(L)×240mm(W)×210mm(H) Dimension 20mm×2A Fuse Material Iron Beam Divergence < 1.5 mrad Hanging Bracket Laser Aperture... - Page 5 Power Cord Connection Fuse Power Switch Sensitivity Adjustment Knob Microphone DMX In & Out DIP Switch Pin DMX 512 Address ©2003 ACTOR-MATE CO., LTD. No.15, Lane 83, Lungshou St., Taoyuan City, Taiwan 330. R.O.C. Tel: +886-3-3791326 / Fax: +886-3-3791919 www.actlaser.com.tw active@actlaser.com.tw...
