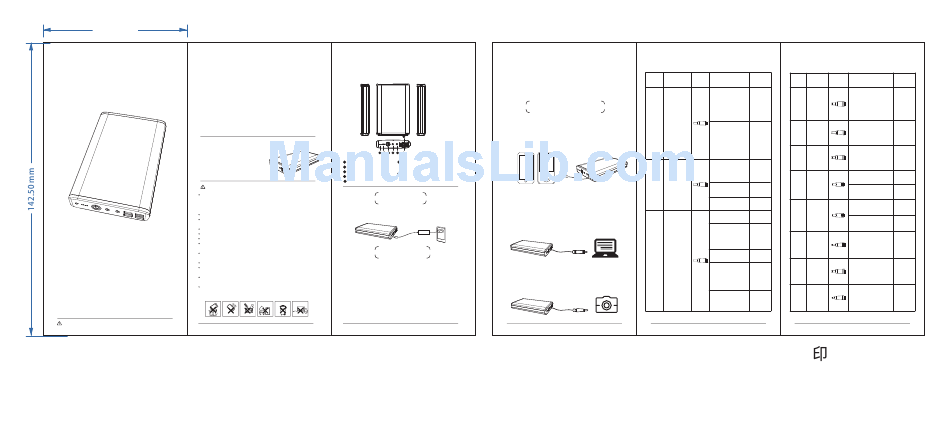

Kayo Maxtar K2 User Manual

70.00
mm
Product Parameters
Battery:
Capacity:
Charger input:
Input:
Output:
Charging time:
Cycle life:
Working temperature:
Storage temperature:
Product size:
Product Accessory
Laptop power bank:
AC charger:
USB cable:
DC Adaptor :
Laptop charge connector:
Multifunction bag:
Manual:
Safety Guidelines
Please check the charging voltage of your laptop first, make
sure the charging voltage is consistent with the output voltage
of K2 power bank. Do not mix up DC 12V and DC 20V output voltage,
otherwise wrongly operation may cause damage of your device.
Please charge K2 power bank with our attached original adapter.
Prohibit using in bathrooms or damp places or other places
easy access to water.
Keep the product out of children's reach.
Don't make reverse connection of the output and input port.
Don't put this product into fire.
Don't use this product in high temperature environment
(above 60℃).
Please don't bump/beat/shake the product, otherwise the
internal circuit may get damaged.
K2 Don't charge or use this product in inflammable environment.
Only professional technicians or designated maintenance
agencies are allowed to disassemble or repair this product.
Unauthorized disassembling or repair may lead to damage
and danger.
Please make sure the charging voltage of the digital devices
match the output voltage port of K2 when charge for digital
Laptop Power Bank
devices such as cellphone/laptop/DV.
After-sale service commitments 24 month warranty
Email:service@kayomaxtar.com
Web:www.kayomaxtar.com
We Suggest Fully Charge Our K2 Power Bank Every Six Months
Product Overview
Li-Polymer battery
Product Standard: GB31241-2014
50000mAh
AC 100V~230V
DC 16.8V/2.5A
USB1&2: 5V/2.1A
USB3&4: 5V/1.0A
DC1: 12.0V/2.5A
DC2: 20.0V/3.0A
6~8 hours
≥1000 times
0 ℃ ~45 ℃
-10 ℃ ~40 ℃
206.9×136×33mm
6
X1
X1 1 2 3 4 5
7
X1

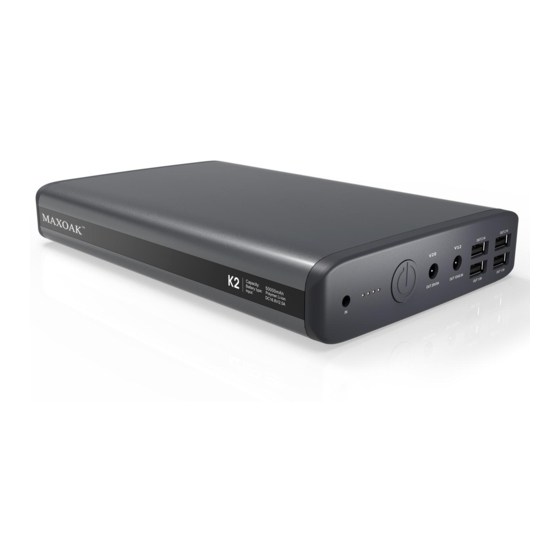

X1 1 Charging port 6 Output port: USB1 5V/2.1A
X10
2 Capacity indicators USB2 5V/2.1A
X1
3 On-off/ function button
Output port: USB3 5V/1A
7
X1 Output port: 20.0V/3A
4
USB4 5V/1A
Output port: 12.0V/2.5A
5
Charging K2
AC Charger
Put DC output connector of AC charger into K2's input port, and
connect to wall AC outlet.
Product Characters
1.
Support charging and discharging at the same time.
2. Press ON-button: fast turn on, LED indicates the remaining power.
3. Press OFF-button: stay 2s for power off.
4.
Auto turn off: K2 turns off automatically in 30s if no load
5. LED lights in discharging status
0-25%: LED1 lighting
25%-50%: LED1, LED2 lighting
50%-75%: LED1, LED2, LED3 lighting
75%-100%: LED1, LED2, LED3, LED4 lighting
Low voltage alarm: LED 1 flashing
6. LED lights in charging status
0-25%: LED1 flashing
25%-50%: LED1 lighting, LED2 flashing
50%-75%: LED1, LED2 lighting, LED3 flashing
Specification
75%-99%: LED1, LED2, LED3 lighting, LED4 flashing NO.
(mm)
100%fully charged: LED1, LED2, LED3, LED4 lighting
All LED indicators light off when charging cable is disconnected.
Other Multi-functional Applications
Charging for mobile phone/laptop/other digital electronic products.
6.0/1.4
1. K2 supports all USB charging digital electronic products.
You can use your own USB cables for charging.
2. Slightly press the on-off button after connecting well, K2 starts
charging. K2 will power off automatically in 30s if charging cable is
disconnected.
5.5/2.5
Charging for laptop
1. Never mix up DC12V and DC20V output.
2. We configure 10 different laptop connectors for K2 power bank,
please choose an appropriate one for charging your laptop.
3. Please check the input voltage of your laptop carefully to choose
the appropriate output port before charging your laptop.
4. Slightly press the on-off button after connection, K2 starts
charging; K2 will power off automatically in 30s if charging cable
is disconnected.
5.5/2.5
Charging for other digital devices
1. Never mix up DC12V and DC20V output.
2. K2 offers DC12V/2.5A power for other digital devices, such
as digital camera.
3. Slightly press the on-off button after connection, K2 starts
charging; K2 will power off automatically in 30s if charging cable
is disconnected.
BZ.SMOK02001)K2
Laptop Adapter List
Applicable
Specification
Applicable Laptop laptop NO. Picture Applicable Laptop
(mm)
brand
19V 2.15A
FUJITSU16V3.36A Aspireone
FUJITSU16V3.75A FUJITSU 5.5/1.7 ( D270,D257,D250)
FUJITSU19V3.16A Aspire one
(531h/A110)

18.5V 3.5A
SONY16V3.75A/4A
(HP 500HP530
4.8/1.7
SONY19.5V2.15A/
E300)
4.7A/5.13A
SONY
SONY19.5V3A/4.1A
/6.15A
SONY19V3.16A
Samsung
19V2.1A /4.74A
5.0/1.0
(R458 R480 RV415)
ACER19V3.42A/
4.74A/7.1A
Acer
ACER19V7.3A/
9.5V3.34A (M2300
7.7A/7.9A
D430 )
7.4/0.6
ASUS19V3.42 ASUS
HP 18.5V 3.5A
IBM16V3.5A/3.36A
IBM
IBM20V3.25A
IBM16V4.5A/4.2A
IBM20V4.5A
7.9/0.9
DELL19V3.5A DELL
LTEON 20V 3.25A
LTEON 20V 4.5A
HP/COMPAQ18.5V
1.1A/4.9A/6.5A
HP/COMPAQ19V HP
Samsung
3.16A/4.74A HP19V
19V/2.1A
7.1A/3.95A/8.42
3.0/1.1
(NP900X1B
530U3B )
FUJITSU19V4.22A FUJITSU
Samsung
TOSHIBA19V3.16A
5.0/1.0 19V2.1A /4.74A
TOSHIBA19V3.42A
(R458 R480 RV415)
TOSHIBA
TOSHIBA19V4.74A
TOSHIBA19V6.6A
HP19.5V3.33A
4.5/3.0 (ENVY14
NEC19V3.16A/6.3A/
NEC
Pavilion15)
2.64A
Note: The connectors may not compatible with some laptops because of
different charging architecture.
