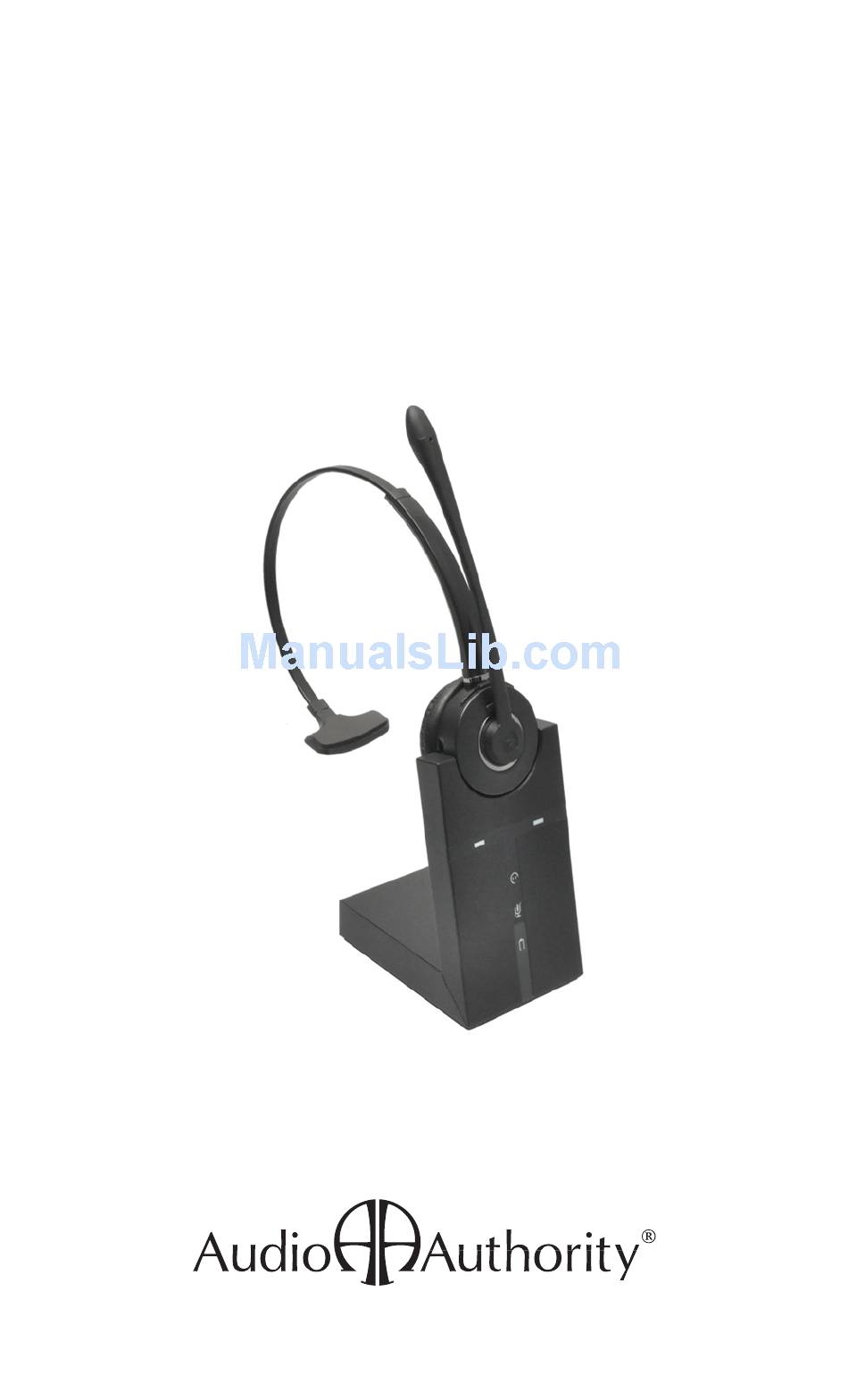

- Page 1 User Manual 1542V Wireless Headset...
- Page 2 Introduction The Model 1542V Wireless Headset for Series 1500 and 1580 Intercom Systems allows freedom of movement for users from the intercom Counter Station for maximum efficiency while serving drive-up lanes. Each base station can sync with up to four headsets, and multiple headsets can operate in close proximity.
- Page 3 PAGE SWITCH RECEIVER MIC VOLUME VOLUME ADJUSTMENT ADJUSTMENT MULTIPLE SWITCH POWER PORT MODEL 1542V BASE REAR AUX PORT HANDSET PORT TELEPHONE PORT Connecting the 1542V The 1542V headset base connects to the Audio Authority 1500A via 801-142 RJ11 to 2.5mm cable.
- Page 4 1) Connect the RJ11 end of the 801-142 cable into the port marked telephone on the 1542V base unit and plug the 2.5mm end into the port marked headset on the 1500A. 2) Connect power supply to AC power, then to the 1542V power port.
