Cygnus S1008-120-V1 User Manual

8 Ports PoE Ethernet Switch
User Manual
8 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet
high definition surveillance and Ethernet project security system. The product fully combines
the characteristics of security surveillance, provides fast packet forwarding ability and
abundant backplane bandwidth, which ensures clear image and fluent transmission. ESD
and surge protection circuit can improve product stability. The product supports one key
CCTV model, can achieve VLAN, control the Net storm, protect the information security,
prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security
surveillance system and Ethernet project needs.

Application

PoE IP camera
PoE IP camera
PoE IP camera
PoE IP camera
PoE IP camera PoE IP camera

Feature

● Major ports: 1pcs 100Mbps uplink fiber port, 8pcs 100Mbps downlink Ethernet
port , every port supports MDI/MDIX;
● Special function: One key CCTV mode; 1～8 downlink ports can only communicate with
uplink ports;
● Power input: DC48V～57V;
● Transmission Distance: 0～100m; the furthest transmission distance could reach 250m in
CCTV model; Uplink port can reach 100m;
● Standard: Meet IEEE802.3 、IEEE802.3u、IEEE802.3 af/at standards,
PoE use End-Span, the spare cable can be of other use;
● Protection: Excellent anti-thunder, anti-static and anti-interference ability;
● Appearance: Delicate design and easy installation, configure the anti-theft lock hole,
guard against theft;
●Operation: Plug and Play, No Setting required.

Notice

The transmission distance is related to the connected cable. We suggest standard Cat5e/6
network cable, so the transmission distance can up to further distance!
1

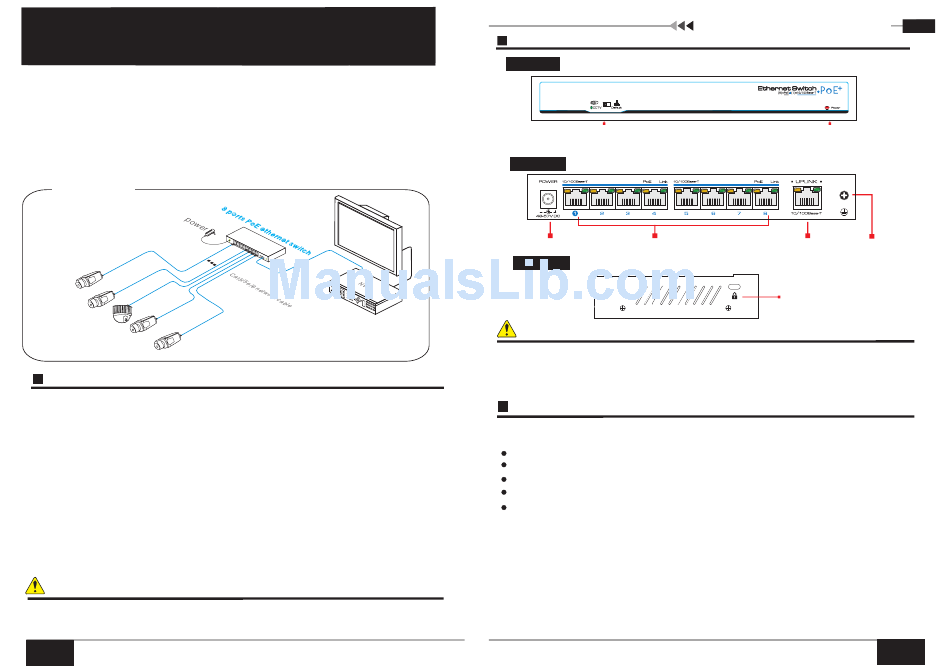

Board Diagram
VerB 1.3
Front board
Back board
L C
D
Side board
Notice
1) Device must be connected with lightning protection grounding; otherwise protection
level will reduce; please use above No.20 wire to connect the grounding terminal.
2) Turn the dial switch for left, the equipment can enter surveillance module after providing
equipment power.

Installation step

Please check the following items before installation, if it is missing, please contact the
dealer .
8 port PoE Ethernet Switch
Power adaptor
AC power cable
Accessory
User manual
Please follow below the installation steps
1) Please turn off the signal power and display device power before installation, installation
with power will damage the transmission equipment;
2) Use network cable connect PoE IP camera and 1～8 downlink ports of product respectively;
3)Use a network cable connect equipment uplink port and NVR or computer;
4) Connect power adapter;
5) Check if the installation is correct, equipment is in good condition, the connection is
stable, then provide power for system;
6) Ensure the Ethernet equipment with power and work properly.
8 Ports PoE Ethernet Switch
CCTV mode
power input port PoE down link port
Power
indicated light
uplink Ethernet port
ground port
Kensington lock
1pc
1pc
1pc
1pc
1pc
2
