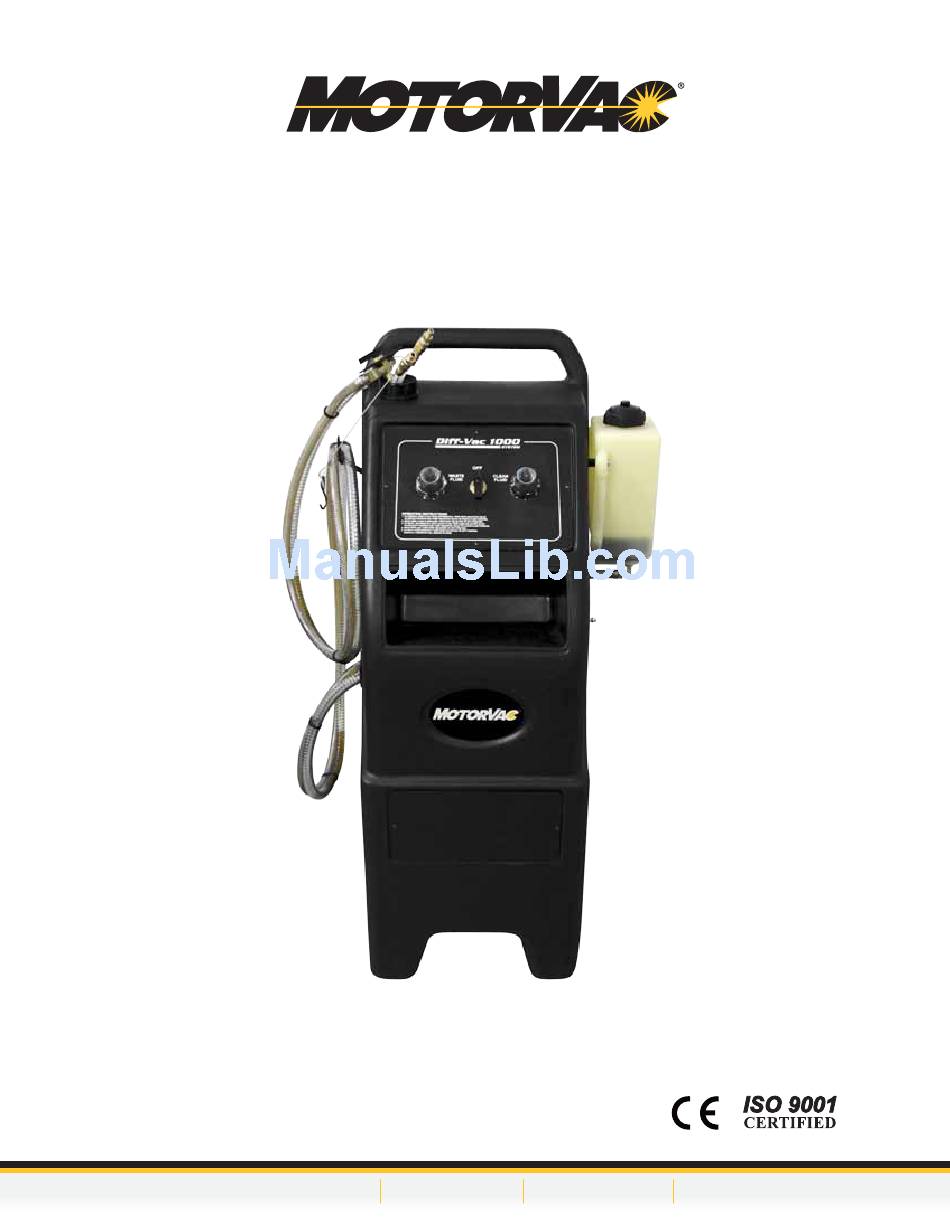

- Page 1 Diff-Vac 1000 Differential Fluid Service System Part No. 500-9025 USER MANUAL 1324 Blundell Rd. Mississauga ON Tel. 905.615.8620 Fax. 905.615.9745 www.motorvac.com...
- Page 2 By choosing this product, you are acquiring a simple and trouble free method for performing fluid system evacuation and refill services. The Diff-Vac 1000 is designed to service most automotive applications by exchanging most of the fluid in engine oil pans, manual transmissions and differentials. Connections to the vehicle are achieved with the supplied adapters.
-
Page 3: Table Of Contents
Table of Contents Page Warnings .…………..…………………………………………………..……………........System Features and Functions ………………………………..…….………........… Controls ………………………………………………….…….…………………....…….……..…… Initial Setup …………………………….....…………………....……....………..… Initial System Flush ……….………………………………………....……....………..… Operating Instructions ………………………………………………....……....………..… Troubleshooting ………………………………………………....…….……........… Parts …………………………..................…….……..…… info@motorvac.com www.motorvac.com... -
Page 4: Warnings
Do not direct air or fluid stream at your body or at others. Flying particles, air or fluid entering body can cause injury. • Improper use or maintenance of pressurized equipment can cause leaks or rupture Read the following instructions. Leaking of pressurized equipment can cause injury. info@motorvac.com www.motorvac.com... -
Page 5: System Features And Functions
Control Panel – See Controls for details. Clean Fluid Tank – Fill with clean fluid before a service. Waste Tank – Used to collect waste fluid. Air Inlet Port – Connect shop air supply to this port. (Air Nipple, Not supplied) info@motorvac.com www.motorvac.com... -
Page 6: Controls
Controls Waste Fluid Filter Pump Selector Valve Clean Fluid Filter Hose Selector Valve info@motorvac.com www.motorvac.com... -
Page 7: Initial Setup
3. Connect hose to the bottom of the clean fluid tank Initial System Flush The Diff-Vac 1000 is tested with light weight oil. To remove any residual light weight oil remaining in the outlet hose perform the following procedure: 1. Pour 1qt (946ml) gear oil into Clean Fluid Tank. -
Page 8: Troubleshooting
Adapter Diff-Vac 5/16” 200-9030 Adapter Diff-Vac 1/4” 050-2435 Filter ORDERING PARTS Parts for the unit may be ordered by calling MotorVac Customer Service at (800) 841-8810 or (905) 615-8620. Please have your model and serial numbers available. www.motorvac.com info@motorvac.com info@motorvac.com www.motorvac.com... - Page 9 ZIM13-00872 1324 Blundell Rd. Mississauga ON Tel. 905.615.8620 Fax. 905.615.9745 www.motorvac.com...
