Transystem GL-770 Quick Manual

A. Key Features
Support both GPS and GLONASS
●
Support Bluetooth Smart (BT4.0) LNS service
●
Log up to 250,000 waypoints
●
More than 35 hours operation time
●
Smart log of time, distance and speed
●
B.

Package content

GPS Recorder – GL-770 x 1
●
USB cable x 1
●
Quick start guide x 1
●

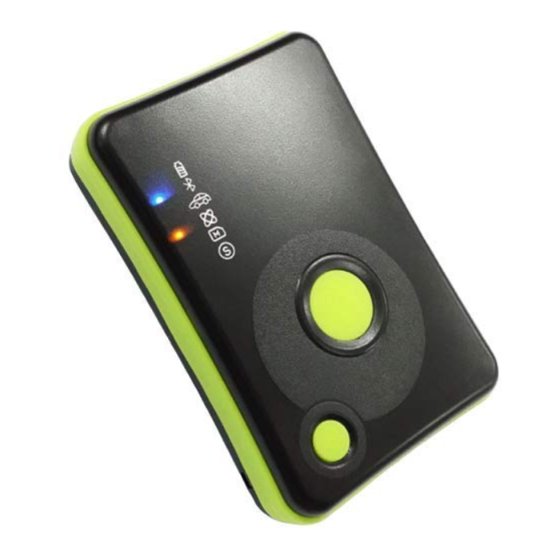

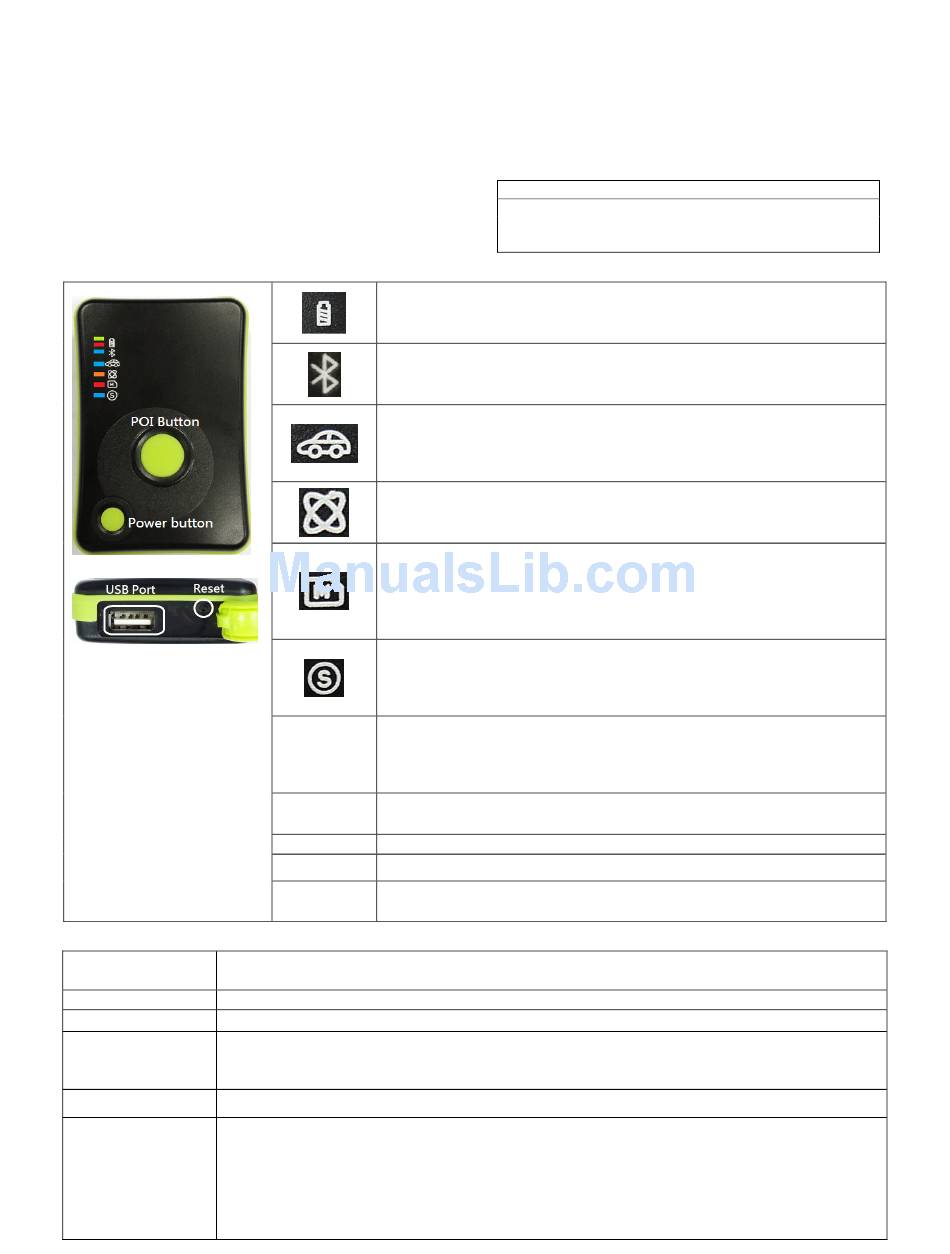

C. Appearance
D. Specification
Frequency: GPS: 1575.42±1.023 MHz, GLONASS: 1602±5MHz
GPS+GLONASS
Update Rate: 1 or 5 Hz
NMEA
Support: GGA,GSA,GSV,RMC
Default log data
Date / Time/ Fix valid / Latitude / Longitude / Height/ Speed / Heading / RCR
Frequency: 2402-2480MHz, 40 Channel, Bluetooth 4.0 GFSK modulation
Bluetooth Smart
Output rate: 1 or 5Hz
Bluetooth ID: same as serial number
LNS service
Default output: Speed, Distance, Latitude, Longitude, Elevation, Heading, Rolling time, UTC time.
User Name : same as serial number
Log by time : 5 (can be programmed by software)
Default
Log by distance : 0 (can be programmed by software)
Normal mode
Log by Speed : 0 (can be programmed by software)
Acceleration sensor : OFF (can be turned on/off by software)
Check password : OFF (can be turned on/off by software)
GL-770/GL-770M Quick Guide
Battery status: Green, Red
Green light 1Hz blinking = Charging , Green light On = fully charged
Red light 1Hz blinking = battery <30% , Red light On= battery <10%
Bluetooth Smart status:
Blue light On = Bluetooth smart is turned on and waiting for connection
Blue light 1Hz blinking = Bluetooth smart is connected
Car mode: Blue light
Led On = In car mode, device will go into sleep mode when no power supply
from USB and device will wake up and start logging when there is power
supply from USB.
GPS status: Orange light:
Led On = searching for satellite,
Led Flashing = GPS fix & start logging
Memory status: Red light:
3 times flashing = POI button pressed and POI recorded.
1Hz flashing = memory 80% full
OFF= sleep mode
Keep flashing = Erasing data
Acceleration sensor status: Blue light:
On = acceleration sensor is turned on for motion detection.
Off = acceleration is turned off
1/3Hz flashing = sleep mode
Push to record waypoint.
POI Push and hold for 5 seconds to turn ON/OFF acceleration sensor.
Button Push and hold for 10 seconds to turn ON/OFF Car mode.
* Vibrating and beeping feedback when POI button is pressed.*
Power Push to turn ON/OFF Bluetooth when device is turned on.
Button Push and hold for 3 seconds to turn on/off the device.
USB port For charging and data transmission.
Reset Button Push to reset device. Device is power off after reset
POI + Power Press POI and Power buttons at the same time to erase the data in the device.
Button *Please do not turn off the device when memory red color LED is flashing.*
Support 5Hz logging for high speed application
●
Acceleration sensor for smart power saving
●
Vibrator /beeper for POI confirmation
●
Rechargeable Li-Polymer battery
●
IPX3 water-proof
●
Software License Key
8020401001A
