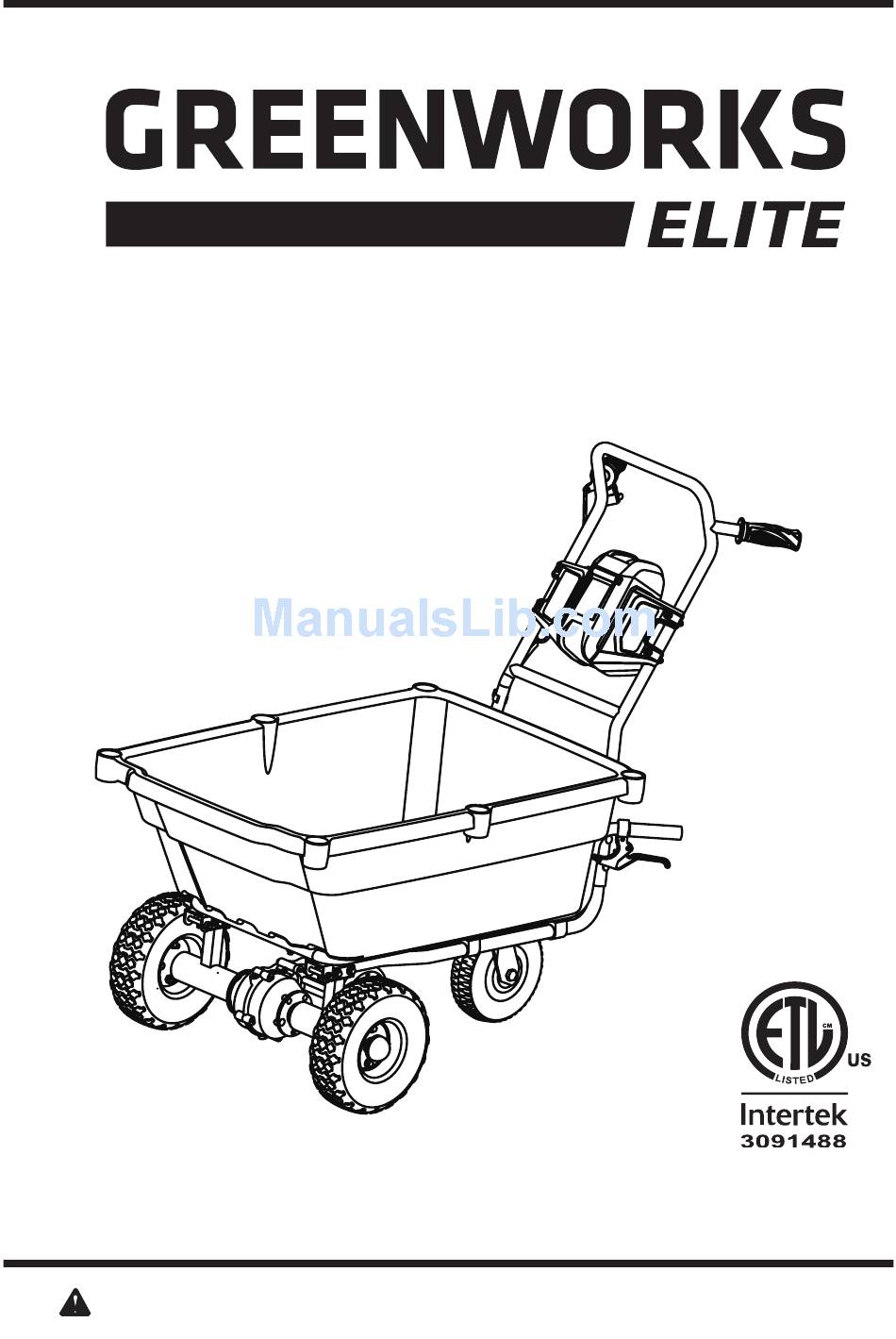

- Page 1 40V Cordless Lawn Cart LC-220-T Owner’s Manual TOLL-FREE HELPLINE: 1-833-493-5483 www.greenworkselite.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
Limited Warranty ........................ 21 Exploded View ........................22 Parts List..........................23 PRODUCT SPECIFICATIONS LAWN CART Model ........................ LC-220-T Rating ......................40V 300W Loading capacity..........220 lbs (100kg) on level cement surfaces Inflation pressure ................... 30PSI Maximum Weight (with 3ah battery) ..................70.6 lbs Capacity (Volume) ...................106L / 3.74CUFT... -
Page 3: Important Safety Information
IMPORTANT SAFETY INSTRUCTIONS GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY W A R N I N G When using electric gardening appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following. - Page 4 • Remove or disconnect battery before servicing, cleaning or removing material from the Lawning appliance. • Use only with Greenworks Elite batteries: L-300, L-600. • Use only with Greenworks Elite Chargers: C-220, C-400. • Do not dispose of the battery(ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS SERVICE W A R N I N G Altering the electrical system could cause a fire resulting in serious injury. Don’t do it. • Using components other than those supplied could cause overheating, fire, or explosion. • Never make adjustments or repairs with the motor running. •...
-
Page 7: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. DESIGNATION/EXPLANATION SYMBOL Voltage Current Power Time Type or a characteristic of current Indicates a potential personal injury hazard. - Page 8 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, WARNING could result in death or serious injury.
-
Page 9: Know Your Lawn Cart
KNOW YOUR LAWN CART Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Forward/Reverse button Safety button... - Page 10 ASSEMBLY INSTRUCTIONS PART NAME FIGURE PART NO. Self propelled Lawn cart Handle assembly Knobs and U-bolts Manual...
-
Page 11: Assembly Instruction
ASSEMBLY INSTRUCTIONS UNPACKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 12 ASSEMBLY INSTRUCTIONS INSTALL THE UPPER HANDLE (See Figure 2) • Slide the upper handle over the lower handle tubes on the bucket assembly. Make sure the bolt holes align. • Insert a U-bolt from the outside of the handle, passing through the bolt hole where the upper and lower handles attach.
-
Page 13: Operation Instruction
OPERATION INSTRUCTION W A R N I N G You are responsible for controlling and steering the Lawn cart once it is moving. Grasp the handle securely before moving. Make sure you are ready to move with the Lawn cart before pressing the on-off button and safety button. - Page 14 OPERATION INSTRUCTION LOCK/UNLOCK THE BRAKE (See Figure 4) • Step on the brake, the brake will be locked, and the Lawn cart will stop. • Step on the brake again, the brake will be unlocked. Brake Fig. 4 STARTING (See Figure 5) •...
- Page 15 OPERATION INSTRUCTION W A R N I N G If you do not engage the throttle in 4 seconds after pressing the safety button, you have to press the safety button again. MOVING FORWARD/REVERSE (See Figure 6) 1. Select forward/reverse. 2.
- Page 16 OPERATION INSTRUCTION W A R N I N G When moving in reverse, be ready for the Lawn cart to lurch towards you and get immediately up to speed. Be careful; step back and be prepared to walk backwards. Consider standing to the side of the Lawn cart until you get used to moving backwards.
-
Page 17: Maintenance
MAINTENANCE Like any machine, maintaining your Lawn cart ensures its best performance and extends its life. Follow these procedures to keep your Lawn cart working at peak efficiency. • Check all screws and nuts regularly; tighten them as needed. Regularly check the plastic parts for cracks or broken pieces. - Page 18 MAINTENANCE CHANGE THE OIL To ensure this product’s best performance and extend its life, please change the oil every half year in the first working year and every year in the rest years. Draining the oil (See Figure 9) • Remove the drain plug with a wrench to drain the oil. •...
-
Page 19: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this Lawn Cart: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION To secure the battery pack, make sure the Battery is not secure. latch on bottom of the battery pack snaps into place. Charger the battery pack according to the Battery is not charged. instructions included with you model The Lawn cart does not run. -
Page 21: Limited Warranty
4 year consumer warranty against defects in materials, parts or workmanship. GREENWORKS ELITE, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 22: Exploded View
EXPLODED VIEW... -
Page 23: Parts List
PARTS LIST PART NO. DESCRIPTION RB311083156 KIT, BOTTOM FRAME RB311023156 KIT,MOTOR &TRANSMISSION RB311053156 KIT, CASTER RB311033156 KIT, TIRE RB311073156 KIT, BUCKET FIXTURE RB311103156 KIT, PIN & KNOB RB311043156 KIT, LOCK RB311063156 KIT, SPRING RB311093156 KIT, BUCKET RB311013156 KIT, PANEL RB311113156 KIT, HANDLE... - Page 24 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-833-493-5483 Rev: 00 (11-07-2017) Printed in China on 100% Recycled Paper...
