Summary of Contents for Scion SC03.4101

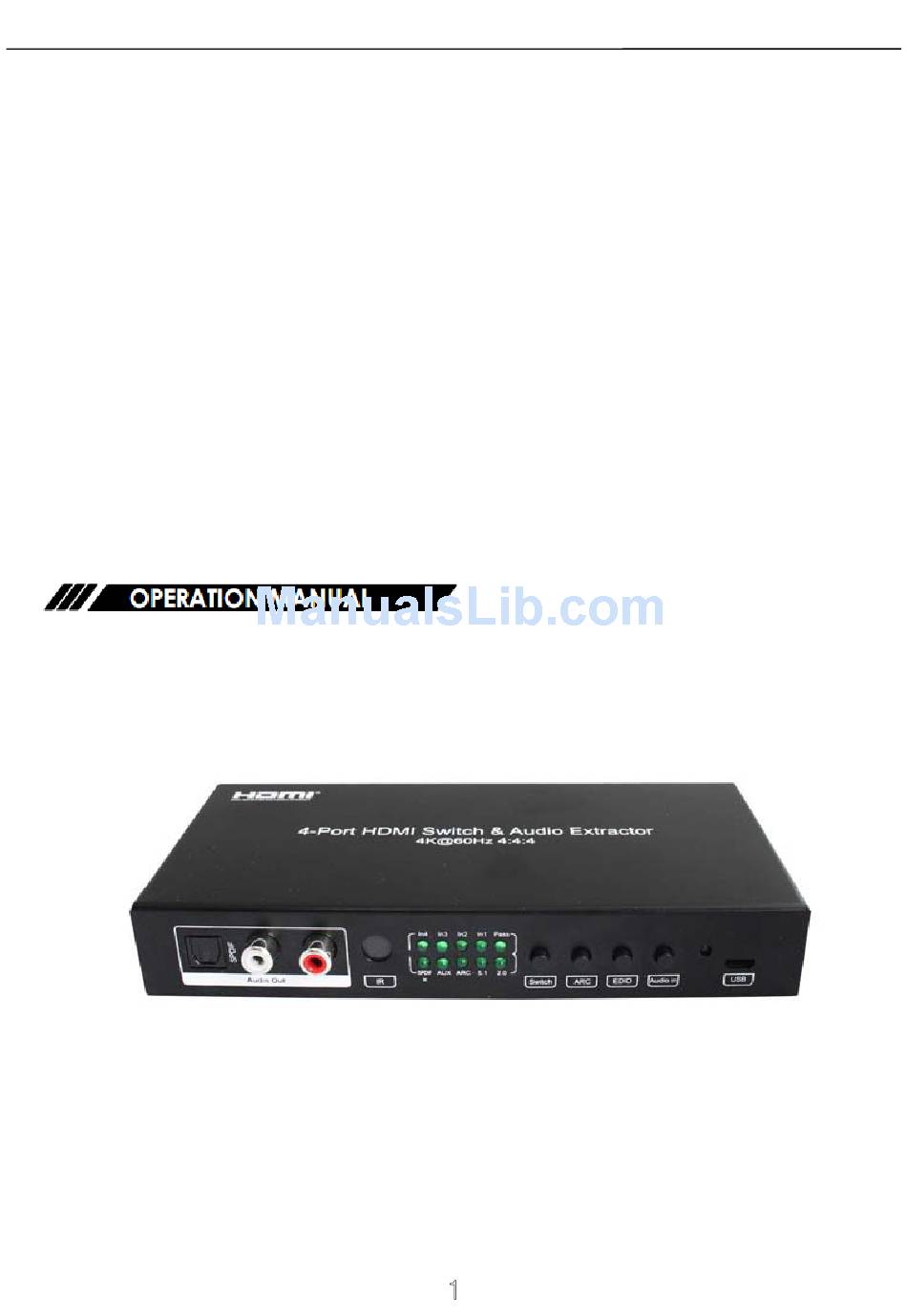

- Page 1 Operating Instructions SC03.4101 4X1 HDMI 2.0 Switch 4K@60hz YUV4:4:4 18Gbps support ARC, CEC, HDR...
-
Page 2: Package Contents
Operating Instructions Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Features Ø HDMI 2.0 version (Support 4K@60Hz YUV4:4:4) Ø... - Page 3 Operating Instructions TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Maintenance Product service Warranty Specifications Operating Temperature Range -5 to +40℃(+23 to +104℉) Operating Humidity Range 5 to 90%RH (No Condensation) Country of origin China Power supply Minimum power 256mA (work under 480p60hz)
-
Page 4: Panel Description
Operating Instructions Panel Description Front Panel 1. SPDIF Audio out 2. Analog audio out 3. IR receiver 4. Source and Audio Led lights 5. Switch Button 6. ARC Button 7. EDID Button 9. Power Led light 10. Upgrade USB port Back Panel 1. -
Page 5: Application Diagram
Operating Instructions Connecting and Operating 1. Connect source devices to input ports of the switch by HDMI Cable. 2. Connect HDMI output port to TV or other HDMI sink devices by HDMI Cable. 3. Connect 5V POWER supply to DC power socket. 4. - Page 6 Operating Instructions ARC Application Diagram Remote Control Description ① Power on/off ② HDMI sources(1~4) ③ ARC on/off ④ Audio select button by EDID ⑤ Mix audio input select button...
-
Page 7: Product Service
Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;... - Page 8 Operating Instructions Mail-In Service When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
