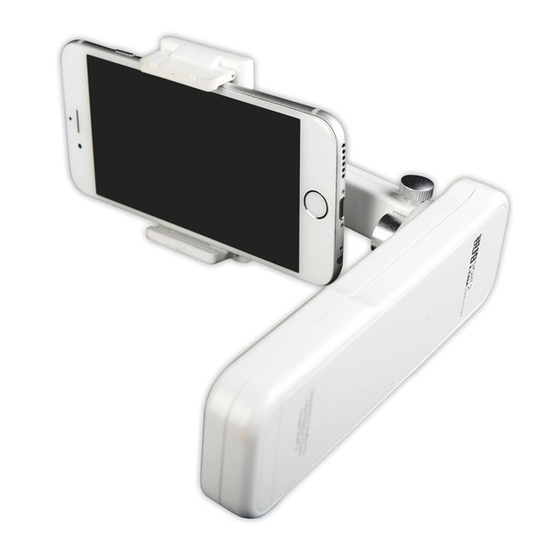

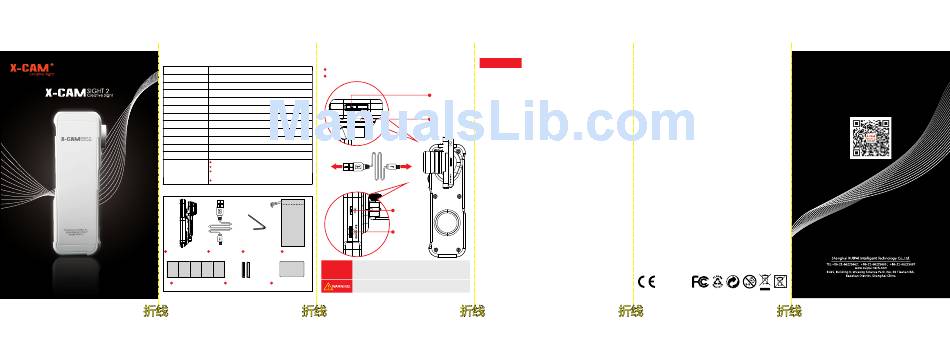

X-cam Sight 2 Instruction Manual

1.PRODUCT PARAMETERS
Phone compatibility Smart phone with screen size less than 5.5"
Pitch axis angle range ± 175 degrees
Horizontal shaft angle ± 55 degrees
Pitch axis control angle ± 45 degrees
Instructions Manual
Bluetooth
Low consumption International Bluetooth 4.0 standard
Battery 1,000 mAh Li-Po
Charging time 2-3 hours
Maximum power <= 10w
Working duration 2-5 hours constantly (depending on phone weight)
Material PC engineering plastic
Size 150(L) x 48(W) x 54(MH)
Weight 189g
Need to charge when red LED slowly flashes
Ready for auto turn off when red LED rapidly flashes
LED Indicator Bluetooth connection is available when blue light
dimly flashes (Bluetooth version only)
Works normally when blue LED lights up constantly
2.PACKAGING COMPONENTS
Handheld gimbal Charging cord
2
axis stabilizing system
Bluetooth connection
Foldable structure
Instructions manual
(only needed for small-sized smart phone)
3.STRUCTURES OF HANDHELD GIMBAL
Green LED light is on when charging.
LED light is off when charging has completed.
(5V Power Adaptor) Mini-USB
Charging port
TILT knob
(Center is photo
/video button
- Bluetooth
Hex allen wrench Velvet bag
version only
This gimbals is motor-lock protective. When
Certificate of quality ATTENTION bumped or obstructed, the gimbals will
automatically shut off in 10-15 seconds.
EVA thickening pads Certificate of quality The packaging and user manual contain important
information and should be kept for future reference.
ATTENTION
Safety Instructions
1)Keep the device away from flammable materials and heat sources
when charging. Do not cover either the device or the charger.
Make sure to charge under safe and ventilated circumstances.
Power switch
2)Never leave the charging process unattended.
(press and hold for two
3)Keep the device away from water, oil and other corrosive liquids
seconds to turn on/off)
or gases to avoid short circuit that might damage the electronic
system or lead to battery explosion.
LED indicator
4)Charge the device regularly when not in use for long periods of
time.
5)Turn off the device and stop charging immediately when there is
a burning smell, deformation or other abnormal cases occur. Be
sure to handle the device properly.
