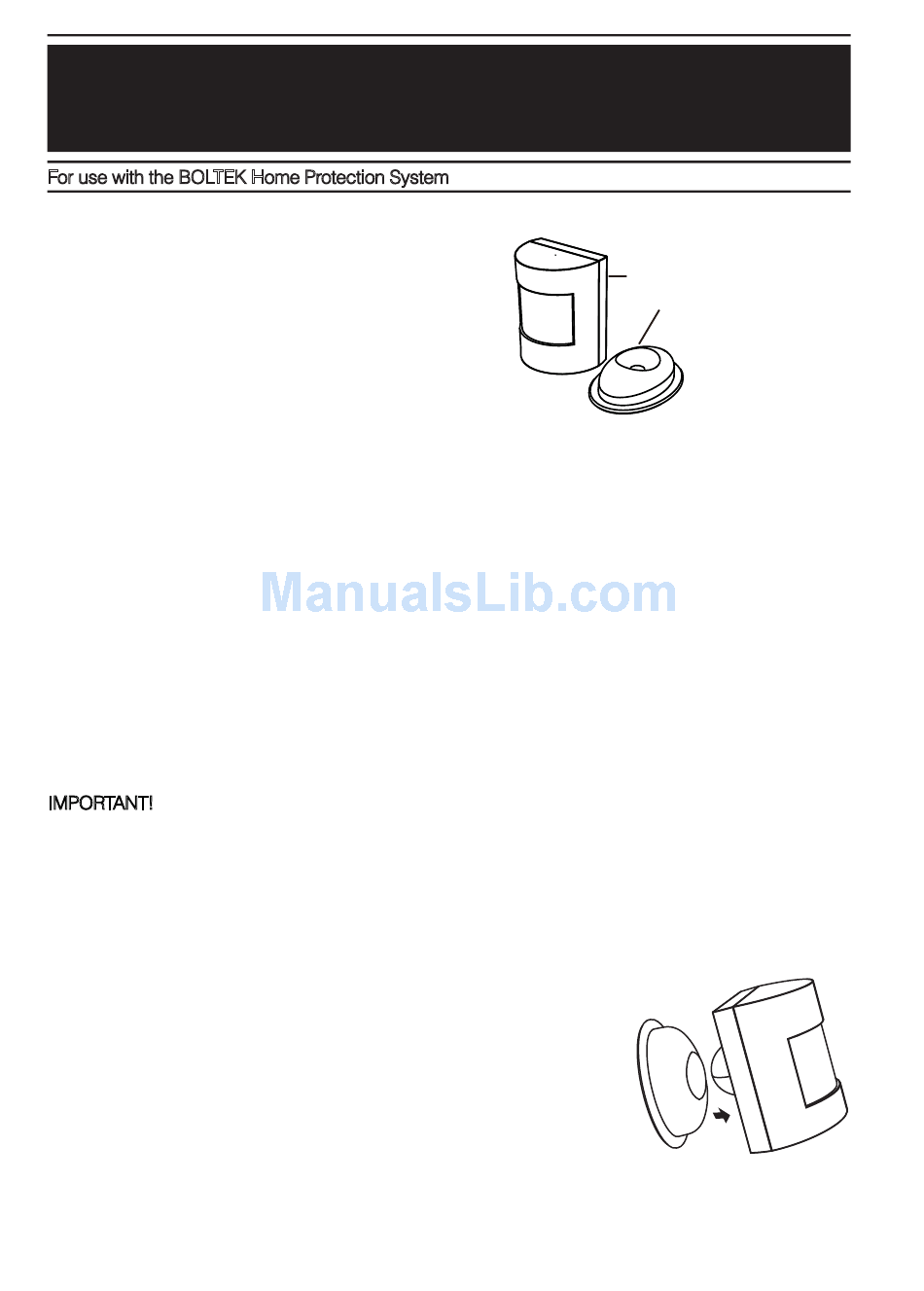

INSTALLATION AND OPERATING INSTRUCTIONS
For use with the BOLTEK Home Protection System
Please keep this user guide in a safe place for future reference.
Kit contents:
1 x PIR Motion Sensor
1 x Magnet mounting bracket
2 x Screws and wall plugs
1 x User guide
1. Introduction
The PIR Motion Sensor is designed to trigger the BOLTEK Home Protection System when
it senses movement in given area.
2. Location
First determine the location of the Sensor, which should be placed:
• on a solid surface between 1.8m to 2.4m (6ft to 8ft) from the floor.
• near key entry/exit points.
• away from extreme temperature sources (radiators, ovens, stoves etc.) and large metal objects
that could interfere with the wireless performance.
• away from direct sunlight.
• indoors only and not behind partitions.
• where better RF performance can be achieved (if necessary).
IMPORTANT! The Motion Sensor is immune to pets moving on the floor or climbing on furniture as long
as the activity takes place below 1m (3ft). Above the 1m (3ft) height limit, adjust the sensitivity of Motion
Sensor to "Middle" or "Low" position so more movement is required to trigger the sensor but the pet
immunity will decrease as the pets get closer the sensor. It is important to perform a "Walk Test"
(Described in part 3.5) with your pets.
3. Installation and Operation
3.1 Tamper Protection
The PIR motion sensor has a built-in tamper proof switch to prevent
the sensor being disabled by an intruder(Fig.1).
• Before powering up and installing the Motion sensor, ensure the
system is in standby mode to avoid the alarm sounding.
• The Tamper Proof protection is enabled once the Smart Panel is
switched to HOME, ALERT or ARM mode. The panel will be
triggered with Ding Dong sound or alarm sound under different
modes once the main motion transmitter being taken away.
OUTDOOR PIR MOTION SENSOR
WS103S PIR Motion Sensor
. 1 .
Model WS-103S
PIR Motion Sensor
Magnet mounting bracket
Fig. 1 Tamperproof Protection
Advertisement
Table of Contents
Summary of Contents for Boltek WS-103S
- Page 1 1 x User guide WS103S PIR Motion Sensor 1. Introduction The PIR Motion Sensor is designed to trigger the BOLTEK Home Protection System when it senses movement in given area. 2. Location First determine the location of the Sensor, which should be placed: •...
- Page 2 CR123 battery 3.2 Powering up the PIR sensor • Remove the screw from the bottom part of the top plastic cover with the screw driver (as shown in diagram) and install the 1 x CR123 lithium battery (Fig. 2). Fig. 2 •...
- Page 3 4. Enroll and Delete Sensors • Operated on the BOLTEK control panel under the “SETTINGS”, by entering 4-digit default code ”0000” (or the set code) and then press “DONE” button for logo-in. • Then select the "ADD/ DELETE SENSORS" under "SETTINGS" and the sensors are ready to be enrolled or deleted (Fig.
- Page 4 the setting is completed, please press the "DONE" button. C. ARM Mode • Press the "ARM" button to ARM or turn off the sensors under this mode. Once the setting is completed, please press the "DONE" button. 6. Maintenance The product may be cleaned with a soft damp cloth and then wiped dry. Do not use abrasive, solvent based or aerosol cleaners as this may damage and/or discolour the product.
