WDT SOLDOS-SL Operation Manual

Dosing station for the fine nebulisation of brine solution for dry rooms, e.g. tepidariums to create a salty sea climate in the atmosphere of the room.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

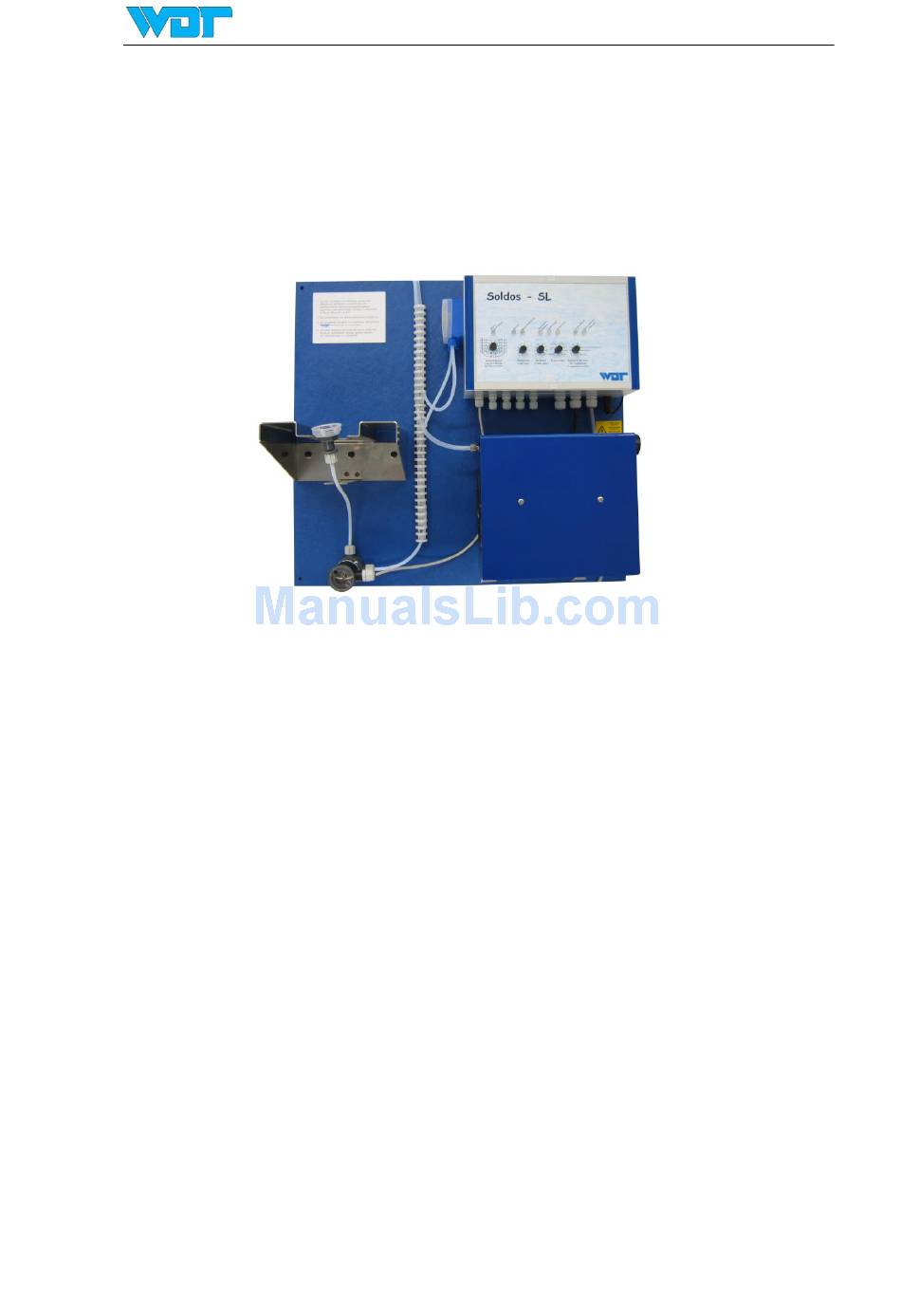

Operation manual SOLDOS - SL
Dosing station for the fine nebulisation of brine solution
for dry rooms, e.g. Tepidariums to create a salty sea
climate in the atmosphere of the room.
1. Before the installation of a SOLDOS all materials in the
room have to be checked on their corrosion resistance
against the saline mixture of water and air both in the
adequate steam cabinet and additional and discharged
air shafts.
2. Use only pure, disinfected
concentration of app. 5%. WDT brine solution is
delivered in a sterile condition in a closed container.
Outstanding brine solution is affected by bacterial
impact and so should not be used.
3. Consider disinfection instructions and durability of the
brine solution! (see point 4.3)
Operation manual Soldos - SL (04-09)
Safety instructions
WDT
page 1 of 18
brine solution with a salt

Advertisement

Table of Contents
loading

Summary of Contents for WDT SOLDOS-SL

  • Page 1 2. Use only pure, disinfected brine solution with a salt concentration of app. 5%. WDT brine solution is delivered in a sterile condition in a closed container. Outstanding brine solution is affected by bacterial impact and so should not be used.
  • Page 2 Operation manual Soldos - SL (04-09) page 2 of 18...

  • Page 3: Table Of Contents

    Operation manual Soldos - SL (04-09) page 3 of 18 Table of contents Page 1. Application ..................... 4 Function ................... 4 Option: additional functions ..............4 2. Technical data / components ..............5 3. Installation .................... 6 4. Assembly of the nozzle ................7 5.

  • Page 4: Application

    4 of 18 1. Application The Soldos-SL nebulises brine solution for dry rooms by the use of a two- component jet nozzle (compressed air and brine solution). After a short time a salty sea climate is created in the room.

  • Page 5: Technical Data / Components

    Operation manual Soldos - SL (04-09) page 5 of 18 2. Technical data / components The SOLDOS SL consists of: Control housing H200 x B300 x T120mm incl. microprocessor control board. Peristaltic pump with rpm-control for the adjustment of the dosing quantity and salt concentration.

  • Page 6: Installation

    For the use in Saunas the Sauna Heater has to be resistant against corrosion (stainless steel housing). Attention!!! – please use only pure, disinfected WDT brine with a salt concentration of app. 5%. The SOLDOS has to be installed on a capable place next to the accordant cabinet, but not directly on the back board of the wall as a disturbing noise due to vibration might come up.

  • Page 7: Assembly Of The Nozzle

    Operation manual Soldos - SL (04-09) page 7 of 18 4. Assembly of the nozzle For the installation of the nozzle and the covering screen, a borehole (100 mm) has to be done through the wall of the room (see picture). The grommet/ mounting sleeve has to be glued-in diffusion resistant, in order that the cover screen of the nozzle rests on the cabin surface with the sealing.

  • Page 8: Installation Of The Push-Button (Option)

    SOLDOS-SL Two-component jet nozzle 5. Installation of the push-button (option) Optionally the SOLDOS-SL can be operated with a push-button that has to be ordered separately. As an option there are also bonnets for the different push buttons available. In the following you find...

  • Page 9: Attaching The Brine Reservoir To The Unit

    Operation manual Soldos - SL (04-09) page 9 of 18 Taking the unit into operation Attaching the brine reservoir to the unit Before taking the unit into operation the brine solution reservoir has to be attached to the unit. At the programme switch the dosing performance is adjusted by the pause- and spraying time.

  • Page 10: Operation Modes

    Operation manual Soldos - SL (04-09) page 10 of 18 6.2 Operation modes The programme switch is to set the demanded programme. There are 2 general operation modes: 6.2.1 Interval operation - „continuous dosing“ At the continuous dosing the programme starts after the unit has been switched-on.

  • Page 11: Settings

    6.3 Settings The single operation parameters can be adjusted at the front plate of the SOLDOS-SL. Dosing performance in l/h during continous operation: This stepless Poti is to set the dosing performance of the peristaltic brine pump in l/h.
  • Page 12 Operation manual Soldos - SL (04-09) page 12 of 18 Test switch: To test all functions/ components of the SOLDOS-SL. Cycle in minutes for push-button operation – programme switch: This switch has several functions: 1) Choice of the operation mode (see page 10 – point 6.2).

  • Page 13: Disinfection Instruction

    Operation manual Soldos - SL (04-09) page 13 of 18 7. Disinfection instruction The disinfection has to be done at every exchange of the brine bag, at least monthly (Before the initial operation, the disinfection has to be done as well) The disinfection has to be done preferably before or after the operation when no bathers are in the room! A disinfection tablette is always included in delivery!
  • Page 14 Operation manual Soldos - SL (04-09) page 14 of 18 This procedure complies with the Ö-Norm 6222 part 1. The Soldos is securely disinfected. Flushing: Step 5: Remove the canister (with disinfection solution) and draw the new brine canister with germfree brine solution. Turn the programme switch to “flushing”.

  • Page 15: Peristaltic Pump

    Operation manual Soldos - SL (04-09) page 15 of 18 8. Peristaltic pump 8.1 Function principle This type of peristaltic pump will reliably meter a chemical solution to the injection point particularly when low dosing rates are required with products which ‘gas off’...

  • Page 16: Maintenance

    Operation manual Soldos - SL (04-09) page 16 of 18 9. Maintenance Please consider: - Change the dosing hose of the peristaltic pump yearly. - Check the pump head with the roller always when you exchange the brine bag. Check if there´s corrosion or other signs of wear. The rollers have to be even and must not show grooving.

  • Page 17: Wiring Diagramme

    Operation manual Soldos - SL (04-09) page 17 of 18 10. Wiring diagramme...

  • Page 18: Spare Parts List

    Operation manual Soldos - SL (04-09) page 18 of 18 11. Spare parts list 20230 Controller Soldos-V2 complete 18840 Control board ED-S1-V5 12764 Main switch 2p A-E 16A d20 10080 Pressure switch Pak-Mini / SOLDOS 60mm 10083 Protection cover for pressure switches M16 17386 Adapter d50-M10X1 for pressure switch SOLDOS...
