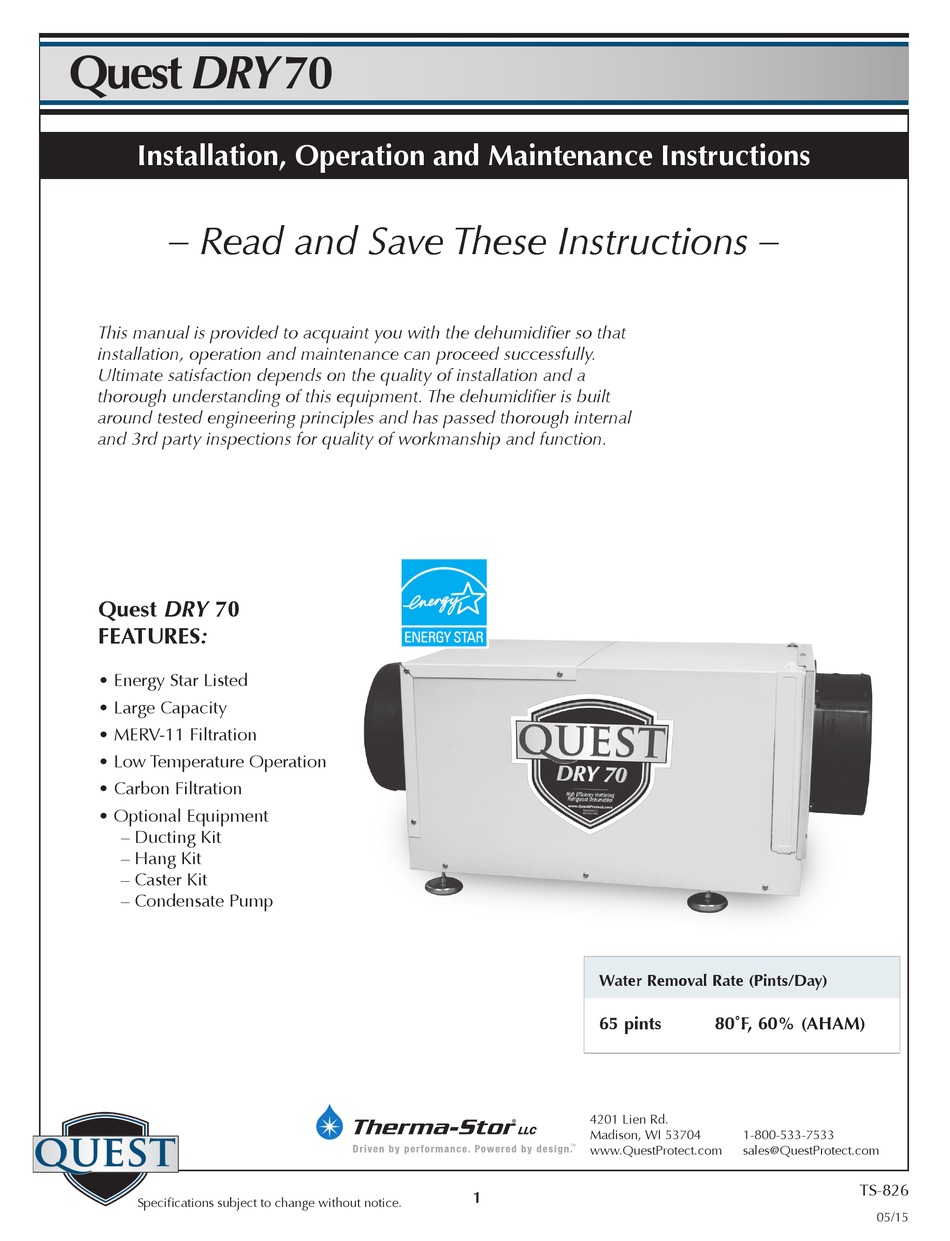

Quest DRY 150
Quest DRY 70
Installation, Operation and Maintenance Instructions
Installation, Operation and Maintenance Instructions
– Read and Save These Instructions –
– Read and Save These Instructions –
This manual is provided to acquaint you with the dehumidifier so that
installation, operation and maintenance can proceed successfully.
Ultimate satisfaction depends on the quality of installation and a
thorough understanding of this equipment. The dehumidifier is built
around tested engineering principles and has passed thorough internal
and 3rd party inspections for quality of workmanship and function.
Quest DRY 70
FEATURES:
• Energy Star Listed
• Large Capacity
• MERV-11 Filtration
• Low Temperature Operation
• Carbon Filtration
• Optional Equipment
– Ducting Kit
– Hang Kit
– Caster Kit
– Condensate Pump
quest
quest
Specifications subject to change without notice.
Water Removal Rate (Pints/Day)
65 pints
4201 Lien Rd.
Madison, WI 53704
www.QuestProtect.com
1
80˚F, 60% (AHAM)
1-800-533-7533
sales@QuestProtect.com
TS-826
05/15
Advertisement
Table of Contents
Summary of Contents for Quest Engineering DRY70
- Page 1 Quest DRY 150 Quest DRY 70 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions – Read and Save These Instructions – – Read and Save These Instructions – This manual is provided to acquaint you with the dehumidifier so that installation, operation and maintenance can proceed successfully.
-
Page 2: Table Of Contents
Quest DRY 70 Installation, Operation and Maintenance Instructions Table of Contents 7. Wiring Diagrams ..........13 Introduction .............. 1 8. Optional Parts List ..........14 Features & Benefits ........... 1 9. Service Parts List ..........14 Safety Precautions ............ 3 Routine Maintenance ......... -
Page 3: Safety Precautions
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER AND OWNER Safety Precautions Read the installation, operation and maintenance instructions carefully before installing and operating this device. Proper adherence to these instructions is essential to obtain maximum benefit from your Quest DRY 70. -
Page 4: Intended Application
Quest DRY 70 Quest DRY 70 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 1. Intended Application for Quest Dry 70 For the ideal installation, draw air from the central part of the workspace and return it to isolated areas of the structure. -
Page 5: A Power Accessibility
Quest DRY 70 Quest DRY 70 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 4.1A Power Accessibility Unit should be located in an area where the cord’s length (8') should easily reach a 110-120 VAC electrical outlet with a minimum of a 15 A circuit capacity. -
Page 6: Condensate Removal
Quest DRY 70 Quest DRY 70 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY The installer must supply the wiring between the Quest Dry 70 and the control panel. Be sure to safely route the control wiring to prevent damage during installation. - Page 7 Quest DRY 70 Quest DRY 70 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 1. Using T-20 Torx Driver, remove three (3) sheet metal screws that attach the exhaust panel from each side of the Quest Dry 70. There will be a total of six (6) screws. Do not remove the exhaust collar. 2.
-
Page 8: B Ducting For Fresh Air - Option
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 4.4A Supply Air CAUTION DO NOT draw air directly from the kitchen, laundry, or isolated basement. You may draw air from a basement that is open to the workspace. All flexible ducting connected to the Quest Dry 70 should be UL listed. -
Page 9: C Installation In A Basement Or Crawlspace
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 4.4C Installation in a Basement or Crawlspace with an Existing Forced Air HVAC System. Basement Installation: Install a separate 8" return for the Quest Dry 70 in a central area of the structure. Optional: Duct the supply of the Quest to a 8"... -
Page 10: E Installation In A Structure With
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER AND OWNER Optional Heating & A/C Unit Fresh Air Intake Quest Air Supply Backdraft Damper Indoor Air Return Motorized Damper Quest Indoor Air Return Indoor Air Supply Quest DEH 3000 control The preferred method of installation is to create a separate return for the Quest Dry 70 in a central area of the structure. -
Page 11: Controls
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 4.6 Controls The Quest Dry 70 features a built-in dehumidistat control as well as the ability to wire a remote mounted control to the unit. The control used to operate the unit should be located in an area where the control can accurately sense the humidity of the area where humidity control is desired. -
Page 12: Control Package Diagram Sheet
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER AND OWNER 5 Control Package Diagram WARNING: Allowing yellow wire to contact red or white wire will destroy the transformer. Dehumidifier on : Connect yellow and blue wires. Fan only on : Connect yellow and green (or brown) wires. Accessory power : 24volt AC power supply available for HVAC accessories between yellow and white(and/or red) wire. -
Page 13: Maintenance
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 6. Maintenance 6.1 High Efficiency Air Filter The Quest Dry 70 is equipped with a MERV 11 media filter. This filter should be checked every three months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency and may cause the compressor to cycle off and on unnecessarily on the defrost control. -
Page 14: Wiring Diagrams
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 7. Wiring Diagram quest quest 1-800-533-7533 www.QuestProtect.com sales@QuestProtect.com... -
Page 15: Optional Parts List
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 8. Optional Parts List: Quest Dry 70 Part No. Description 4030671 Filter MERV 11 4030113 Pump Kit 4029908 Hang Kit 4023647 8" Gravity Damper 4020646 8" Butterfly Damper 4027415 8"... -
Page 16: Service
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 10. Service CAUTION CAUTION: Servicing the Quest Dry 70 with its high pressure refrigerant system and high voltage circuitry presents a health hazard which could result in death, serious bodily injury, and/or property damage. Please contact your HVAC professional. -
Page 17: Refrigerant Charging
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY Fan is not running. Dehumidification or fan is being called for 1. Loose connection in fan circuit. 2. Obstruction prevents fan impeller rotation. 3. Defective fan. 4. Defective fan relay. Low dehumidification capacity (evaporator is frosted continuously). -
Page 18: Compressor/Capacitor Replacement
Quest DRY 70 Installation, Operation and Maintenance Instructions FOR HVAC INSTALLER ONLY 10.4 Compressor/Capacitor Replacement This compressor is equipped with a two terminal external overload and a run capacitor, but no start capacitor or relay. CAUTION CAUTION-ELECTRICAL SHOCK HAZARD: Electrical power must be present to perform some tests. These tests should be performed by a qualified service person. -
Page 19: Warranty
Quest DRY 70 Installation, Operation and Maintenance Instructions Quest DRY 70 Quest DRY 70 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions Quest DRY 70 Dehumidifier Limited Warranty WARRANTOR: Therma-Stor LLC 4201 Lien Rd Madison, WI 53704 Telephone: 1-800-533-7533 WHO IS COVERED: This warranty extends only to the original residential end-user of the Quest Dry 70 dehumidifier, and may not be assigned or transferred.
