Summary of Contents for Secure Tech ST2

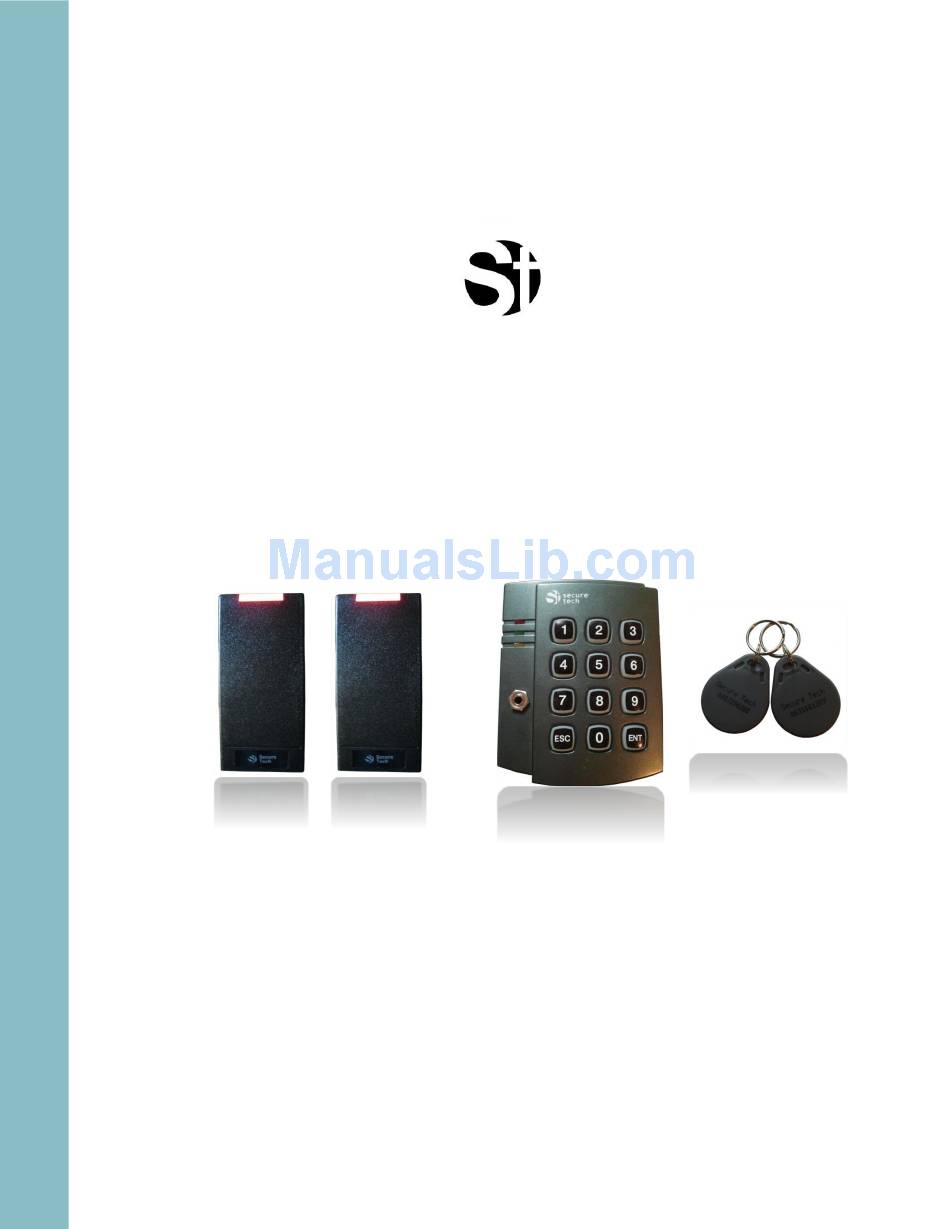

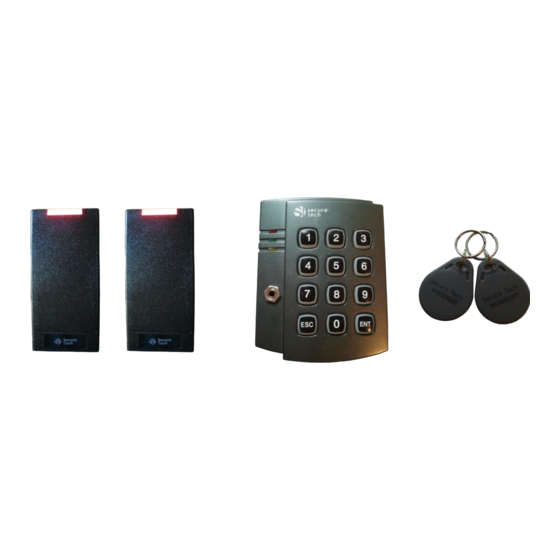

Page 1 Secure Tech ST2 Installation Manual Keyless Access System Solutions...
Page 2 Secure Tech www.setech.ca ST2 Keyless Access System - Parts Description Door Controller - Front View Door Controller - Back View Indication Leds Back screws Red: Power Yellow: Programming Controller Female mode Keypad Green: successful Clicking operation supports USB Interface Connector...
Page 3 Secure Tech www.setech.ca Installation diagrams Access Control One (1) Door Door contact (Optional) Release push Magnetic lock 12 DC Power button (optional) Supply AC Power outlet 110VAC/220VAC Proximity Card Choose Electric Reader Strike or Magnetic lock Electric Strike Door controller module...
Page 4 Secure Tech www.setech.ca Access Control one (1) Door + Exit Registration Door contact (Optional) Release push Magnetic lock 12 DC Power button (optional) Supply AC Power outlet 110VAC/220VAC Choose Electric Strike or Magnetic lock Proximity Card Reader Electric Strike Proximity Card...
Page 5 Secure Tech www.setech.ca Controller Module: Board connectors description and recommended cables Recommended Cables Proximity Reader: 6 Conductors x 22 AWG - Shielded  (5 cables used). Maximum distance: 300 feet (100 meters) Electric Strike or Magnetic Lock: Option 1: 2 Conductors x 18 AWG ...
Page 6 Secure Tech www.setech.ca Typical connection with 12VDC Electric Strikes Electric Strike Door 1 Electric Strike Door 2 Prox. Reader 2 Proximity Reader Cables Red - +Vcc Protection Diodes Black - Gnd Green – Data0 White – Data1 Blue - Led Grey –...
Page 7 Secure Tech www.setech.ca www.setech.ca Phone: 1-416-477-9993 Fax: 1-866-655-6342...
Page 8 6) Push the controller aligning the clicking supports females(door controller) and the clicking supports males (wall supporting plate) 7) Plug the power supply to the AC power outlet(110AC or 220 AC) Software Download: Download ST2 Management software. Specific software versions for:  Companies and institutions ...
