Summary of Contents for ArrowX 1072

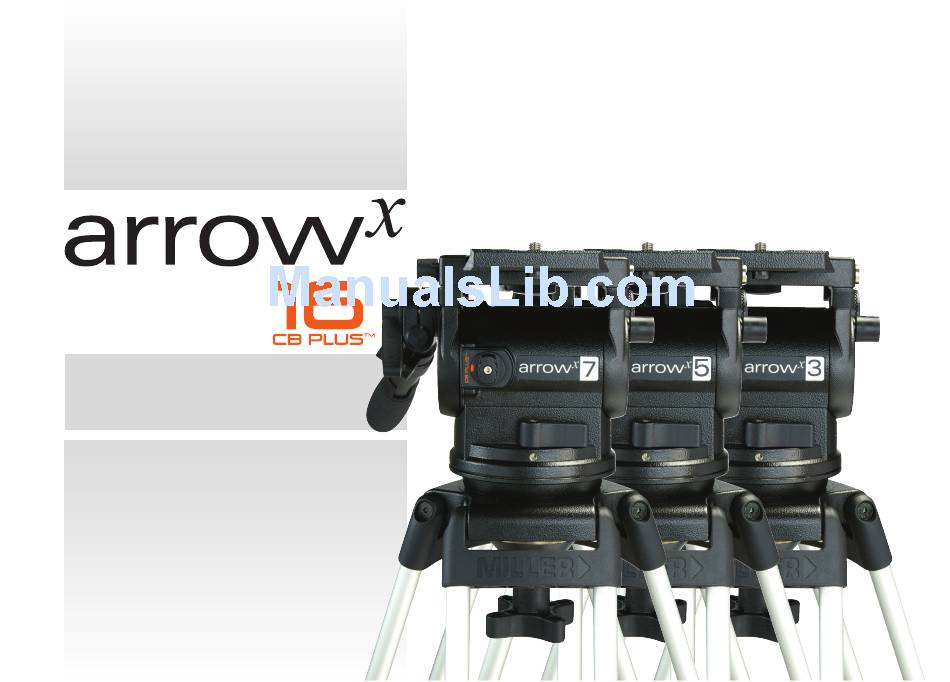

- Page 1 Fluid Head OPERATOR’S MANUAL 1072 Arrow 3 Fluid Head 1074 Arrow 5 Fluid Head 1076 Arrow 7 Fluid Head...
-
Page 2: Features And Controls
Features and Controls Sliding Platform Camera Screws Camera Plate Sliding Platform Lock Quick Release Knob Pan Handle Safety Tab Tilt Lock Counterbalance Selector Pan Handle Clamp Illumination Button Pan Drag Control Pan Lock Tilt Drag Control CB Plus Selector Knob Bubble Level Tripod Bowl Threaded Stud... -
Page 3: Safety Instructions
Introduction Safety Instructions Attaching / removing the camera Thank you for purchasing the Arrow Fluid Head. The Arrow Fluid Head has been designed to suit a wide range of cameras, lenses and accessories as demanded by ENG, EFP , Studio and Please use this manual to familiarise yourself with the operation Field OB setups. -
Page 4: Camera Setup
Operating Instructions 2. Camera Set-up 2.1 Remove the CAMERA PLATE by pulling down the SAFETY TAB while rotating the QUICK RELEASE KNOB to the left. The CAMERA PLATE should pop out. 2.2 Refer to the Camera’s owners manual for correct C of G method of attachment to the CAMERA PLATE. - Page 5 Operating Instructions 3. Counterbalance Control The counterbalance system was designed to neutralise the effect of the camera weight when it is tilted. The Arrow Fluid Head offers a 16 position counterbalance system which is operated with the Counterbalance Selector Knob (Fig. 1) and the CB Plus Selector Knob (Fig.
- Page 6 Operating Instructions 4. Pan-tilt Drag Control. Tilt Drag Setting Illumination Button Counter Balance Selector The Arrow 5 & 7 Fluid Head offers 7 selectable positions of fluid drag + zero setting in the Pan and Tilt. The settings are equally stepped from light drag in position 1 up to heavy drag in position 7, the drag plates are completely disengaged in position zero.
-
Page 7: Maintenance
Maintenance The Arrow Fluid Head offers high quality surface coatings, dust Illumination Button and moisture seals. Miller recommends keeping the Fluid Head clean at all times by using soft brushes and lint free cloth to wipe over the surfaces. • Do not immerse the Fluid Head in any liquid. -
Page 8: Specifications
Specifications 1072 Arrow 1074 Arrow 1076 Arrow Weight 3.1kg (6.8lbs) 3.4kg (7.4lbs) 3.4kg (7.4lbs) Payload range 1-19kg (2.2-41.8lbs) 2-21kg (4.4-46.2lbs) 6-25kg (13.2-55.1lbs) Pan-tilt drag 5 selectable fluid drag positions + 0 7 selectable fluid drag positions + 0 7 selectable fluid drag positions + 0 Pan range 360°... - Page 9 Specifications 1072 Arrow 3 Fluid Head 1074 Arrow 5 Fluid Head Counterbalance Performance Counterbalance Performance Payload Range 1-19kg (2.2-41.8lbs) Payload Range 2-21kg (4.4-46.2lbs) 1076 Arrow 7 Fluid Head Counterbalance Performance Payload Range 6-25kg (13.2-55.1lbs)
- Page 10 Specifications Fig. 7 Fig. 8 10 9...
-
Page 11: Spare Parts And Accessories
Storage Service, Sales and Support Miller Authorised Service Agents must carry out all service and The Arrow Fluid Head can be stored for extended periods; Miller repair work. Failure to observe this requirement may void war- recommends storage in a Miller Soft Case and the following: ranty. - Page 12 millertripods.com MILLER CAMERA SUPPORT EQUIPMENT 30 Hotham Parade Artarmon, Sydney NSW 2064 Australia Tel: +61 2 9439 6377 Fax: +61 2 9438 2819 Email: sales@miller.com.au D10442-1...
