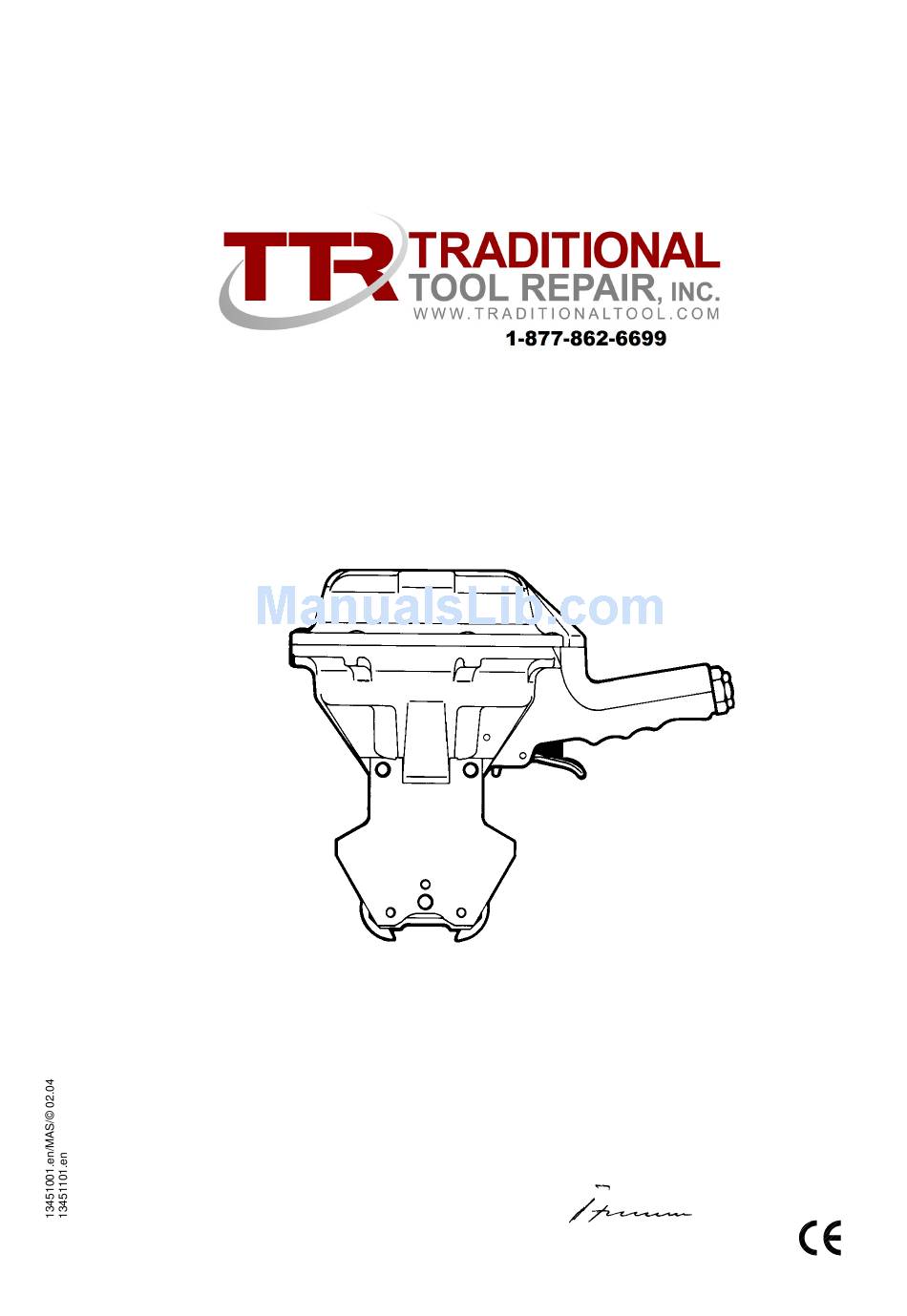

OPERATION MANUAL / SPARE PARTS LIST
PNEUMATIC SEALER
MODEL A461.0002
13.4510.01 - 13.4511.01
CE Declaration of conformity
We declare that the machine A461
is in conformity with the following standard or
standardised documents:
98/37/EEC
FROMM Holding AG
Hinterbergstrasse 26
CH - 6330 Cham
25.02 2004
R.Fromm
Director
Sales and Service 877-862-6699
Advertisement
Table of Contents
Summary of Contents for Traditional Tool Repair Inc. A461.0002
- Page 1 OPERATION MANUAL / SPARE PARTS LIST PNEUMATIC SEALER MODEL A461.0002 13.4510.01 - 13.4511.01 CE Declaration of conformity We declare that the machine A461 is in conformity with the following standard or standardised documents: 98/37/EEC FROMM Holding AG Hinterbergstrasse 26 CH - 6330 Cham 25.02 2004...
-
Page 2: Table Of Contents
WARRANTY CONDITIONS AND LIABILITY APPROPRIATE USE CHART OF TYPES A461.0002 TECNICAL DATA Dimensions ..........5 Compressed air . -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read these instructions carefully. Failure to follow these instructions can result in severe personal injury. Eye injury hazard Strap breakage hazard Failure to wear safety glasses with side shields can result in Improper operation of the tool, excessive tensioning, using strap severe eye injury or blindness. -
Page 4: Warranty Conditions And Liability
The warranty / liability excludes: • non appropriate use of the tool, • disregard of directions in the operation manual, • disregard of control- and maintenance instructions. CHART OF TYPES A461.0002 Item No. Model Strap width Strap thickness Uniflex Ultraflex 13.4310... -
Page 5: Tecnical Data
TECNICAL DATA Dimensions Assembling "N" Assembling "P" Weight net: 4.2 kg / 9.3 lbs Compressed air Joining thread: G 1/4" or G 3/8" Tube: Min. inside diam. = 8 mm / 5/16" Max. air pressure: 6 bar / 87 psi Air consumption: 7.25 Nl / 0.26 cu.ft./seal Steel strap... -
Page 6: Sound Information
Sound information The A-weighted equivalent continuous sound level at the work place of the machine operator is typical 84 dB (A). This value was determined according to DIN 45 635 T3 (11.85). Vibration information The weighted effective value of the acceleration typically amounts to less than 2,5m/s This value was determined according to DIN EN 28 662 T1 (01.93). -
Page 7: Use
Feeding the strap The strap is fed through the seal, around the package to be strapped and pushed again through the seal. Then the strap end is bent. Afterwards the operator tensions the loose hoop manually making sure that the bent strap end is adjacent to the object to be strapped. - Page 8 N2.4902 N4.9159 N41.9128 N1.1815 N41.9129 N1.1815 A46.2150 Ž A46.2151 Œ N1.2114 A46.2152 N2.5198 N6.6208 A46.2146 A46.0108 A46.2128 N6.6204 N4.9136 N2.5180 N6.6123 A46.2125 N2.4902 N1.1808 A46.2127 N2.2124 N6.6204 A46.2129 A46.2132 N6.6213 A46.2154 N2.2118...
-
Page 9: Spare Parts List 13.4510.01/13.4511.01
SPARE PARTS LIST 13.4510.01/13.4511.01 13.4510.01 A461/32/0.80-0.90/N A461.0002.01 15/06/98 13.4511.01 A461/32/0.80-0.90/P Item-No. Pcs. Description Dimension Field [A46.0105] 1 JAW ASSEMBLY [A46.0108] 1 CYLINDER BOTTOM A46.2109 ->[A46.0105] 4 NOTCHING KNIFE A46.2113 ->[A46.0105] 1 DISTANCE SUPPORT A46.2116 ->[A46.0105] 4 CUTTING JAW A46.2117 ->[A46.0105] 2 JAW PIN A46.2118... -
Page 10: Joint Control
10 JOINT CONTROL A regular control of the joint is necessary. The joint can be checked visually and the person controlling can easily judge the quality of the joint. Following illustration shows a proper joint: Sharp edged or misformed joints which do not appear as shown have to be taken away from the load immediately. -
Page 11: Accessories
12 ACCESSORIES Following suspension brackets can be mounted on the tool and have to be ordered separately: Suspensions for tool assembling „N“ Universal suspension Suspension Suspension A46.2201 A46.2210 A46.2216 for normal, vertical and left side right side horizontal working position Suspensions for tool assembling „P“... - Page 12 A4610002en.teil2 Sales and Service 877-862-6699...
