SWIT Electronics Co.,LTD. S-2430C User Manual

S-2430C/S-2440C
SMD Panel LED Light
Ver: A
Congratulations on your purchase of this product. Please read this user manual carefully.

Feature

1. Adopt ultra-bright Surface Mounted LEDs with accurate color
temperature and 50,000hrs long life time;
2. 3200K-5600K continuously adjustable color temperature;
3. 10% to 100% PWM digital integrated dimming, and the
process is smooth, stable and no ash;
4. DMX512 dimmer and color temperature control;
5. Wider beam angle and soft spread light;
6. Barn doors can be adjusted according to request of shooting
sculpting, convenient and exible;
7. Powered by AC-DC adaptor or V-mount battery;
8. LCD displays current color temperature, dimmer percentage
and DMX address;

Specifications

Model S-2430C
1152PCS of
LED ultra-bright SMD LEDs
Luminance Appr. 2500 Lux@1m
Beam angle
Color
3200K±200K～5600K±300K
temperature
CRI
TLCI
Power 100W
Working
voltage
Dimension 630×440×83mm
Lighting area 477×237mm
Weight Appr. 5.8Kg
Power cable(x1), AC power adaptor(x1),
Standard
accessories
Barn door(x1), U shape holder(x1),
DMX cable(x1), Safety rope(x1)
Caution
1. Please DO NOT disassemble the light.
2. Please DO use the safety ropes when hanging the light.
3. Only use the provided adapter to avoid damage.
4. Only use the light in the temperature range of -10°C~40°C.
USER MANUAL
S W I T E l e c t r o n i c s C o. , LT D.
S-2440C
576PCS of
ultra-bright SMD LEDs
Appr. 1250Lux@1m
appr.70º
≥93
≥97
50w
DC 12V～17 V
395×375×83mm
237×237mm
Appr. 4.1Kg

Clean

1. Please clean the front LED panel with soft dry cloth. If using
soft cloth with slight clean neutral detergent solution, please
wipe again with a soft dry cloth.
2. Do not use wet cloth, anhydrous alcohol, gasoline, or a
mixture of anhydrous alcohol and ether etc. to wipe the front
LED panel, to avoid damage.

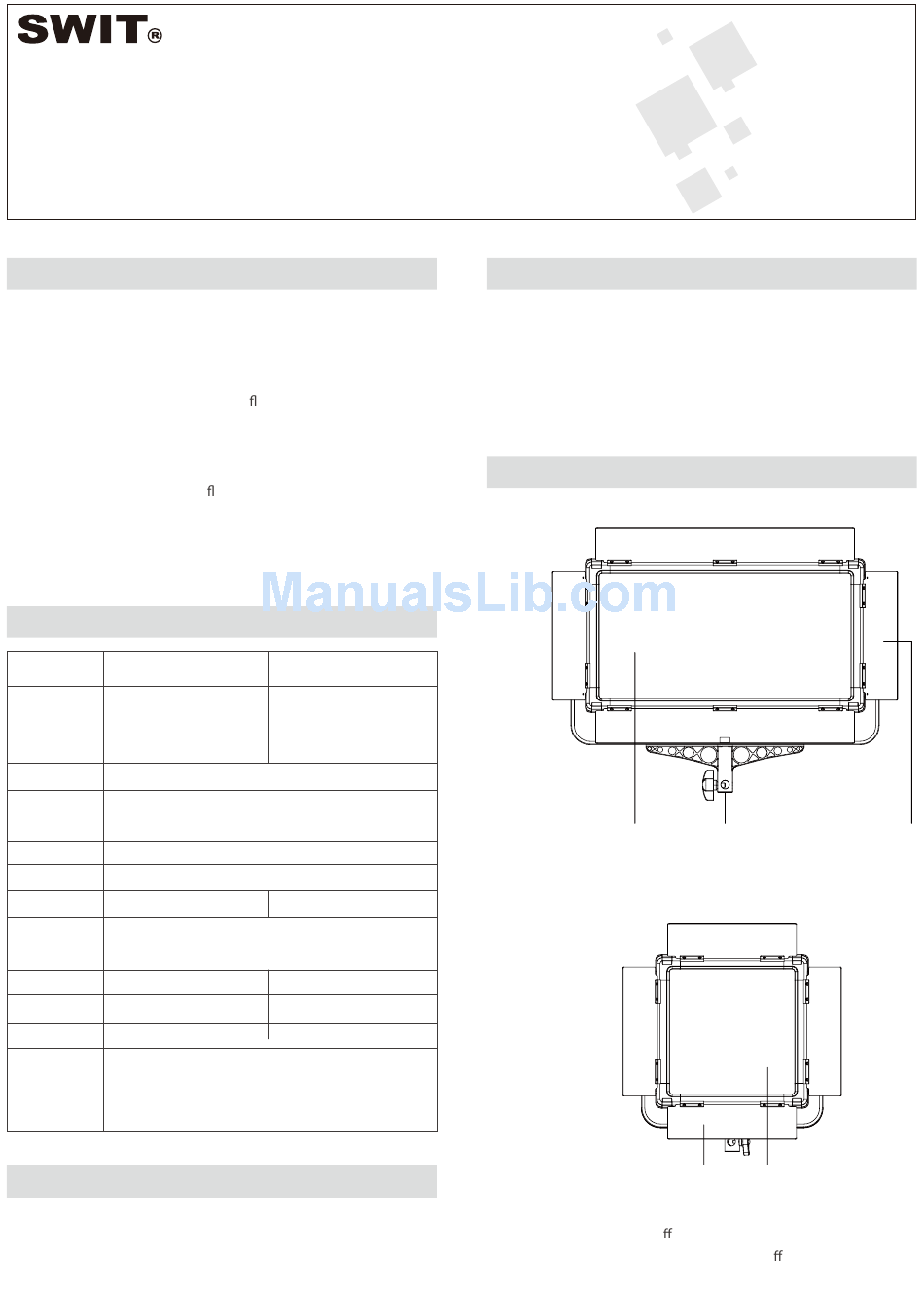

Appearance

S-2430C Front View:
1
S-2440C Front View:
1 Di user
2 Spigot
3 Barn door
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
2
Fig 1
4 5
Fig 2
4 Barn door
5 Di user
3
