Suttle MediaMAX MXM-521 Installation Instructions

TM
MediaMAX Gateway Termination Module
MXM-521: Voice and data termination module

Package Contents

Gateway voice/data module (tool-less)
■ ■
Designation label
■ ■
Instructions
■ ■
1

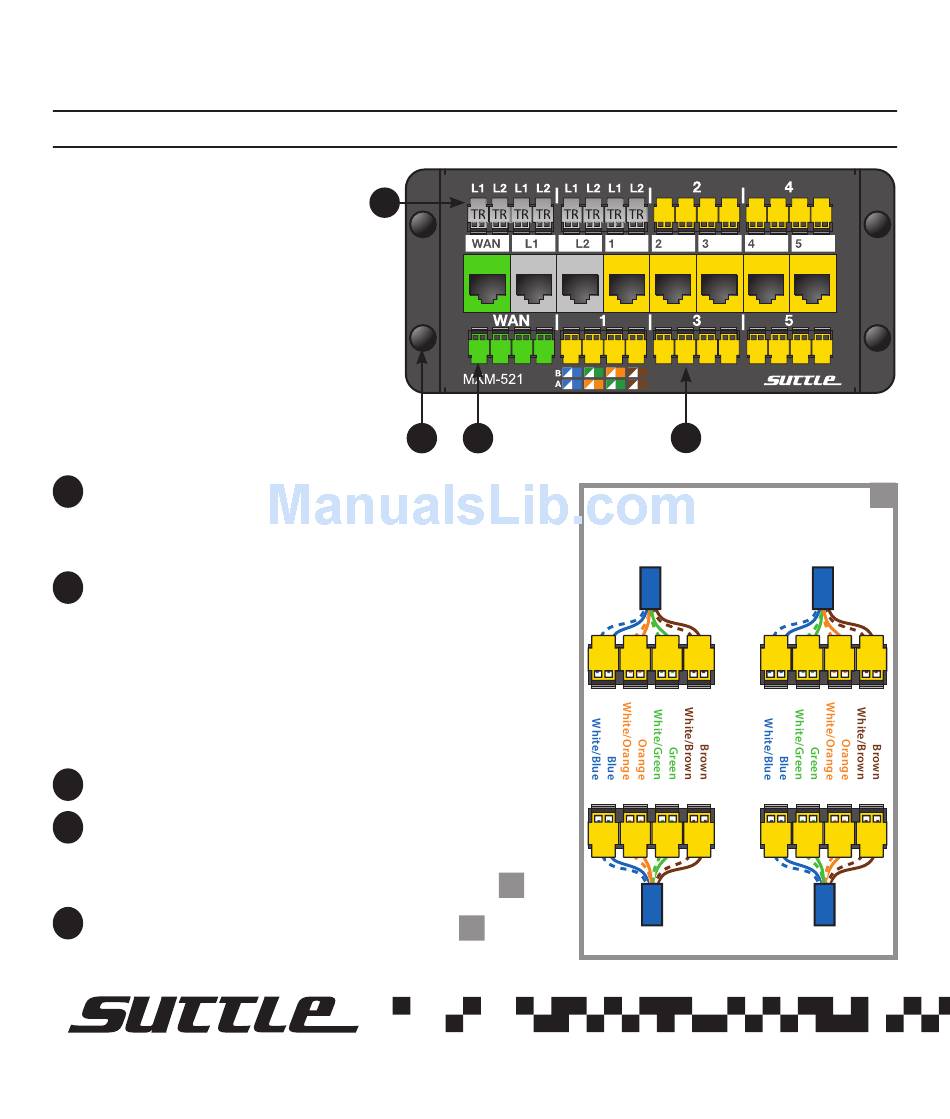

Mount module to enclosure backboard.

a) Position module with mounting pins aligned to grid holes.
b) While holding the module in place, pull each pin plunger OUT then
firmly push the plunger IN to secure the module to the backboard.
2
Terminate incoming copper service lines (green) for voice/ data.
a) Strip 1.5 in. of outer jacket from the cable.
b) Insert wires into green toggle actuator holes according to
selected wire configuration.
c) Insert the white/blue wire in the left hole.
d) Insert the blue wire in the right hole.
e) Repeat steps c and d with the orange, green, and brown wires.
f ) Close toggle actuator to terminate each wire pair.
Note: Maintain twist as close to the toggle actuator as possible.
3

Terminate incoming fiber service line directly to ONT.

4

Terminate outgoing cables

a) Terminate voice-only output cables to gray terminals as shown on
module
b) Terminate voice/data output cables to yellow terminals.
5

Connect module to media gateway/ONT as shown.

4
1 2
A
B
Installation Instructions
4
568A Wiring 568B Wiring
Ports 2, 4
Ports 1, 3, 5
A
