advanced PANMOBIL systems GmbH & Co. KG powerlineECCO Plus Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
powerlineECCO+
Manual
POWERLINEECCO+ MANUAL

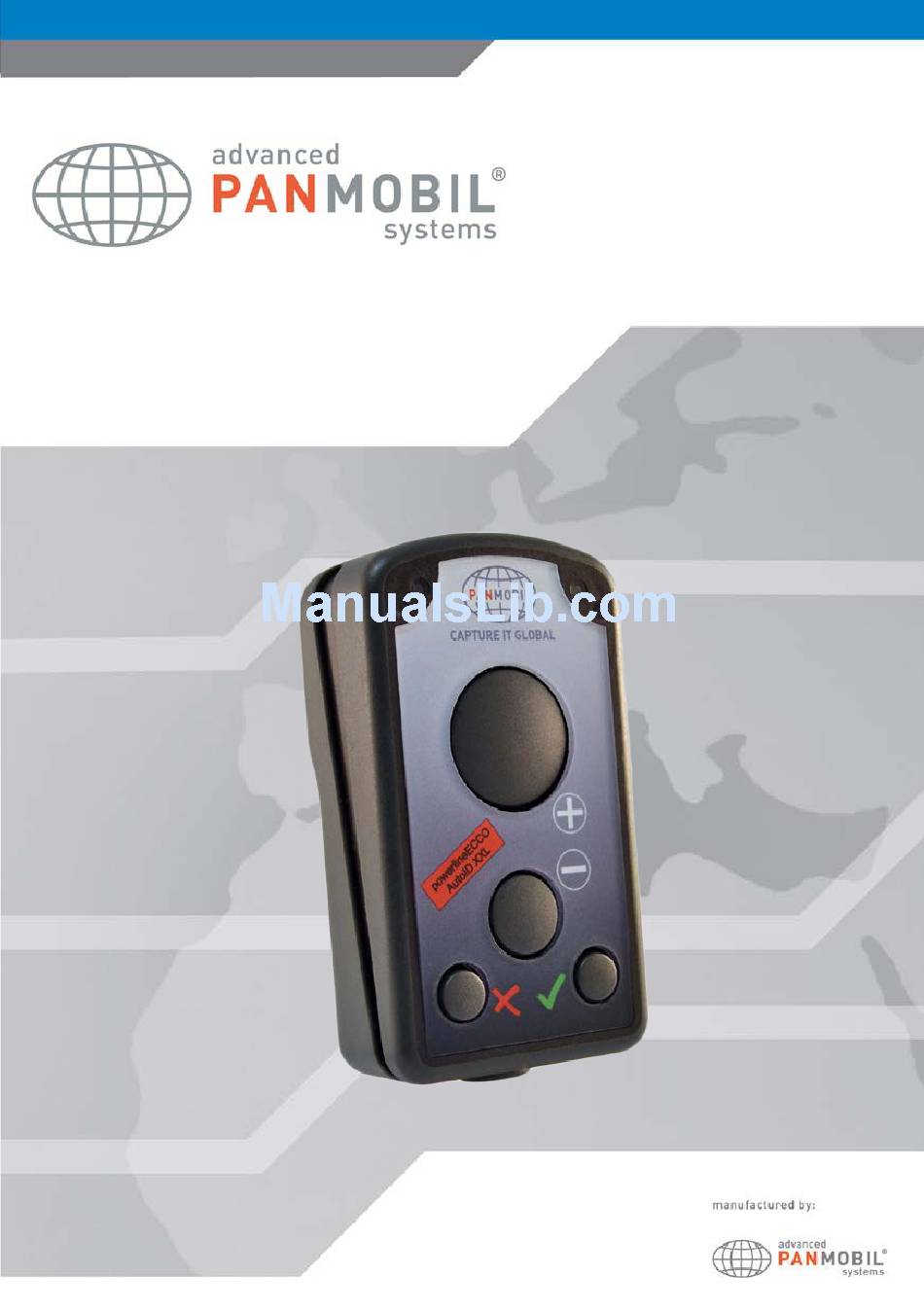

Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the powerlineECCO Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for advanced PANMOBIL systems GmbH & Co. KG powerlineECCO Plus

  • Page 1 powerlineECCO+ Manual POWERLINEECCO+ MANUAL Page 1...
  • Page 2 © 2014 by advanced PANMOBIL systems GmbH & Co. KG This manual contains proprietary information of advanced PANMOBIL systems GmbH & Co. KG. It is intended solely for the information and use of parties operating and maintaining the equipment described here in. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the expressed written permission of advanced PANMOBIL systems GmbH &...

  • Page 3: Product Reference

    PRODUCT REFERENCE powerlineECCO+ Introduction PANMOBIL’s powerlineECCO+ devices capture and store barcode and RFID data for a variety of uses, and transmit barcode and RFID data to a host via USB connection, Bluetooth or Wi-Fi. This document provides a basic instruction using the powerlineECCO+ device.
  • Page 4 No. Description Function Green LED Lights up green when ECCO+ is turned ON. When the battery level is empty, it flashes every 2 sec (Further function can be user defined with the programming interface) Yellow LED Lights up yellow if a barcode or RFID tag was read successfully.

  • Page 5: Charging The Battery

    Scanning window Protection glass for the barcode and RFID reader. To have the best reading performance, keep the glass clean and free of scratches. RFID antenna (option) Antenna for RFID reader/writer Clip holder (accessories) Holder to fix the shirt clip, belt clip or neck belt (accessories) Int.
  • Page 6 1. Remove the USB protection clip (9) from the device 2. Connect the device to the USB port of a computer or to the USB power adapter (accessories) 3. As long as the battery is charging, the red LED (3) lights solid red 4.
  • Page 7 SCANNING BARCODE (1D/2D Imager) 1. Aim the scanner on the barcode 2. Press the Trigger button (5) 3. The device decodes the barcode closest to the cross center unless you disable the Pick-List mode (see below) in the 2D cameras. 1.
  • Page 8 SCANNING RFID 1. Aim the scanner on the RFID tag 2. Make sure the tag is within the reader range 3. Press the trigger key (5) to read data of the RFID tag The device beeps and the right LED (2) turns yellow to indicate a successful decode. POWERLINEECCO+ MANUAL Page 8...

  • Page 9: Bluetooth Connection

    BLUETOOTH CONNECTION To pair the Bluetooth enabled devices to a Bluetooth enabled host. Connect the device to the host using the USB port and use the Master Setup to set the data output mode to Bluetooth. Select the Bluetooth profile supported by the host or required by the application.
  • Page 10 NUMMERIC BARCODES FOR BLUETOOTH PAIRING ENTER POWERLINEECCO+ MANUAL Page 10...
  • Page 11 Wi-Fi CONNECTION To connect Wi-Fi enabled devices to a host. Connect the device to the host using the USB port and use the Master Setup to set the data output mode to Wi-Fi. Open the file “config.ini” setup the parameters for Wi-Fi and host connection (See the document “Config_ini”...

  • Page 12: Troubleshooting

    If the device was configured to store the out of range captured data, it stores the data in a file Cache.txt. After reconnection, it transmits all cached data to the host. Bidirectional communication for Bluetooth and Wi-Fi connected devices For applications that require bidirectional communication between the device and the host, PANMOBIL devices support an embedded communication protocol SCOMP and REMOTE mode.
  • Page 13 Ensure that your Wi-Fi Configuration (in Config.ini File) is correct (SSID, Key, Crypto, Host, Port, DHCP etc.) Move the device closer to your access point Barcode reading ability has Maybe the scan window has become dirty. degraded Please clean your Scan Window with a soft cloth with water Nothing happens when the Make sure your device is powered on.

  • Page 14: Safety And Regulatory

    SAFETY AND REGULATORY Interference statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 This equipment is intended to be commercialized in all the countries of the European Union and there is no commercialization or operational restrictions in any of the countries. Hereby, advanced PANMOBIL systems GmbH & Co. KG declares that this Bluetooth barcode scanner is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC European countries, where this equipment can be used are : Austria (AT) - Belgium (BE) -...
  • Page 16 South Korea Australia Argentina CNC ID:H-16381 Taiwan Brasil Russia China CMIIT ID: 2016DJ3998 Ergonomic Recommendations Caution: In order to avoid or minimize the potential risk of ergonomic injury follows the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury.
  • Page 17 Improve work procedures Perform tasks at correct heights Provide adjustable workstations Provide adequate clearance Reduce or eliminate direct pressure Reduce or eliminate vibration Provide a suitable working environment Vehicle Installation RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
  • Page 18 Safety in Aircrafts Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult airline staff and ask for its use in flight. Safety in Hospitals Wireless devices transmit radio frequency and may affect medical electrical equipment.
  • Page 19 RF Exposure Guidelines Safety Information Reducing RF-Exposure – Use properly Only operate the device in accordance with the instructions supplied. International The device complies with international standards covering human exposure to electromagnetic fields from radio devices. To comply EU RF exposure requirements, this device must be operated in the hand with a minimum separation distance of 20cm from a person’s body.
  • Page 20 sunlight. Avoid that the laser beam hits the eye of an observer, even through reflective surfaces like mirrors, etc. The following information is shown on the laser scanner device class label: Limited Warranty The manufacturer warrants that the product will be free of defects in material and workmanship for 2 years from the date of shipment.
  • Page 21 attachment of any feature, program, or device to the products by a person or entity other than manufacturer, failure to provide a suitable installation environment, use of the products for other than the specific purpose for which the products are designed or any use of the product not in accordance with the User Guide or other misuse or abuse of the product.
