Summary of Contents for Telepro HEIM-48

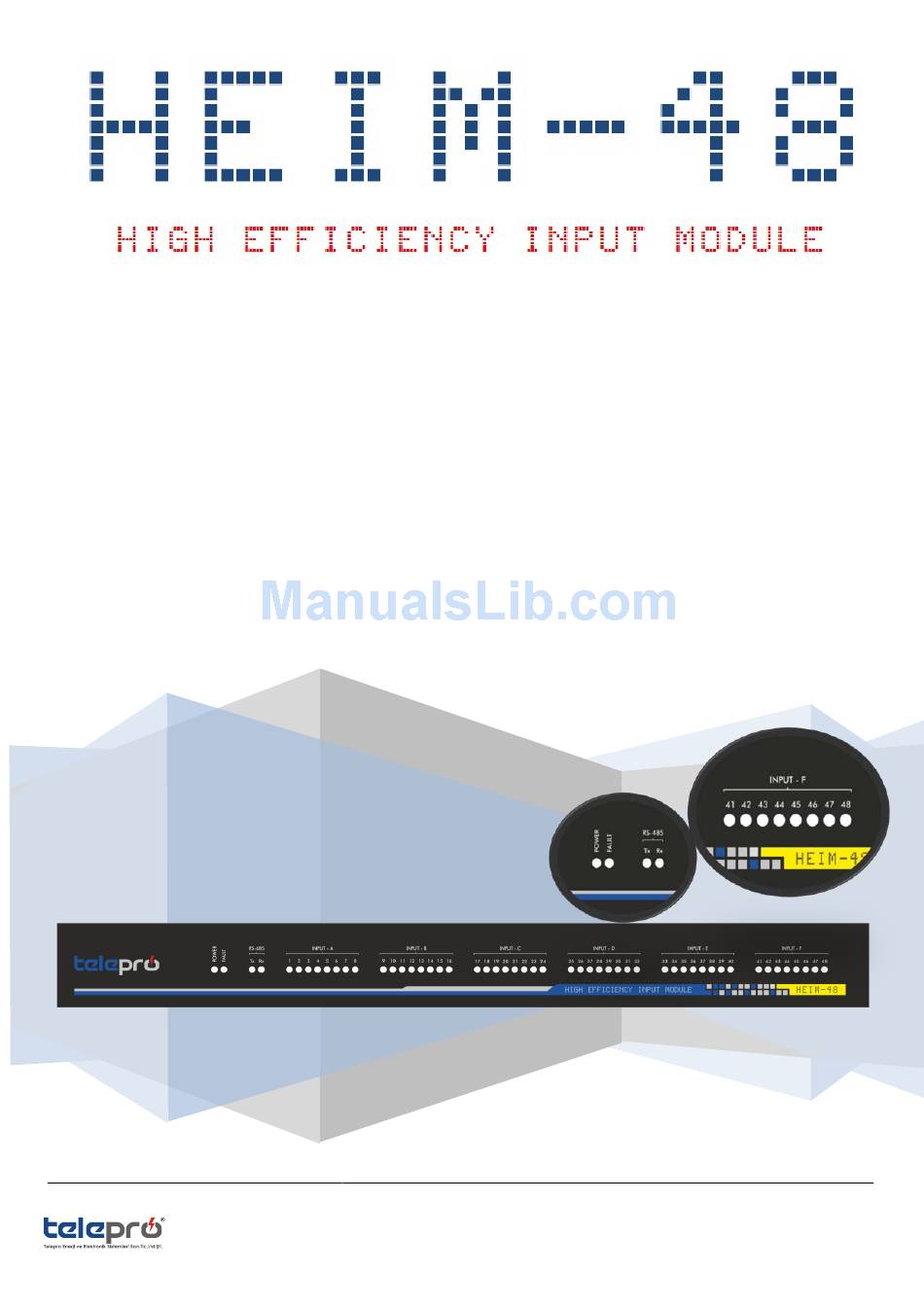

- Page 1 INPUT MODULE Installation & Operation Manual Page : 1 / 14...
- Page 2 Make sure that this manual is delivered to the final user. The policiy of Telepro Enerji is one of continuous improvement .The right is reserved to alter the design on any structural details of the products at any time without giving notice.
-
Page 3: Table Of Contents
3.4. Sımulatıng Heım-48 ın the ISPSIM™ Tool ........................9 3.5. Heım-48 FW Fıle Upload ..............................9 4. HEIM-48 TECHNICAL SPECIFICATIONS ..................10 5. HEIM-48 INPUT MODULE MODBUS REGISTER MAP ..............11 6.HEIM-48 WIRING SCHEME......................12 7.REMOTE CENTER MONITORING&EVENT RECORDING SOLUTION WITH HEIM-48 & HEEP-3000 ................................ -
Page 4: Connections
1. CONNECTIONS All connections to HEIM-48 are made from the terminals on the rear of the unit .For wiring, 12 AWG (2.5mm2) wires should be used.Always turn the device input power OFF before all service,maintenance and wiring actions. Below indicated terminals of the device are grouped and of quick disconnec plug in type. All pins of each terminal could be connected or disconnected to/from the device in one action. -
Page 5: Power Supply
1.2. P OWER UPPLY HEIM-48 Input Module is to be supplied with 110/220 VDC (optionaly 24/48VDC). Supply connection should be done as seen below. 2. FRONT PANNEL DISPLAY FUNCTIONS LED’s on the front panel of HEIM-48 are divided into 3 main groups. -
Page 6: Device Status Dısplays
ISPLAYS With the help of 48 pcs of LEDs, it is easy to get information related with input signals to the HEIM-48 device from the field.In case of any ON signal to a channel,LED corresponding to the channel is to be ON.If signal is OFF, the LED goes OFF. -
Page 7: Configuration With Ispsim Tm Software Tool
(w w w . t e l e p r o . c o m . t r ) with the user code access for customers purchasing HEIM-48.It is easy to setup software by following instructions inside the file.After that, when ISP ™... -
Page 8: Performıng Confıguratıon
ERFORMING ONFIGURATION Please click the “Configuration” button on the main window of Telepro ISP ™ tool. Below submenu called “Heim48 configuration” will be opened.For the first start of the tool, it will give a warning saying “unable to load CONFIG file”... -
Page 9: Sımulatıng Heım-48 In The Ispsim™ Tool
PLOAD In this section, we will explain how to upload HEIM-48 Firmware file provided inside the tool to the device. Our device will have the latest version of firmware as loaded when first receiving. But in case of update needed later,uploading new firmware version will be done from this menu . -
Page 10: Heim-48 Technical Specifications
4. HEIM-48 TECHNICAL SPECIFICATIONS * indicated features are optional HEIM-48 24/48Vdc 110/220Vdc Supply Supply Voltage 18-72Vdc 65-300Vdc Supply Power Inputs Qty of Inputs Type of Inputs Optical isolated, Varistor Protected, Common return terminal transient filtered Input Current/ Per channel Max. 5 mA Max. -
Page 11: Heim-48 Input Module Modbus Register Map
5. HEIM-48 INPUT MODULE MODBUS REGISTER MAP Adress Size Value Description (Hex) 0x0001 R Bit 0..7 0x6E Firmware Model Id Bit 8..15 Firmware Version 0x0002 R Bit 0..7 0x6E Boot (Hardware) Model Id Bit 8..15 Boot (Hardware) Version 0x0030 W/R Long... -
Page 12: Heim-48 Wiring Scheme
6.HEIM-48 WIRING SCHEME Page : 12 / 14... -
Page 13: Remote Center Monitoring&Event Recording Solution With Heim-48 & Heep-3000
7.REMOTE CENTER MONITORING&EVENT RECORDING SOLUTION WITH HEIM-48 & HEEP-3000 8. APPENDIX-1 INSTALLATION & OPERATION MANUAL REVISION HISTORY Revision Page Revision Details Software Version Page : 13 / 14... - Page 14 Page : 14 / 14...
