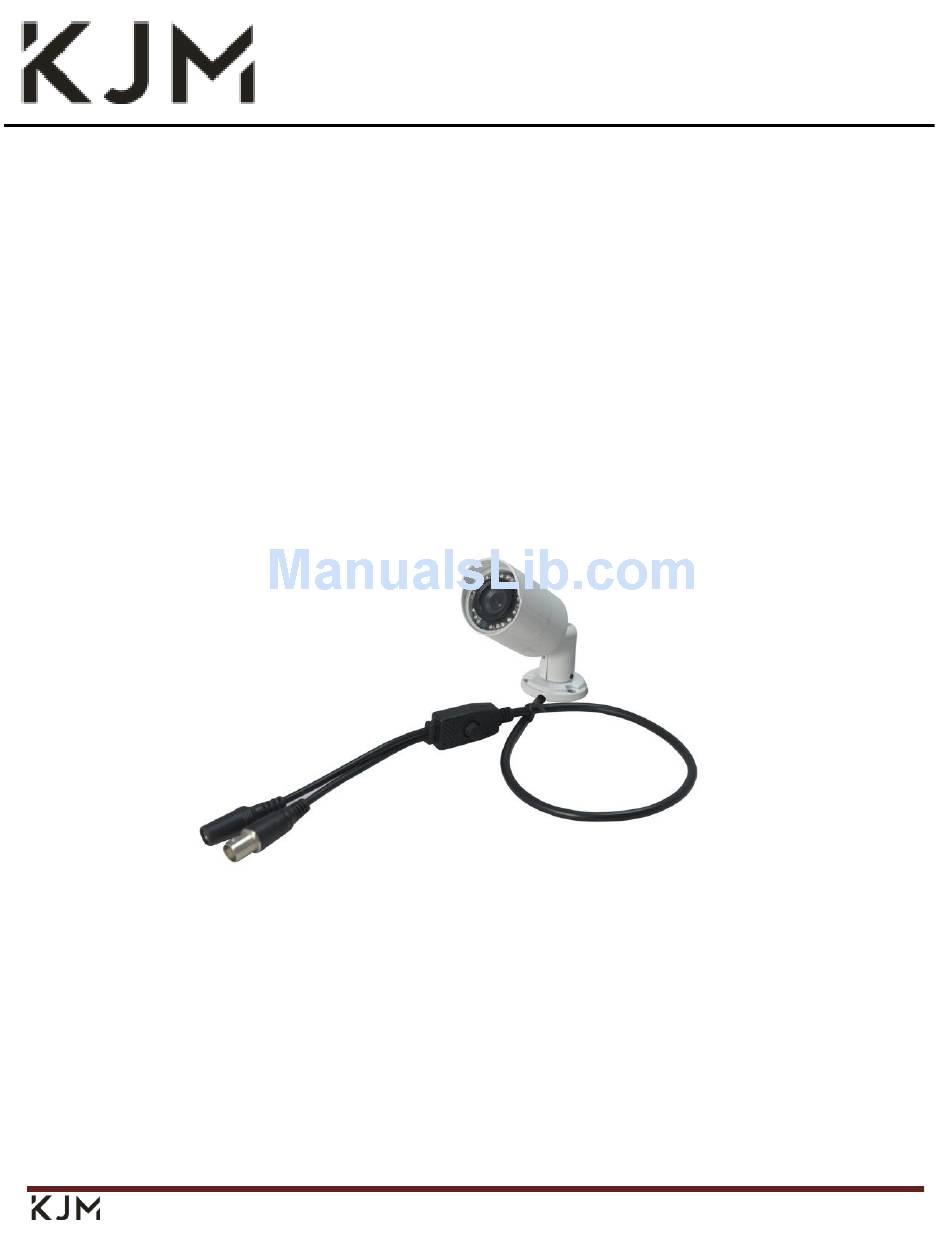

- Page 1 Mini Bullet Camera With On Screen Menu Installation and Operating Guide Page 1...
- Page 2 KJM is dedicated to providing the finest in shipboard cameras and video equipment. Our high quality cameras are built to withstand the harsh marine environment, and are designed by people with over three decades of experience in the marine industry. KJM cameras provide crystal-clear images of whatever you need to monitor, from the engine room to the aft deck.
- Page 3 INITIAL SETUP 1. Run a power (12VDC Only) video cable (COMB-10 or COMB-25) from the chart plotter or monitor to the cameras final location and connect to the camera power and video cables. 2. Locate the OSD Menu switch on the camera power/video cable and press it in to show the main menu on the chart plotter or monitor.
- Page 4 Layer 2 Layer 1 Layer 3 Layer 4 Note AE mode Standard AE Standard exposure mode Smart WDR 0~3 [0] Double scan wide dynamic SWDR range mode Auto switch SWDR mode by Auto, On [Auto] Auto switch program or manual open The proportion of WDR long and short exposure, the smaller Level...
- Page 5 Color: Color mode BW : Black and white mode Auto-Progressive : Human-like progressive black and white mode Color, BW, Auto-Progressive, Auto-General : General black D&N mode Auto-General, EXT [EXT] and white mode EXT: Switch by external signal, input from PIO 1 of main board. At the same time, need to set detect level that under [System setting]->[IR input level]...
- Page 6 Set sensitivity of motion -2 ~ 2 [0] Sensitivity detection Set the output level of motion Warning trigger High, Low, Off [Off] detection, Output pin is PIO 3 of main board. Alert time from GPIO when Alarm time 0~65535 [10] motion object detected D-Zoom Digital zoom...
- Page 7 SPECIFICATIONS Φ:36mm x L:55mm x H:40mm Dimensions Weight 100g. Material Aluminum, W hite Power Coat Finish Environmental Rating IP66 SONY 1/3” 960H HAD CCD Sensor Camera Sensor Picture Elements NTSC: 976(H)*494(V) ; PAL:976(H)*582(V) Camera Resolution 800 TVL White Balance AWB ( 2000°K ~10500°K ) Digital slow shutter Auto x2...x256 1/50...1/100000 3D / 2D...
- Page 8 LIMITATION OF LIABILITY This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of the third parties right. This publication could include technical inaccuracies or typographical errors.
