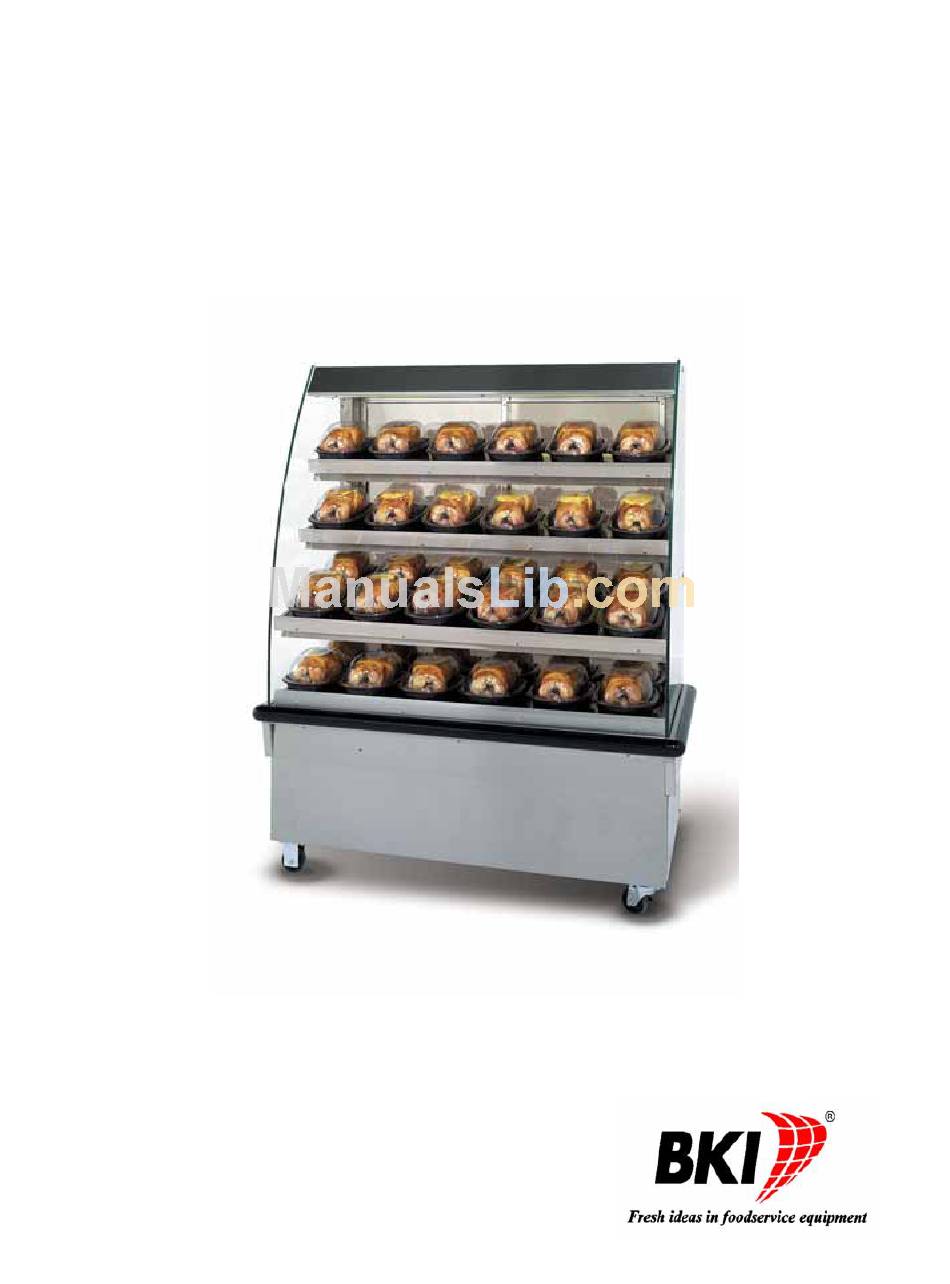

- Page 1 Multi-Deck Warmer MODEL MDW Installation & Operation Manual Serial Numbers 121764 and Higher...
-
Page 2: Warranty Information
Warranty Information LIMITED ONE YEAR WARRANTY BKI (The "Company") warrants to the original purchaser that at time of shipment from the Company factory, this equipment will be free from defect in materials and workmanship. Written notice of a claim under this warranty must be received by the Company within ONE YEAR from the date of installation, but no longer than ONE YEAR AND THREE MONTHS from date of shipment from the factory. -
Page 3: Table Of Contents
Table of Contents... 1 Introduction ... 2 Safety Precautions... 2 Safety Signs and Messages... 2 Safe Work Practices ... 3 Operation ... 4 Controls and Indicators... 4 Shelf Power/Lighting ... 4 Shelf Temperature... 4 Power Up and Preheating... 4 Temperature Adjustment ... 4 Operational Guidelines ... -
Page 4: Introduction
The MDW is a multi-tier, self-serve hot food merchandiser. It consists of heated glass shelves, individual shelf lighting, and electronics for powering the shelves, lighting the shelves and controlling the temperature of each shelf. This unit is for use with prepackaged foods only. This unit is manufactured by BKI which assures you of the finest in design and engineering -- that it has been built with care and dedication -- using the best materials available. -
Page 5: Safe Work Practices
Multi-Deck Warmer Safe Work Practices Beware of High Voltage This equipment uses high voltage. Serious injury can occur if you or any untrained or unauthorized person installs, services, or repairs this equipment. Always Use an Authorized Service agent to Service Your Equipment Beware of Hot Surfaces. -
Page 6: Operation
Controls and Indicators Refer to Figure 1 and the following sections for an explanation of controls and indicators. Shelf Power/Lighting The POWER ON/OFF circuit breaker allows you to turn all shelves ON or OFF. This device provides overload, short circuit and ground fault protection. When an overload or earth leakage ground fault condition occurs, the circuit breaker will trip causing the actuator to move to the OFF position and the leakage trip indicator LED to illuminate. -
Page 7: Unit Shutdown
Multi-Deck Warmer Foods held for long periods of time are more difficult to maintain at proper temperature. Also, freshness and product quality diminish if foods are held too long. Most areas of the country have sanitation regulations governing how long foods can be held. Make certain to check with your local authorities. Unit Shutdown 1. -
Page 8: Installation
Multi-Deck Warmer Unpacking and Handling YOU are responsible for filling all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage to cartons or crates is found, or if a shortage is found, note this on the bill of lading (all copies) prior to signing. - Page 9 Multi-Deck Warmer Installation Figure 2. Floor Model – Leveling & Kick Plate Mounting...
-
Page 10: Counter Model
Multi-Deck Warmer Counter Model Counter mounted units must be mounted on a level surface that can support the weight of the unit and it’s contents. Use a carpenter’s level to level the unit. These units are to be sealed to the counter if required by local health codes. Seal the perimeter of the units to the counter using a silicone-type sealant (Dow Corning RTV #732 or equivalent). -
Page 11: Maintenance
Multi-Deck Warmer Failure to comply with the maintenance below could result in a serious accident. Electrocution, equipment failure or property damage could result if an unlicensed electrician performs electrical repair. Ensure that a licensed electrician performs electrical repair. Scheduled Maintenance Use the following table to help manage scheduled maintenance activities. -
Page 12: Troubleshooting
Multi-Deck Warmer Troubleshooting Refer to the table below for troubleshooting information. Problem Shelves Not Heating and Lights Not On Power Circuit Breaker has Tripped No Heat to Single Shelf Individual Light is not On Holding Temperature Not Adequate Switch Plate Pilot Light is Cause Unit not plugged into power receptacle. -
Page 13: Notes
Multi-Deck Warmer Notes Notes... - Page 14 Multi-Deck Warmer Notes...
- Page 15 Multi-Deck Warmer Notes...
- Page 16 P.O. Box 80400, Simpsonville, S.C. 29680-0400, USA http://www.bkideas.com Made and printed in the U.S.A LI0189/0407...
