DMX -8 User Quick Manual

METER BRIDGE
FADER CHANNELS (X8)
CHANNEL
FADER CONTROLS:
SOURCE SELECTOR
(PRESS TO TAKE)
PGM 1 - 4
ASSIGNMENT BUTTONS
(LIT WHEN SELECTED)
CUE (PFL)
TALKBACK
(TO TELCO SOURCES)
CHANNEL FADER AT
UNITY GAIN POSITION
(-12 dB)
CHANNEL
FADER
OLED DISPLAY
(SHOWS SOURCE NAMES
& CHANNEL STATUS)
CHANNEL ON
CHANNEL OFF
NETWORKED BROADCAST CONSOLE

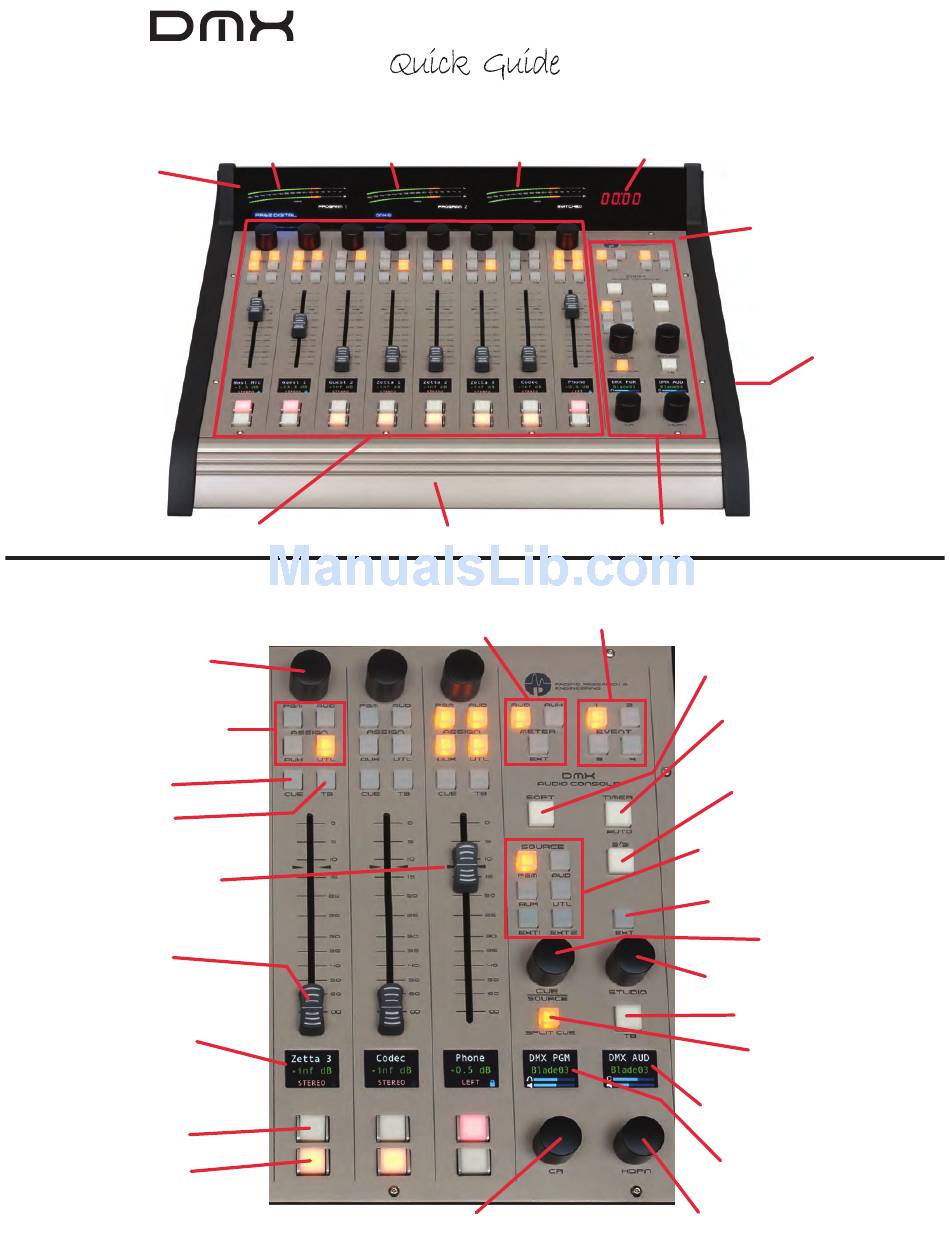

DMX-8 SURFACE PART IDENTIFICATION
(DMX-16 HAS EIGHT ADDITIONAL FADER CHANNELS)
PGM 1 METER PGM 2 METER SWITCHED METER EVENT TIMER
BOARD OPERATOR CONTROLS
SWITCHED METER
SOURCE SELECT
CONTROL ROOM MONITOR LEVEL
PALM REST MONITOR CONTROLS FOR CR & STUDIO
EVENT BUTTONS (X4)
DMX-8: 041394
DMX-16: 041395
CONTROL SURFACE
MODULE
HEADPHONE JACK
(IN SIDE PANEL)
PROGRAMMABLE BUTTON
(FUTURE USE)
EVENT TIMER RESET
(WITH CHANNEL ON,
WHEN LIT)
EVENT TIMER
(MANUAL START/STOP)
CONTROL ROOM MONITOR
SOURCE SELECT
STUDIO SOURCE SELECT
CUE LEVEL
STUDIO MONITOR LEVEL
TALK TO STUDIO
CUE TO HDPN
(STEREO / SPLIT)
STUDIO MONITOR SOURCE
STUDIO & CR HDPN LEVELS
CR MONITOR SOURCE
CR MONITOR & CUE LEVELS
BOARD OP HEADPHONES LEVEL
