- Page 1 QUICK START GUIDE...
-

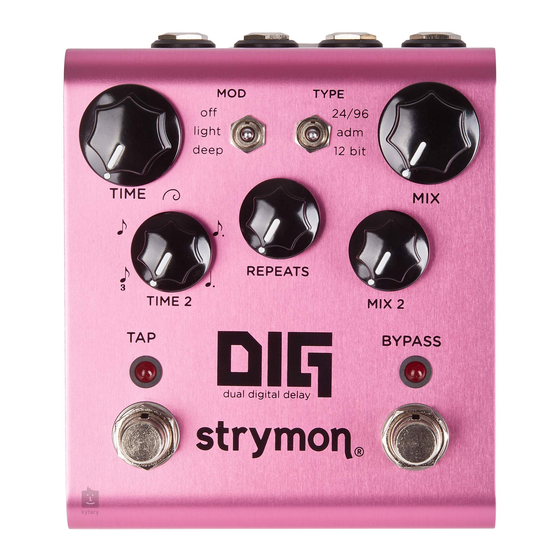

Page 2: Top Panel Functions
TOP PANEL FUNCTIONS TYPE 24/96 – Modern, clean, adm – Early ‘80s adaptive delta 12-bit – Mid ‘80s 12-bit conversion and pure delay with subtle modulation process, providing method gives you slightly darker dynamics processing. snappy, percussive delays. and warmer delays. Controls wet/dry mix for Delay 1. -
Page 3: Rear Panel Connections
250mA “toe down” maximum value. minimum. ADD EVEN MORE CONTROL & FLEXIBILITY Connect the optional Strymon Miniswitch to remotely tap tempo or to quickly access a saved favorite setting. See strymon.net/support for more details. - Page 4 SECONDARY FUNCTIONS & SAMPLE SETTINGS DELAY 1 SUBDIVISION Sets the tap tempo subdivision for Delay 1. Left for Dotted Eighth, center for Quarter note, right for Half note. SYNC/FREE MODE In Sync Mode (left) by default, Free Mode (right) disconnects Delay 2’s tempo for independent time control. DELAY 2 REPEATS Sets the Delay 2 repeats.
- Page 5 REV B...
