Supersonic SC-499 Operation Instruction

Operation Instruction
SC-499

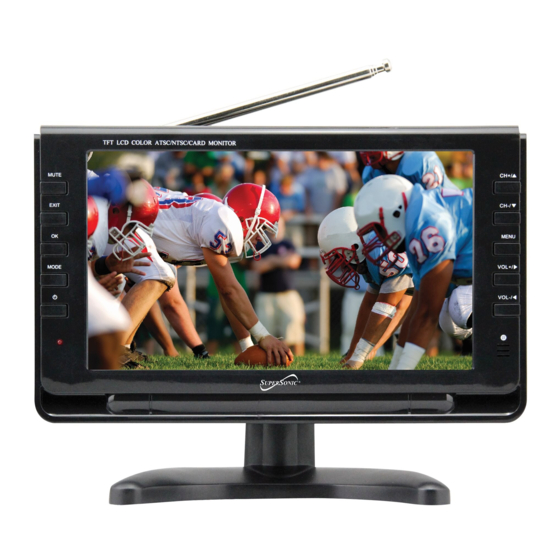

LCD Color digital TV receiver
Iii Appearance
1. Telescopic antenna
2. MUTE: Mute button
3. EXIT: EXIT button
1
4. OK: Confirm button
5. MODE: Mode shift button
2 8
3 9 6. : Standby button
4 10
7. CHG: When with built-in rechargeable
5 11
6 12 batteries,it is charge indicator.It bright
7
13
when recharging,Not bright state,
charging full(Only available for
the machine of internal battery)
8. CH+/ : Channel Select/ ▲
14
Upward button
15
▲
9. CH-/ : Channel Select/
Downward button
10. MENU: Menu button
11. VOL+/ : Volume up/
16 Rightward button
17
12. VOL-/ : Volume down/
18
Leftward button
19
20
13. Remote-control receive
window
14. TFT-LCD screen
15. Antenna input Jack
16. Power on/off
17. AV1 In jack
18. Av2 In jack
19. Headphone jack
20. DC Input
21
21.
SD CARD input port
22
22. USB connect Jack
23. Speaker
23
-3-
Contents
I Precautions
II Accessories
III Appearance
IV Remote Controller Operation Instruction
V Basic Operation
VI TV Menu Operation
6.1. Picture
6.2. Audio
6.3. Time
6.4. Setup
6.5. Lock
6.6. Channel
VII Before Repair
IX Technical Parameter
Iv Remote Controller Operation Instruction
●
(Power Switching Key): When you press this key, the
TV set will be turned off, and press again it will be turned on.
● ZOOM: Picture modes
● FREEZE: Freeze ON/OFF
● (Mute Key): When you press this key, the sound will
disappear, and press again or press VOL+ the sound will return
to normal.
● Channel Key (Number key (0-9) and --/- ):
Press relevant key directly when you want to change channel.
●
: Return Key. Press this key to return to previous channel you
were watching and press again to return to current channel.
● SOURCE: Press this button to switch between TV/AV1/AV2/CARD/
USB mode.
● INFO: When you press this key, the system will show the message
/information of present program.
●
: up and down direction key
● : left and right direction key
● CH+/CH- (Program choosing key):
Press CH+ key to increase the channel.
Press CH- key to decrease the channel.
● VOL+/VOL- (Volume control key):
Press VOL+ to turn up the volume.
Press VOL- to turn down the volume.
● ENTER: confirm button
● MENU: Menu key. When you press this key, the main menu will
display.
● EXIT: Exit Key. Press this key, exit operation and return to the
program.
● AUDIO: Audio language button.
● CC: Close/Open Caption.
● EPG: When you press this key, the system will show the program
guide menu（ATSC mode）.
-4-
I Precautions
■ Storage
1. Keep this product away from extremely hot or cold places. The
storage temperature ranges from -20℃ to 60℃ and the working
temperature from -5℃ to 40℃.
2. Do not use this product at damp environment like bathtubs, wash
1
basins, kitchens, washtubs, as well as basements, swimming pools
or similar places.
2
3. Do not expose your TV set to high humidity, dust or oil smoke.
4. Do not throw or drop this product.
3
5. Do not subject this device to the inside of a case or strong vibrations,
avoiding strong collision.
4
6. Do not push on or scrub this product with sharp objects.
6
■ Maintenance
1. Disconnect all cables of this device at first before cleaning.
7
2. Wipe the enclosure, screen and keys using soft cloth with a little
soft detergent on.
7
3. Do not use polishing cloth, abstergent, and all types of propellants or
chemical detergents like alcohol and benzene to clean your device.
7
8 Warning!
1. Do not watch television programs or turn your TV set on for your
8
own and others' safety.
2. It is very dangerous to watch television programs or operate the
9
TV set while driving.
9
Special Notice
10
1. Bright spots or dark spots may appear on the screen. This is a
11
normal phenomenon associated with the active matrix display
technology and is not a sign of malfunction. Do not attempt to
maintain. For any failures, please turn off your TV set immediately
and contact us or your dealer. This device integrates a great deal
of fine electronic components. Disassembly or alternation may
result in damages or breaks.
2. This Unit is controlled by microcomputer. If it runs abnormally,
please restart it.
-1-
● P.MODE: Image Mode Key. Press this key to choose among the four
image modes of Standard, Dynamic, Soft and Personal.
● S.MODE: switch state among personal/standard/music/movice/sports
● CH.LIST: TV program menu key. When pressing this key, you will
see the entire program list in a program list box.
● FAV.LIST: Faorite list
● SLEEP: Selecting the awitch off time within 240 minutes
● REP: Repeat (only available under CARD/USB mode)
●
:Play/Pause (only available under CARD/USB mode)
●
:Stop (only available under CARD/USB mode)
●
:Previous track (only available under CARD/USB mode)
● :Next track (only available under CARD/USB mode)
●
:Fast backward (only available under CARD/USB mode)
●
:Fast farward (only available under CARD/USB mode)
-5-

II Accessories

1. Car adapter
2. AC adapter
3. 75 ohm antenna conversion cable(screw connector)
4. Remote control
5. AV conversion cable
6. Telescopic antenna
7. User manual
* Open the package and make sure all the items are included.
-2-
V Basic Operation
1. Connection of Power Supply:
Align the power supply plug on
AC adapter with the jack on the
machine rear cover marked with
DC.
2. Connection of Antenna Cable:
75ohm antenna conversion line
Align one end of the attached
antenna cable plug in the antenna
jack on TV set and the other end
plug in the external antenna jack.
3. Connection of AV convert Cable:
AV conversion cable
Insert the external video cord into
the yellow port of the AV convert
cable, the left sound track into the
white port and the right sound track
into the red port. Then plug the AV
convert cord in AV1 IN or AV2 IN jack.
-6-
