Wenzel 7363417 Assembly Instructions

ASSEMBLY INSTRUCTIONS

SAFETY WARNING -
DOs AND DO NOTs
EVERYONE WHO USES THIS SCREEN HOUSE SHOULD READ THIS MANUAL AND BECOME FAMILIAR WITH ALL
SAFET Y WARNINGS AND PREC AUTIONS FOR SAFE USE, ASSEMBLY, C ARE, MAINTENANCE,
AND STORAGE. KEEP THIS MANUAL SO YOU C AN REFER TO IT L ATER.
WARNING
FLAMMABILITY WARNING KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS SCREEN HOUSE FABRIC
This screen house is made with flame resistant fabric which meets CPAI-84 specification. IT IS NOT FIREPROOF. The fabric will burn if left in continuous contact
with any flame source. The application of any foreign substance to the screen house fabric may render the flame-resistant properties ineffective. For these reasons:
• DO NOT use matches, lighters, stoves, heaters, grills, lanterns, candles, cooking equipment, or other fuel-burning devices inside or near a screen house.
• DO NOT build fires inside or near a screen house.
• DO NOT leave campfires unattended.
Your failure to follow this warning will cause death, serious injury, or permanent disability to you or others.
PROTECT YOUR CHILDREN
Children will not understand and appreciate safety warnings, and will not know how to avoid or respond to these hazards if no adults are present.
For these reasons:
• DO NOT leave children unattended inside a screen house or in camp.
• DO NOT allow children to assemble a screen house.
• DO NOT allow children to enter or exit a screen house except through the door.
Your failure to follow this warning will cause death, serious injury, or permanent disability to your children.

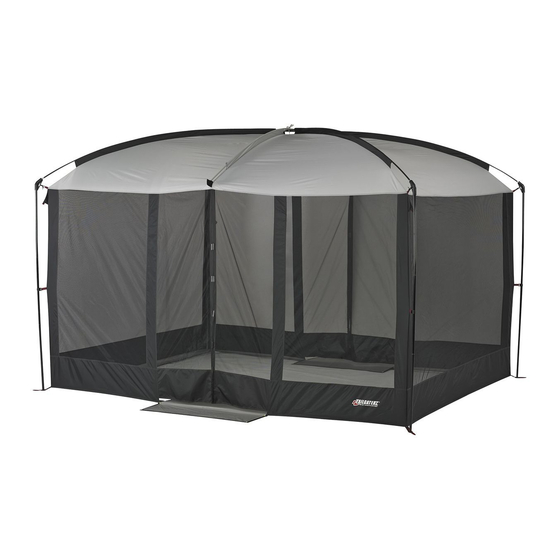

MAGNETIC SCREEN HOUSE
7363417
DO NOT LEAVE YOUR SCREEN HOUSE SET UP IN DIRECT SUNLIGHT LONGER THAN NECESSARY. THE SUN'S
ULTRAVIOLET (UV) LIGHT DEGRADES ALMOST EVERY FABRIC AND MATERIAL. IF LEFT IN SUNLIGHT FOR
PROLONGED PERIODS OF TIME, FABRIC WILL FADE AND WEAKEN. DO NOT STORE SCREEN HOUSE ON
CONCRETE FLOOR. DO NOT SPRAY THE SCREEN HOUSE WITH INSECTICIDE.
EXERCISE CARE WHEN USING ELECTRIC DEVICES IN AND NEAR SCREEN HOUSE.
Although our tents and screen houses are constructed to rigid specifications, periods of wind or rain soaking the
ground may loosen the stakes and cause the uprights to sink into the ground. This will weaken the rigidity of the
overall structure. Water pockets may also form in the roof if the unit is not assembled taut, possibly causing broken
frames and torn fabric.
REPLACEMENT PARTS
If you have questions or need to order a part, call 1-800-325-4121 or send an email to contactus@wenzelco.com. Have your model
number or part number ready when you call. DO NOT ORDER BY REFERENCE KEY NUMBER.
Send your request for parts to:
Exxel Outdoors, LLC.
6235 Lookout Road
Boulder, CO 80301
MODEL NO 7363417, 11' X 9'
KEY
NO.
DESCRIPTION PART NO.
A Main Pole 7363417M
B Ridge Pole 7363417R
C Upright Pole 7363417U
D
Corner Joint 7363417CJ
Complete Frame 7363417ST
Guy Rope A1001
Steel Stake PIN STAKE
Plastic Stake 7.25 STAKE
CARE
QTY
A
B
REQ A
D
D
2
1
4
C
4 C
C
1
4
18
4
11' X 9'
D
D
C
