Pevono PS305 User Manual

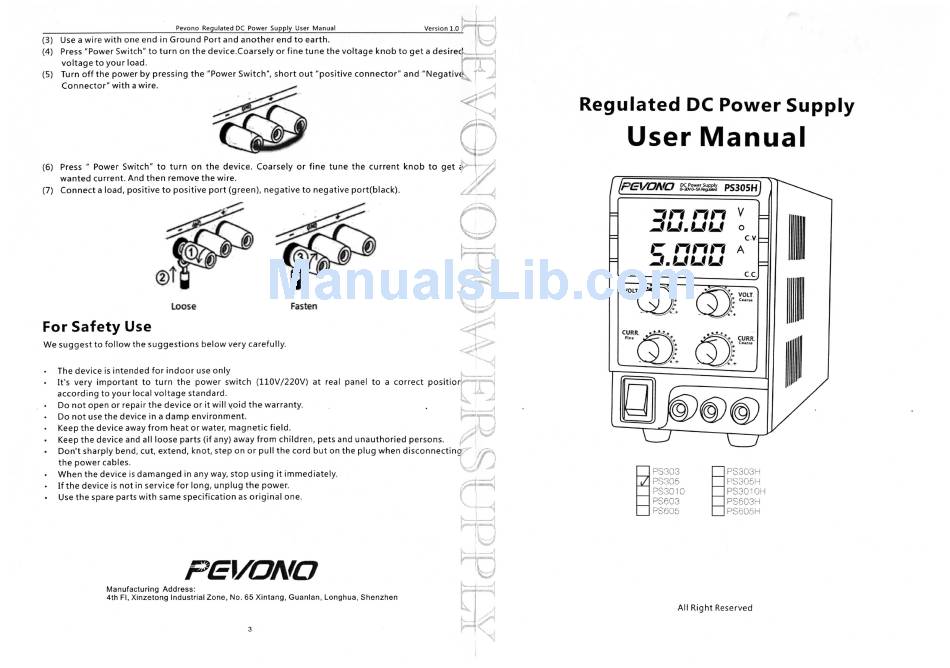

Pevono Regulated DC Power Supply User Manual
version i.0
(3} Use a wire with one end in Ground Port and another end to earth.
(4) Press "Power Switch" to turn on the device.Coarsely or fine tune the voltage knob to get a desirec' :.~,,,
voltage to your load. , ~
(5} Turn off the power by pressing the "Power Switch", short out "positive connector" and "Negativf~ N
Connector" with a wire.

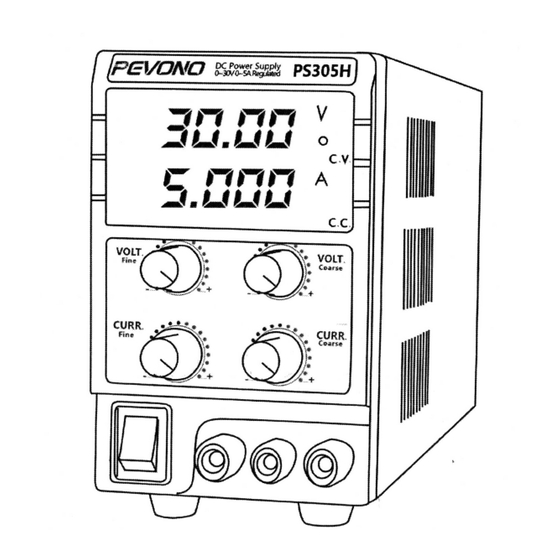

Regulated DC Power Supply
User Manual
(6) Press "Power Switch" to turn on the device. Coarsely or fine tune the current knob to get ~~
wanted current. And then remove the wire.
(7) Connect a load, positive to positive port (green), negative to negative port black).
~oo~ e
~~ ~ ~ ~~ ~ Y
~ s ~
~~ ~~
~~~ ~ ~~ ~~
c.v
c.c.
VOLT'
For Safety Use
We suggest to follow the suggestions below very carefully_
The device is intended for indoor use only
It's very important to turn the power switch (110VJ220V) at real panel to a correct
according to your local voltage standard.
Do not open or repair the device or it will void the warranty.
Do not use the device in a damp environment.
Keep the device away from heat or water, magnetic field.
Keep the device and all loose parts (if any) away from children, pets and unauthoried persons.
Don`t sharply bend, cut, extend, knotr step on or pull the cord but on the plug when disconnecting''
the power cables.
When the device is damanged in any way, stop using it immediately.
If the device is not in service far long, unplug the power.
Use the spare parts with same specification as original one.
~-'Cl/O/1~0
Manufacturing Address:
4th FI, Xinzetong Industrial Zone, No. 65 Xintang, Guanlan, Longhua ; Shenzhen
3
VOLT.
toars=
:t
All Right Reserved
\~
