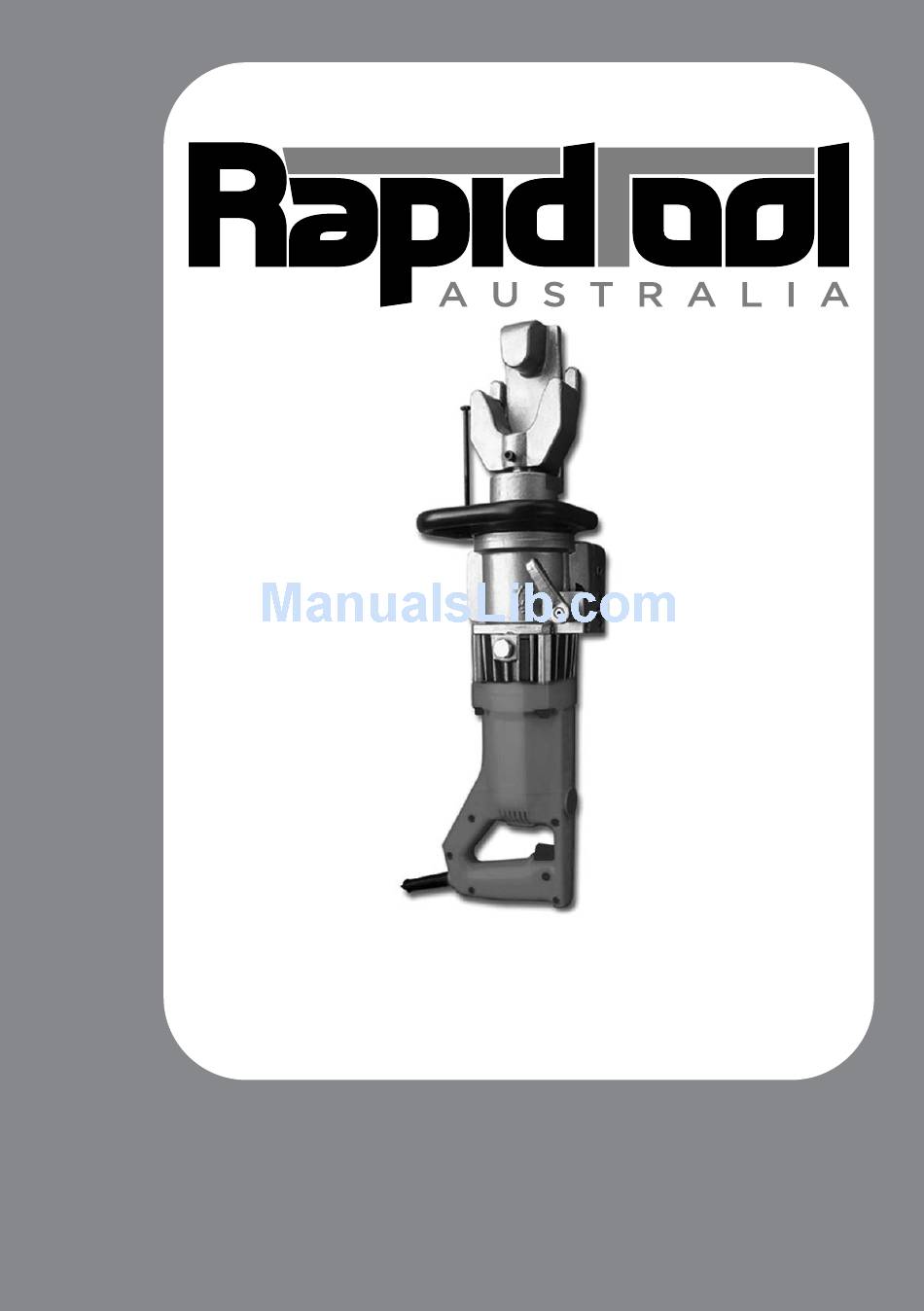

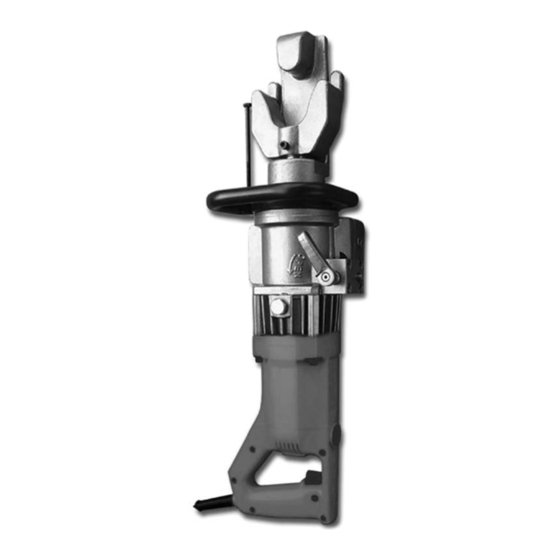

- Page 1 User’s Guide REO-MECH RB-16 Electric Rebar Bender...
- Page 2 WARNING: PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THIS MACHINE Machine is not rated and should not be used for commercial rebar production purposes. 1. Safety This machine is a high performance, electric tool. Failure to follow safety instructions may result in serious injury.
- Page 3 Machine Specifications MODEL RB-16 220-240V AC ~50Hz or 110-120V AC ~60Hz * Input Voltage -Single Phase 850W (220-240V) Power Consumption 1000W (110-120V) Net Weight 15kg Dimensions (cm) 60L x 17W x 20H Bending Range 4-16mm** * Check machine label to determine correct power supply. **Refer to machine model data sheet for maximum tensile strength/grade.
- Page 4 3. Operating Machine Pre-use Checks: 1. Check oil level (refer to Maintenance section). 2. Check condition of bend module and tightness of bend module bolt (refer to Maintenance section). 3. Check power supply is properly earthed. 4. Check that power cord is undamaged and plug is not loose (also applies for extension leads). Warm Up: In cold weather, warm up unit for 60 seconds to ensure hydraulic oil reaches proper viscosity.
- Page 5 Oil Change: Change oil at least once a year or sooner if it appears dirty. 1. Unplug machine from power source. 2. Turn unit over so oil plug is uppermost (if machine is hot allow to cool down first). 3. Remove oil plug and seal washer (never remove when machine is hot). 4.
- Page 6 RAPID TOOL AUSTRALIA Leading distributor of specialist construction tools & equipment www.rapidtool.com.au...
