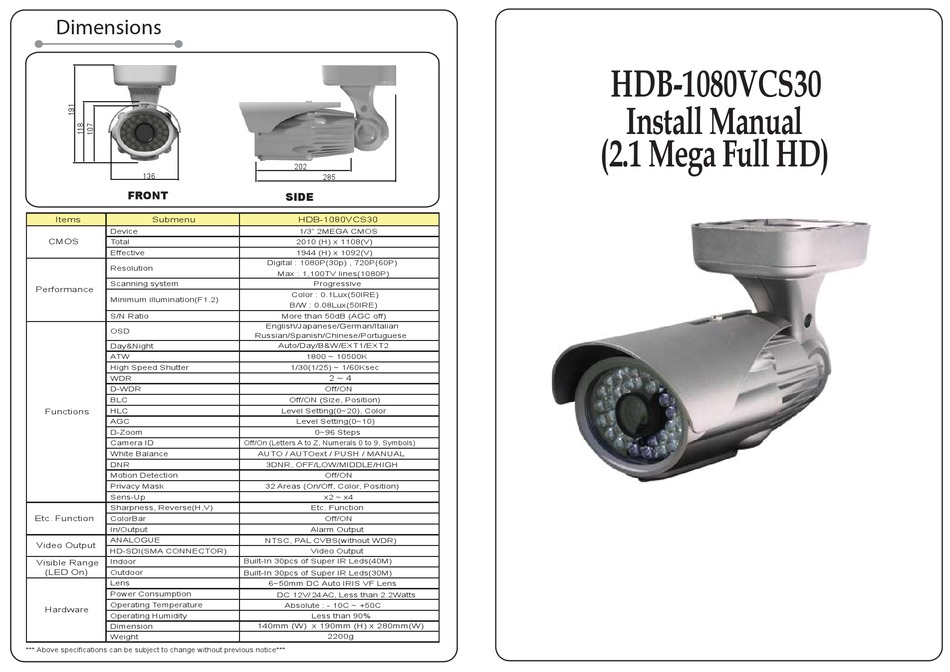

Suho Technology HDB-1080VCS30 Install Manual

Dimensions
DIMENSION
136
FRONT
Items Submenu
D e v c i e
CMOS
Total
Effective
Resolution
Scanning system
Performance
Minimum illumination(F1.2)
S/N Ratio
OSD
Day&Night
ATW
High Speed Shutter
WDR
D-WDR
B L C
HLC
Functions
AGC
D-Zoom
Camera ID
White Balance
DNR
Motion Detection
Privacy Mask
Sens-Up
Sharpness, Reverse(H,V)
Etc. Function
ColorBar
In/Output
ANALOGUE
Video Output
HD-SDI(SMA CONNECTOR)
Indoor
Visible Range
(LED On)
Outdoor
Lens
Power Consumption
Operating Temperature
Hardware
Operating Humidity
Dimension
Weight
*** Above specifications can be subject to change without previous notice***
202
285
SIDE
HDB-1080VCS30
1 / 3 " 2 M E G A C M O S
2010 (H) x 1108(V)
1944 (H) x 1092(V)
Digital : 1080P(30p) , 720P(60P)
Max : 1,100TV lines(1080P)
Progressive
Color : 0.1Lux(50IRE)
B/W : 0.08Lux(50IRE)
More than 50dB (AGC off)
English/Japanese/German/Italian
Russian/Spanish/Chinese/Portuguese
Auto/Day/B&W/EXT1/EXT2
1800 ~ 10500K
1/30(1/25) ~ 1/60Ksec
2 ~ 4
Off/ON
O f / f O N ( S z i e , P o s t i o i n )
Level Setting(0~20), Color
Level Setting(0~10)
0~96 Steps
Off/On (Letters A to Z, Numerals 0 to 9, Symbols)
AUTO / AUTOext / PUSH / MANUAL
3DNR, OFF/LOW/MIDDLE/HIGH
Off/ON
32 Areas (On/Off, Color, Position)
x2 ~ x4
Etc. Function
Off/ON
Alarm Output
NTSC, PAL CVBS(without WDR)
Video Output
Built-In 30pcs of Super IR Leds(40M)
Built-In 30pcs of Super IR Leds(30M)
6~50mm DC Auto IRIS VF Lens
DC 12V/ 24 AC, Less than 2.2Watts
Absolute : - 10C ~ +50C
Less than 90%
140mm (W) x 190mm (H) x 280mm(W)
2200g
HDB-1080VCS30
Install Manual
(2.1 Mega Full HD)
