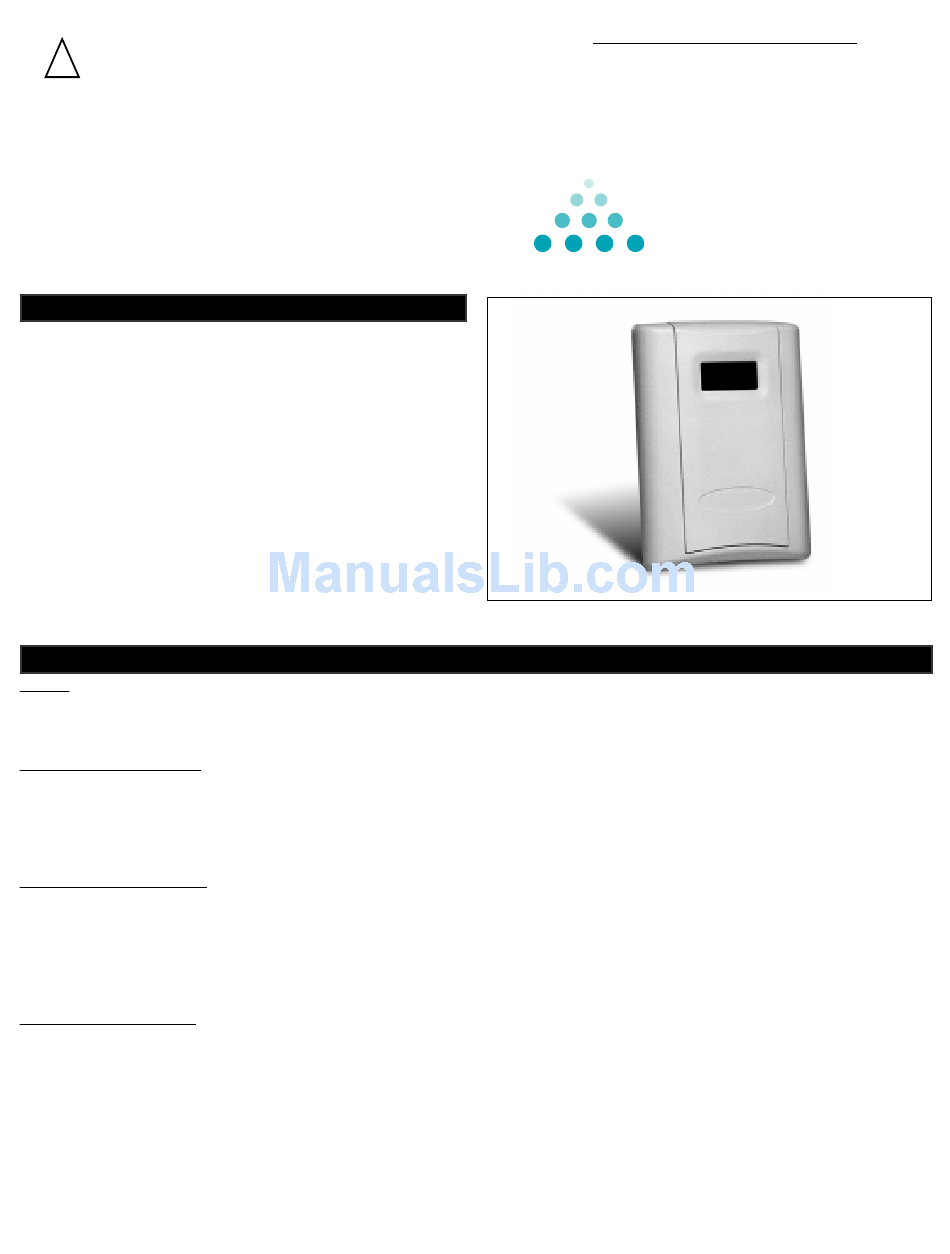

ALTA LABS CX SERIES Installation Instructions

WARNING--REFER SERVICING TO
!
QUALIFIED PERSONNEL ONLY!
• Read instructions thoroughly prior to install
• This product is not intended for life or safety applications
Applications shown are suggested means of installing sensors, but it is
the responsibility of the installer to ensure that the installation is in
compliance with all national and local codes and OSHA requirements.
Installation should be attempted only by individuals familiar with
proper installation techniques and with codes, standards, and proper
safety procedures for control installations.
INTRODUCTION
The CX Series is a non-dispersive infrared analyzer designed for
measuring environmental CO
systems and indoor living spaces. Its measurement range
of 0-2000 or 0-5000 ppm covers the range required to
monitor compliance with ASHRAE or other ventilation
efficiency standards.
The CX Series provides a user-selectable 4-20mA or 0-10VDC
output. An LCD display is available to provide local indication
of CO concentration and facilitate the setup and calibra-
2
tion process. An adjustable setpoint relay is available for
direct control and alarm applications. Microprocessor-
based digital electronics and a unique self-calibration
algorithm improves long-term stability and accuracy.

SPECIFICATIONS

General
Input Voltage .................................................... 20 to 30 VAC/DC;100mA max.
Operating Temperature Range .......................... 0ºC to 50ºC
Analog Output ................................................. 0-5 VDC, 0-10 VDC or 4-20mA; user selectable
CO2 - Carbon Dioxide Sensor
Sensor Type ...................................................... Non-dispersive infrared (NDIR) diffusion sampling
Measurement Range ....................................... 0-2000ppm or 0-5000ppm; user selectable
Accuracy ........................................................... ±75ppm
Repeatability .................................................... ±20ppm
Response Time ................................................. <60 seconds for 90% step change
RH - Relative Humidity Sensor
H2 Sensor ......................................................... Digitally profiled thin-film capacitive (U.S. Patent #5,844,138)
Accuracy ........................................................... ±2%@10-90% RH; 4-point calibration, NIST traceable
Output Options ................................................ ±1%@20ºC (68ºF) annually, for two years
Operating RH Range ....................................... 0 to 100% RH
Temperature Coefficient .................................. ±0.04%RH/ºC over 0 to 60ºC (32 to 140ºF)
Scaling .............................................................. 0 to 100%RH
T - Temperature Transmitter
Sensor Type ...................................................... Semiconductor, integrated circuit
Accuracy ........................................................... ±0.5ºC typical
Resolution ........................................................ 0 to 50ºC=0.1ºC
Ranges .............................................................. 0 to 50ºC (32 to 122ºF); 10 to 35ºC (50 to 95ºF)
P/N #Z102216-0A
concentration in ventilation
2
Installation Instructions
CX SERIES
Environmental CO
Combination CO
ALTA LABS
Sensors for Environmental Control
Sensors
2
/RH/T Sensors
2
