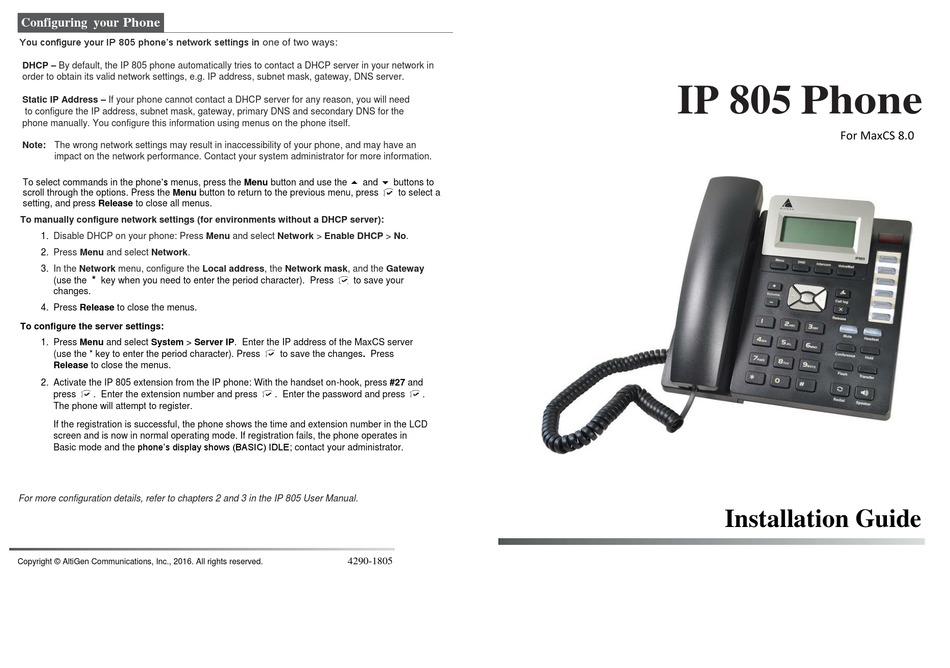

Altigen IP 805 Installation Manual

Configuring your Phone
You configure your IP 805 phone's network settings in one of two ways:
DHCP – By default, the IP 805 phone automatically tries to contact a DHCP server in your network in
order to obtain its valid network settings, e.g. IP address, subnet mask, gateway, DNS server.
Static IP Address – If your phone cannot contact a DHCP server for any reason, you will need
to configure the IP address, subnet mask, gateway, primary DNS and secondary DNS for the
phone manually. You configure this information using menus on the phone itself.
Note: The wrong network settings may result in inaccessibility of your phone, and may have an
impact on the network performance. Contact your system administrator for more information.
To select commands in the phone's menus, press the Menu button and use the
scroll through the options. Press the Menu button to return to the previous menu, press
setting, and press Release to close all menus.
To manually configure network settings (for environments without a DHCP server):
1. Disable DHCP on your phone: Press Menu and select Network > Enable DHCP > No.
2. Press Menu and select Network.
3. In the Network menu, configure the Local address, the Network mask, and the Gateway
*
(use the key when you need to enter the period character). Press
changes.
4. Press Release to close the menus.
To configure the server settings:
1. Press Menu and select System > Server IP. Enter the IP address of the MaxCS server
(use the * key to enter the period character). Press
Release to close the menus.
2. Activate the IP 805 extension from the IP phone: With the handset on-hook, press #27 and
press . Enter the extension number and press
The phone will attempt to register.
If the registration is successful, the phone shows the time and extension number in the LCD
screen and is now in normal operating mode. If registration fails, the phone operates in
Basic mode and the phone's display shows (BASIC) IDLE; contact your administrator.
For more configuration details, refer to chapters 2 and 3 in the IP 805 User Manual.
Copyright © AltiGen Communications, Inc., 2016. All rights reserved.
 
and buttons to
to select a
to save your
to save the changes. Press
. Enter the password and press .
4290-1805
IP 805 Phone
For MaxCS 8.0

Installation Guide
