Summary of Contents for RFM XG2510HE

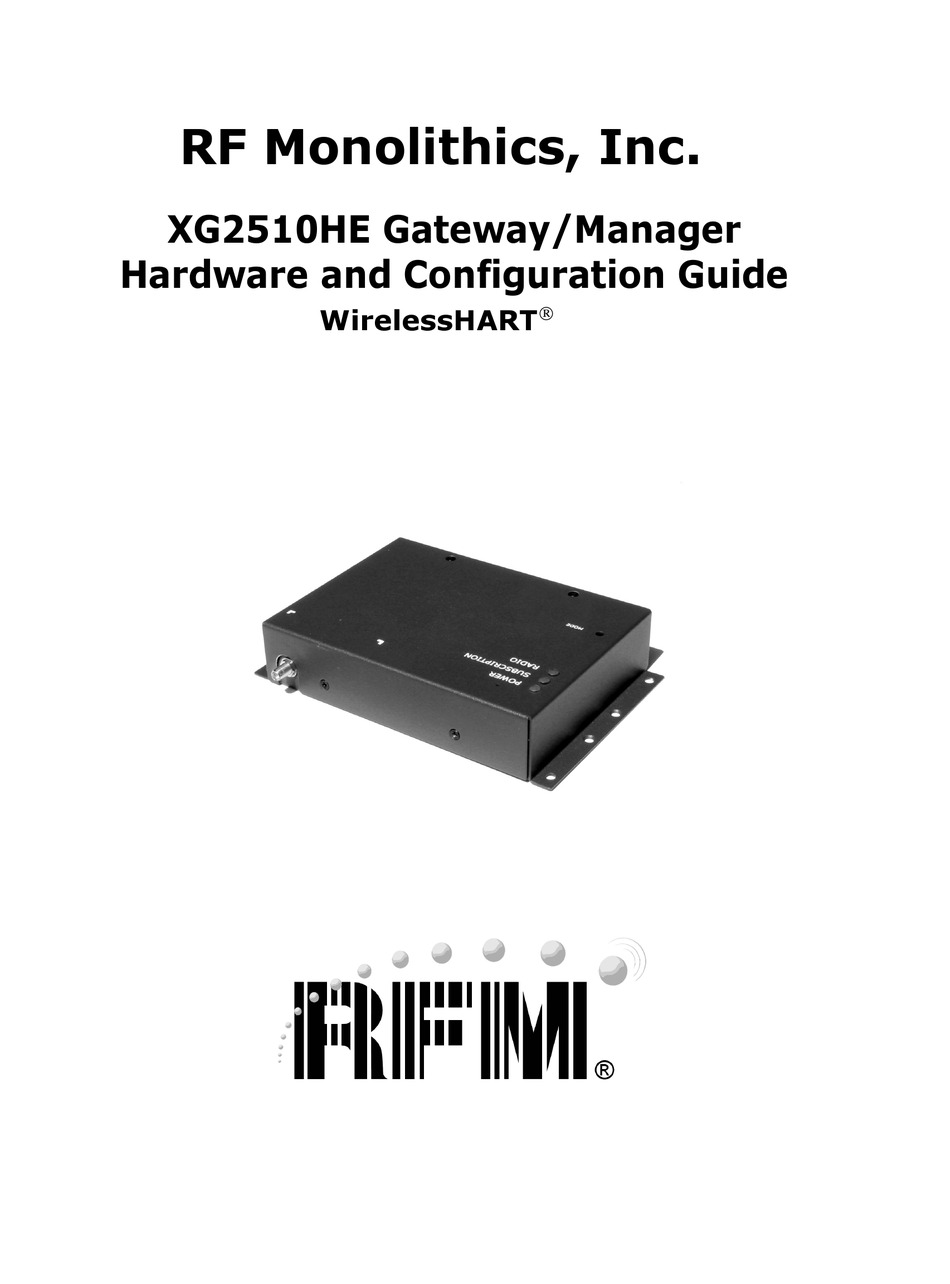

- Page 1 RF Monolithics, Inc. XG2510HE Gateway/Manager Hardware and Configuration Guide WirelessHART...
- Page 2 XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
-
Page 3: Table Of Contents
............iii Conventions Used ............... iii 1 Introduction What is a SmartMesh Network? .........1 SmartMesh Network Features ..........2 XG2510HE Gateway/Manager’s Role ........2 XG2510HE Packing List ............3 XG2510HE Overview ............3 10/100Base-T Ethernet Interface ...........4 Serial 1 Interface ..............5 Serial 2 Interface ..............6... - Page 4 ABLE OF ONTENTS 3 Installing the XG2510HE Ports Used by the XG2510HE ........... 11 Connecting the XG2510HE Directly to a Computer ..12 Installing the XG2510HE on a LAN ........13 A Configuring Serial 1 Operation Configuring the Serial 1 Interface ........
-
Page 5: About This Guide
XG2510HE WirelessHART gateway/network manager The guide also includes specifications and configuration information. Related Documents This guide is a part of a documentation suite for the XG2510HE gateway/manager. The following documents contain additional information to support software and firmware development for use with an XG2510HE gateway/manager: •... - Page 6 BOUT UIDE XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
-
Page 7: Introduction
In combination, these products provide carrier class data reliability, low latency, and deterministic power management that is required for the industrial automation market. The XG2510HE acts as both as a gateway and network manager for up to 250 XDM2510H modules (motes), creating a self-configuring, reliable wireless mesh network. -
Page 8: Smartmesh Network Features
The XDM2510E gateway/manager provides configuration, management and gateway functionality for a network of XDM2510H transceiver modules. At its core, the XG2510HE utilizes a SmartMesh IA-510 embedded manager, which includes a wireless transceiver, processor and memory, embedded networking software, and multiple interfaces to host systems, including PPP and Ethernet. -
Page 9: Xg2510He Packing List
XG2510HE Packing List 1 - I HAPTER NTRODUCTION XG2510HE Packing List The components shipped with the XG2510HE gateway/manager are listed in Table 1. Table 1 Packing List for the XG2510HE Manager Component Amount Description XG2510HE Controls and monitors the network. -
Page 10: 10/100Base-T Ethernet Interface
Ethernet 10/100Base-T Ethernet IEEE 802.3 10/100Base-T Note: The Ethernet interface must be connected before the XG2510HE is powered on in order for Linux to recognize the Ethernet port. XML-RPC API The XML-RPC API is an open Extensible Markup Language (XML) interface that lets a client application send Remote Procedure Call (RPC) requests to the gateway/ manager and receive responses and other data from the manager via XML-RPC. -
Page 11: Serial 1 Interface
NTRODUCTION Serial 1 Interface The Serial 1 interface (RJ45 connector) provides programmatic access for configuration, management, and data access to the XG2510HE. The interface can be used for one of two functions: • To access the manager using Point-to-Point Protocol (PPP) •... -
Page 12: Serial 2 Interface
(CLI) through RS232. The CLI can be used to set the configuration of the Serial 1 interface and for troubleshooting with the assistance of RFM techincal support. Appendix A provides instructions on using the CLI to set the Serial 1 configuration. -
Page 13: Specifications
Specifications This chapter provides specifications, mechanical drawings and certification information for the XG2510HE gateway/manager. Detailed Radio Specifications Table 7 XG2510HE Radio Specifications Parameter Units Comments Operating frequency 2.4000 2.4835 Number of channels Channel separation Occupied channel At -20 dBc bandwidth... -
Page 14: Antenna Specifications
2 - S Antenna Specifications HAPTER PECIFICATIONS Antenna Specifications The antenna provided on the XG2510HE gateway/manager meets the specifications in Table 8. For optimum performance, position the antenna vertically when gateway/ manager is installed. Table 8 XG2510HE Antenna Specifications Parameter... -
Page 15: Mechanical Drawings
Mechanical Drawings 2 - S HAPTER PECIFICATIONS Mechanical Drawings Figure 7 Dimensions of the XG2510HE Manager XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE... -
Page 16: Regulatory And Standards Compliance
Regulatory and Standards Compliance Installation and Operation The antenna used for the XG2510HE transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. -
Page 17: Installing The Xg2510He
XDM2510H Development Kit, refer to the XDM2510H Module Integration Guide. Note: The XG2510HE is not recommended for outdoor use because the enclosure is not weatherproof. Exposing the XG2510HE to moisture may cause permanent damage. Ports Used by the XG2510HE The transmission control protocol (TCP) ports listed in Table 10 must be open to allow the Admin Toolset utilities to connect to the XG2510HE gateway/manager. -
Page 18: Connecting The Xg2510He Directly To A Computer
NSTALLING THE Connecting the XG2510HE to a Computer The XG2510HE is preconfigured with the static IP address 192.168.99.100 for direct connection to a computer. You will temporarily set the computer IP address to a static IP address that enables the computer to communicate with the manager. The computer needs to have Windows Internet Explorer 7 (or later) or Firefox 2.0 (or later) -
Page 19: Installing The Xg2510He On A Lan
DHCP to obtain a LAN-assigned IP address, or assign a static LAN IP address to the XG2510HE. If you want to use a static LAN IP address, you will need to obtain this address from the LAN administrator. - Page 20 3 - I XG2510HE Installing the XG2510HE on a LAN HAPTER NSTALLING THE Establish a HyperTerminal connection to the gateway/manager using the following settings: • Bits per second: 115200 • Data bits: • Parity: None • Stop bits: • Flow control:...
- Page 21 Installing the XG2510HE on a LAN 3 - I XG2510HE HAPTER NSTALLING THE Note: If the gateway/manager is configured to use DHCP, it must always have an Ethernet connection to the LAN when it is powered on or reset or it will not receive a LAN IP address from the DHCP server.
- Page 22 3 - I XG2510HE Installing the XG2510HE on a LAN HAPTER NSTALLING THE XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
-
Page 23: A Configuring Serial 1 Operation
Operation The Serial 1 interface on manager can be used for a PPP, gateway/manager serial API, gateway/manager CLI, or Linux shell connection. Refer to the XG2510HE Gateway/ Manager Serial API Guide for information on how to log into these processes. - Page 24 If you are setting up a PPP connection, enter the local and remote PPP IP addresses. Note: By default, the IP address of the manager over the PPP connection is 192.168.101.10 (local IP address), and the client PC's PPP IP address is 192.168.101.11 (remote IP address). XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
- Page 25 Note: By default, the IP address of the manager over the PPP connection is 192.168.101.10 (local IP address), and the client PC's PPP IP address is 192.168.101.11 (remote IP address). To log out, enter: logout XG2510HE M ANAGER ARDWARE AND ONFIGURATION...
- Page 26 A - C Configuring the Serial 1 Interface PPENDIX ONFIGURING ERIAL PERATION XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
- Page 27 RJ45 Pinout 9-pin D-SUB Pinout Signal Description Signal Description TX out of manager Not connected RTS out of manager RX into manager Not connected CTS into manager Data Set Ready Not connected Not connected XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
- Page 28 B - A D-SUB A PPENDIX SSEMBLING A DAPTER FOR ERIAL XG2510HE M ANAGER ARDWARE AND ONFIGURATION UIDE...
- Page 29 20 seconds, and then release. The gateway/manager’s factory default settings are restored. Note: If the XG2510HE is configured for redundancy, you need to repeat step 1 after the gateway/manager restarts in order to fully restore the default settings. XG2510HE M...
- Page 30 PPENDIX ESTORING ACTORY EFAULT ETTINGS To view the default settings, follow these steps to log onto the Admin Toolset utility on the XG2510HE: Open Internet Explorer Firefox In the browser’s address box, enter the default manager IP address, 192.168.99.100. https://192.168.99.100 If navigation to the site is blocked due to a certificate error, click to continue on to the Web site (the Web site is safe).
- Page 31 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Murata XG2510HE...
