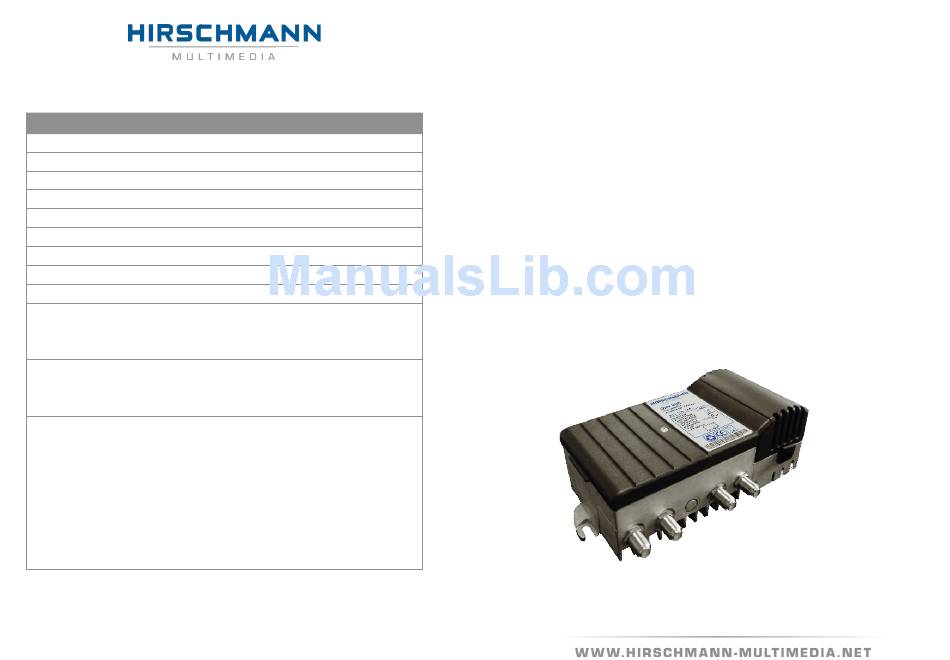

Hirschmann GHV 520 Installation Instructions Manual

DESCRIPTION VALUE
Type GHV 520
Frequency range 47-1006
Amplification 21
Attenuation (1/1,5dB-in increments), input
Flatness ± 1
Noise
Reflection attenuation(40MHz, -1.5dB/Octave) > 18
Measurement point
Maximum outlet level
CSO, >60dB 101
CTB, >60dB 104
HF Connectors (75Ω)
HF inlet, measurement point F-connector, female
HF outlet, measurement point F-connector, female
General
Dimensions w x h x d 170 x 65 x 100
Power supply 190—264 / 50...60 V~/Hz
Power consumption
Operating temperature
Safety class
Housing type
Weight 650
UNIT
MHz
dB
0 < > 15 dB
dB
< 7 (typ. 5) dB
dB
-20 dB
dBµV
dBµV
mm
< 3 W
-25 < > +55 °C
II Class
20 IP
g
GHV 520
The GHV 520 is a home amplifier with a low noise level. This amplifier is mainly in-
tended for small to medium-sized CAI systems in homes. The GHV 520 has a modular
design.
▪ Suitable for 1 GHz technology.
▪ Amplification forward 21 dB.
▪ In steps of 1dB (GHV 520) adjustable attenuation using rotating switch.
▪ Equipped with F-connector connections.
▪ 20dB measurement points for the inlet and outlet (not to be used for connection of
distributors, taps or wall sockets).
▪ ESD secured.
▪ Low electricity consumption.
