Summary of Contents for B-Air 2820 CFM

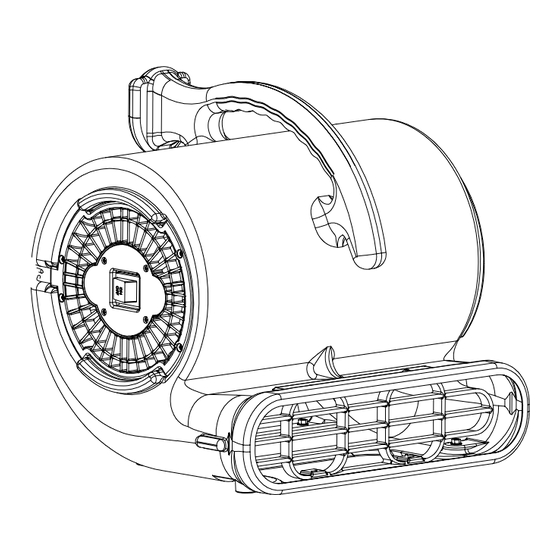

- Page 1 "Your company Instruction name here" Manual READ AND SAVE THESE INSTRUCTIONS 1/2 HP | 2820 CFM OPERATION SAFETY SERVICE WARRANTY CONTACT SPECIFICATIONS TROUBLE-SHOOTING “Your company address here”...
-
Page 2: Table Of Contents
“Your company name here” Table Of Contents Important Safety Instructions Motor Specifications & Electrical Requirements Grounding Instructions Introduction Product Features Unpacking & Checking Of Contents Operating Instructions Maintenance Cleaning User Servicing Instructions Lubrication Storage & Transportation Servicing Limited Warranty Parts List Specifications Troubleshooting Warranty Registration... -
Page 3: Important Safety Instructions
“Your company name here” ATTENTION! Read all safety rules carefully before attempting to operate the “Your com- pany name here”. Please retain this manual for future reference. NEVER operate this unit when flammable materials or vapors are present _ electrical devices produce arcs or sparks which may cause a fire or an explosion. -
Page 4: Motor Specifications & Electrical Requirements
“Your company name here” Motor Specifications & Electrical Requirements This “Your company name here” has a 2-speed, 115-volt, 60 Hz induction motor with a grounding conductor. Thermally protected, it will automatically shut down if overheated. The motor will re- start automatically once cooled, for as long as it is plugged into a power source. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. -
Page 5: Introduction
“Your company name here” Introduction Designed to move large volumes of air, the “Your company name here” can be used for drying wet carpet, furniture and floors and may also be used for ventilation. Product Features The “Your company name here” is perfect for use in commercial plumbing and janitorial projects. -
Page 6: Unpacking & Checking Of Contents
“Your company name here” Unpacking & Checking Of Contents Unpack your “Your company name here” carefully and inspect if all parts are intact. If any of the parts are missing or damaged, please call 800-242-1378. Operating Instructions This “Your company name here” requires NO ASSEMBLY. The “Your company name here” is packaged and ready to be put to work. -
Page 7: Lubrication
“Your company name here” Lubrication NO LUBRICATION IS NECESSARY. The motor is equipped with lifetime lubricated bearings. Storage & Transportation 1. Before storing your air mover, it should be cleaned. 2. Wrap the power cord around the carry handle on top of the unit to keep it untangled. 3. -
Page 8: Parts List
“Your company name here” Parts List 1. Housing -------------------------- ------------- X1 2. Motor -------------------------- ------------- X1 3. Capacitor ------------------------ ------------- X1 4. Fan ------------------------------ ------------- X1 5. Air Intake Grill (M) --------------- ------------- X1 6. Switch Cover -------------------- ------------- X1 7. -
Page 9: Specifications
“Your company name here” SPECIFICATIONS Motor 1/2 HP Amps L 2.8 / H 4.5 AMPS Speeds 2 / Positions 2: 0º, 45º, 90º Certification C-ETL-US Stackable 5 units Voltage 115V Cycle 60Hz Max Static Pressure 2.5” Weight Net 25 Lbs (28 Lbs with box) Size (LxWxH) 22.5”... -
Page 10: Troubleshooting
“Your company name here” TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit Not Running a) Switch is OFF a) Turn Switch On b) No Power b) Plug Unit In; Check Circuit Breaker c) Bad Outlet c) Check Outlet/Change To Another Outlet d) Faulty Switch d) Replace Switch* e) Faulty or Broken e) Use Volt/Amp Meter... -
Page 11: Warranty Registration
B-AIR.COM “Your company name here” Thank y f y r p chase. Warranty Registration Warranty Registration ONLINE Please fill out and submit your warranty form at: www.b-air.com/register BY MAIL BY MAIL Please complete, mail or fax your product registration card. - Page 12 “Your company name here” B-AIR.COM “Your company address here” 550 South Ayon Ave. Azusa, CA 91702 1-877-800-BAIR (2247) Fax: (626) 385-3307 Email: info@b-air.com Website: www.b-air.com SENDER AFFIX ADDRESS STAMP HERE HERE MAIL TO “Your company address here” B-Air Warranty Registration...
