Benjie BJ-M23 User Manual

Benjie BJ-M23 User Manual

8 gb professional digital recorder

Advertisement

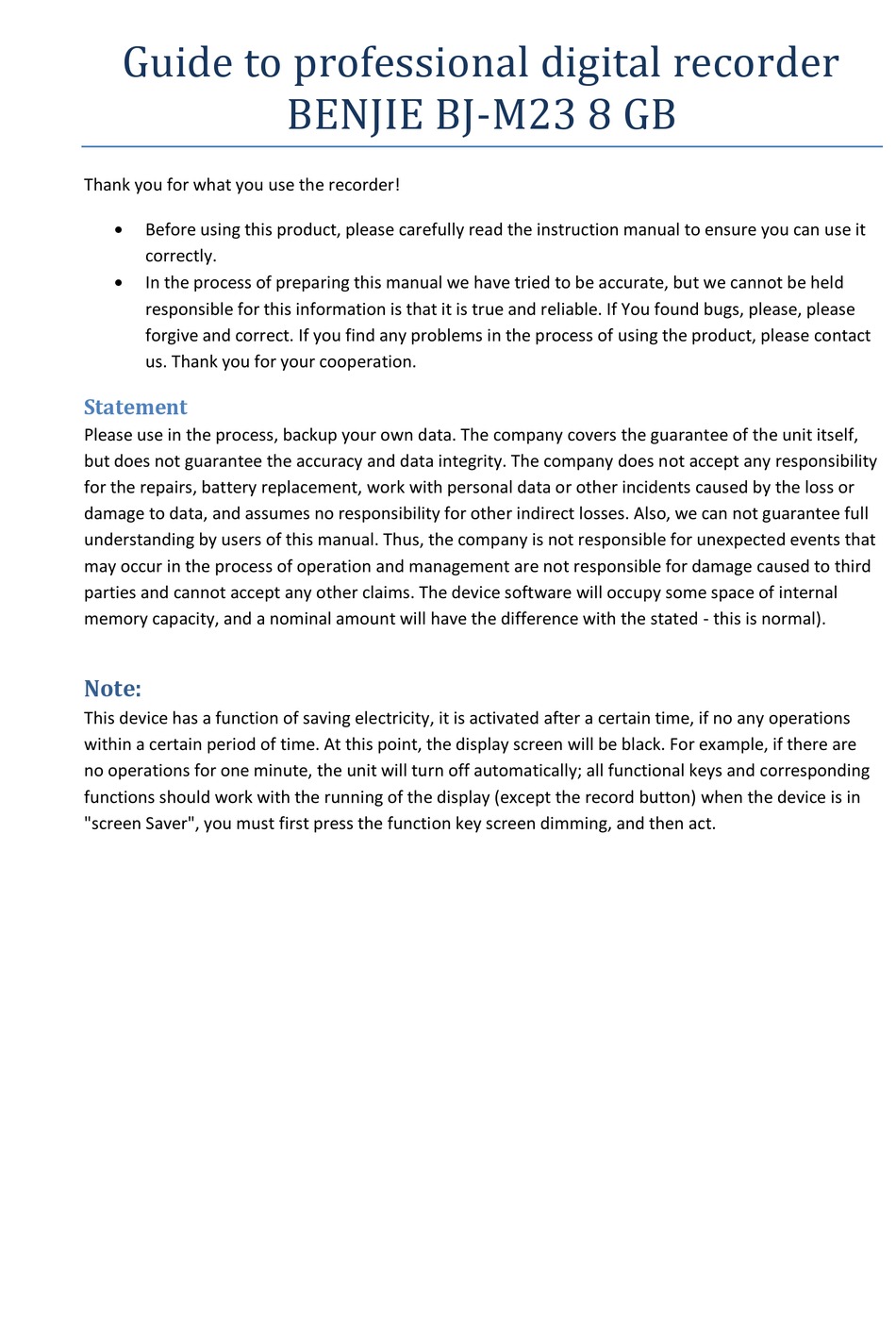

Guide to professional digital recorder
Thank you for what you use the recorder!
Before using this product, please carefully read the instruction manual to ensure you can use it
correctly.
In the process of preparing this manual we have tried to be accurate, but we cannot be held
responsible for this information is that it is true and reliable. If You found bugs, please, please
forgive and correct. If you find any problems in the process of using the product, please contact
us. Thank you for your cooperation.
Statement
Please use in the process, backup your own data. The company covers the guarantee of the unit itself,
but does not guarantee the accuracy and data integrity. The company does not accept any responsibility
for the repairs, battery replacement, work with personal data or other incidents caused by the loss or
damage to data, and assumes no responsibility for other indirect losses. Also, we can not guarantee full
understanding by users of this manual. Thus, the company is not responsible for unexpected events that
may occur in the process of operation and management are not responsible for damage caused to third
parties and cannot accept any other claims. The device software will occupy some space of internal
memory capacity, and a nominal amount will have the difference with the stated - this is normal).
Note:
This device has a function of saving electricity, it is activated after a certain time, if no any operations
within a certain period of time. At this point, the display screen will be black. For example, if there are
no operations for one minute, the unit will turn off automatically; all functional keys and corresponding
functions should work with the running of the display (except the record button) when the device is in
"screen Saver", you must first press the function key screen dimming, and then act.
BENJIE BJ-M23 8 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BJ-M23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Benjie BJ-M23

  • Page 1 Guide to professional digital recorder BENJIE BJ-M23 8 GB Thank you for what you use the recorder!  Before using this product, please carefully read the instruction manual to ensure you can use it correctly.  In the process of preparing this manual we have tried to be accurate, but we cannot be held responsible for this information is that it is true and reliable.
  • Page 2 1. USB interface: date transfer / charging. 2. Next key: short time pressing - next track, Long time pressing - fast forward. 3. (+): volume up. 4. (-): volume down. 5. Prev key: short time pressing - last track, long time pressing - fast back. 6.
  • Page 3: File Delete

    Power On / Power Off Slide the power switch to the "On" position and the device will automatically boot. If the power switch for a long time is in the "On" position, then boot the device long press the "Play" button. In the loaded state, press and hold the "Play"...
  • Page 4: Monitor Settings

    2) Repeat Frequency In playback state, press "M" button to enter the setup mode playing, press the "Previous / Next" (Next / Previous) to select the repeat options, and then select the "Repeat frequency" ("repetition"), then click "Play" to confirm, then press "+" or "-" to adjust the number of repeats. Snooze can be set between 1- 10.
  • Page 5 Off on time Select settings menu off Timer and press "Play" button to log in. Select "Off" to deactivate this function. Select "On" and no matter what time you took from 1 to 99, the device will be forced off when it reaches the off time.
  • Page 6 LCD: OLED 128*64 USB interface: USB2.0 HIGH SPEED Memory: 8 GB (extended memory) Battery: built-in 260mA \ h Li-battery OS: Window98 or above SIN: 88DB Distortion: 0.05% Recording format: MP3/WAV Recording quality: WAV: 512 - 1536 KBPS (PCM format), MP3: (32 64 128 kbps) Earphone output: stereo earphone, 32 Ohm, frequency: 20HZ-20KH Music format: MP3/WMA/WAV/APE or FLAC Using temperature: 5 degree - 40 degree.
