Summary of Contents for qpcom QP-UB1284

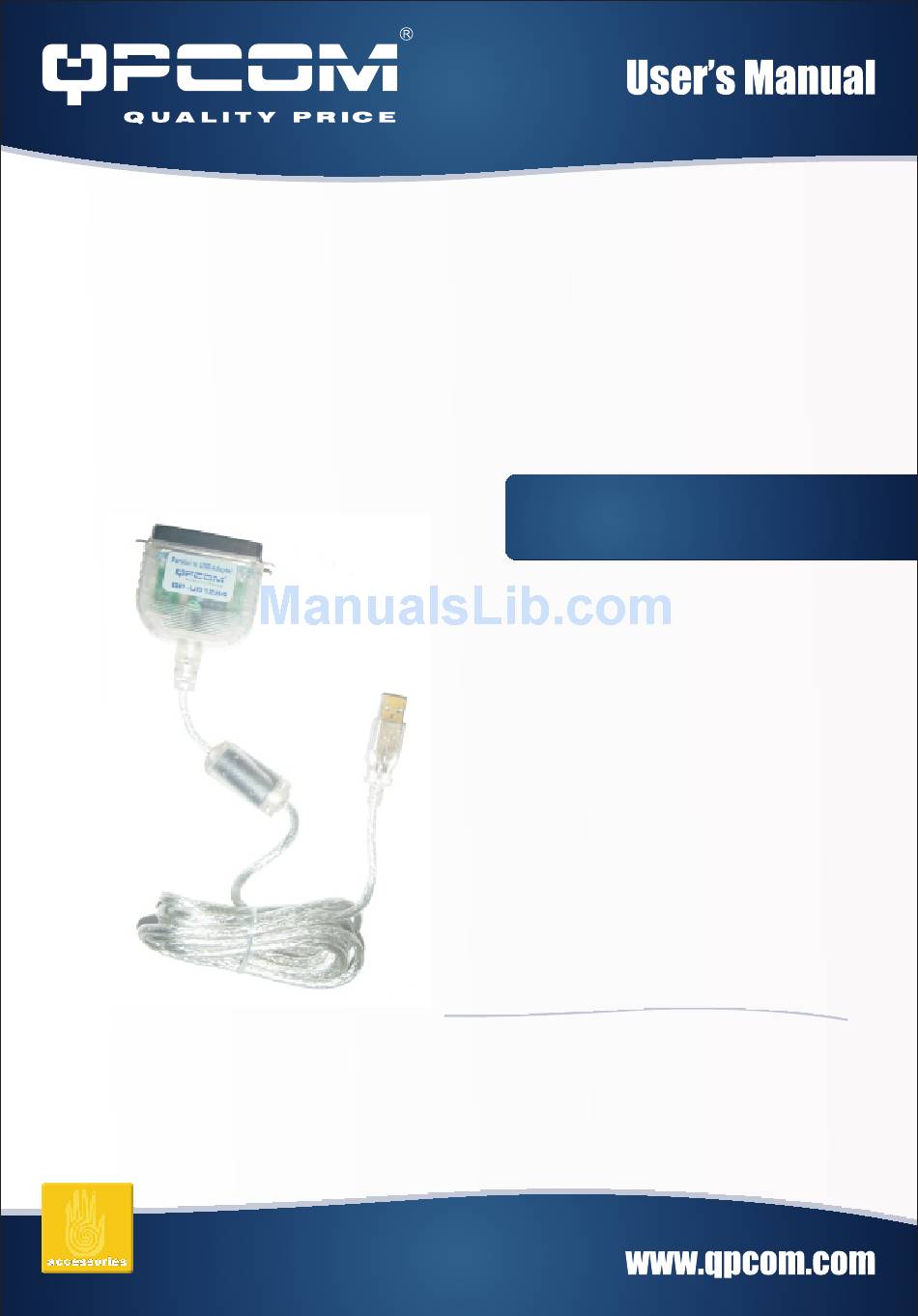

- Page 1 QP-UB1284 USB to Parallel Bi-Directional Cable...
-
Page 2: Safety Instructions
Safety Instructions Always read the safety instructions carefully. - Keep this User’s Manual for future reference. - Keep this equipment away from humidity. - If any of the following situation arises, get the equipment chec- ked by a service technician: - Then equipment has been exposed to moisture. - Page 3 Overview The USB to Parallel Bi-Directional Cable allows your PC to print to most parallel printer devices connected trough the USB port. Just plug the USB connector of the cable into the USB port of your PC and the other end into the Centronics connector of the parallel printer and it’s ready to use.
- Page 4 System Requirements - Intel-compatible 486DX-66 MHz CPU or higher. - One standard USB Port. - Windows 2000, XP and Vista. Setting Up the Printer Device Follow the steps below to confi gure your printer to the USB to Parallel Bi-Directional Cable for communication with your com- puter.
- Page 5 For a New Printer 1. If you do not have a printer installed yet, click on Start> Set- tings> Printers (and Faxes)> Add a printer. The Add Printer Wizard will start and assist you in installing a new printer device. Follow the on-screen prompts to proceed.
- Page 6 Specifi cations Items Descriptions PC Interface USB 1.1 compliant A type male connector Parallel Connector IEEE 1284 bi-directional DB25/36 female connector Specifi cation Support USB Printer Class Specifi - cation 1.0 compliant IEEE-1284 1994 (bi-direc- tional parallel interface) Specifi cation compliant Buffer Size Unifi...
- Page 7 Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause indesired operation.
